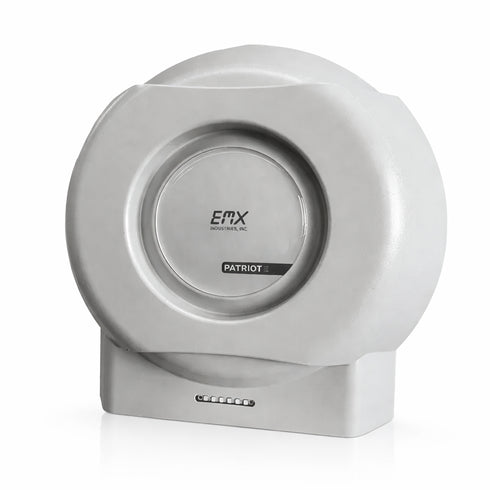

PATRIOT-E Series RFID Readers Patriot M E L SR
The Patriot Series RFID readers deliver reliable long range and short range identification for access control and industrial automation environments. Designed to support multiple communication protocols and flexible voltage inputs, these readers ensure consistent performance in perimeter security, building access, and process control applications. Backed by proven engineering and seamless integration options, this solution fits commercial and industrial security needs with confidence and scalability.
- Long and short range options for access and perimeter control
- Supports Wiegand RS232 RS485 and OSDP communication
- Frequency hopping UHF operation for stable performance
- Wide input voltage range for flexible installations
- Ideal for industrial commercial and high security sites
Offers wide read range options from 1’ to 25’, suitable for diverse access control needs from short-range to long-range applications.
Supports multiple communication protocols including Wiegand, RS232, RS485, and OSDP, with optional TCP/IP and Wi-Fi for advanced integrations.
Utilizes frequency hopping spread spectrum (902–928 MHz) technology for enhanced signal reliability and reduced interference.
Compatible with multiple Wiegand bit formats, enabling flexible integration into existing systems.
Includes LED indicators and relays for visual feedback and status signaling during operation.
Accommodates variable input voltages from 12VDC to 48VDC, ensuring compatibility with a range of power infrastructures.
Features a compact Patriot SR model with a short read range of 1’–7’, ideal for building access and process control environments.
Designed for perimeter security and industrial applications, offering durability and high-performance RFID technology.
Supports 26-bit Wiegand format in Patriot SR for streamlined access control system compatibility.
Equipped with relay outputs in select models to support access control automation and signal triggering.
Built for value and performance with models tailored for basic to advanced access control requirements.
Available in multiple reader configurations (M, E, L, SR), providing scalable options for project-specific needs.
Backed by EMX Industries, ensuring quality and support following the acquisition of TRES.
Designed and manufactured in the USA, supporting high-quality standards and regional service capabilities.
| MODEL NAME | Patriot M |
| READ RANGE | 16’ - 20’ |
| COMMUNICATION PROTOCOLS | Wiegand or RS232 |
| WIEGAND FORMAT | Supports Multiple Wiegand Bit Formats |
| LED INDICATOR | Yes |
| INPUT VOLTAGE | 12 to 48VDC |
| FREQUENCY | 902-928MHz Frequency Hopping |
Patriot Series RFID Readers from EMX Industries (formerly TRES) deliver reliable and scalable access control for a wide range of environments—from gated entries to commercial facilities. These high-performance RFID readers offer flexible communication options including Wiegand, RS232, RS485, OSDP, and optional TCP/IP and Wi-Fi connectivity, catering to both basic and advanced installations.
Engineered for Performance and Integration
The Patriot M, E, L, and SR series are designed to meet varying range and protocol needs. Each model supports multiple Wiegand bit formats, features frequency hopping within the 902–928 MHz band, and operates on a variable 12 to 48VDC input. LED indicators and optional relays provide real-time status feedback, enhancing usability and diagnostics for installers and technicians.
- Patriot M: 16’–20’ read range, Wiegand/RS232
- Patriot E: 18’–25’ read range, Wiegand, RS232, RS485, OSDP, optional TCP/IP and Wi-Fi
- Patriot L: 18’–25’ read range, Wiegand, RS232, optional RS485, OSDP, TCP/IP, Wi-Fi
- Patriot SR: 1’–7’ short-range, 26-bit Wiegand, compact for perimeter and industrial applications
Scalable Access Solutions for Diverse Applications
With flexible installation options and support for advanced protocols, Patriot Series readers are ideal for secure access to commercial buildings, gated communities, industrial sites, and more. Their robust design and frequency hopping technology ensure dependable operation in high-interference environments.
- Commercial and industrial facilities
- Gated entries and parking structures
- Perimeter security and internal access points
Professionals seeking advanced RFID-based access control solutions will find the Patriot Series from EMX Industries to be a powerful and adaptable choice. Backed by American engineering and industry-proven performance, these readers are now available through trusted USA distributors.
Technical Specifications
- Read Range: 1’ to 25’ (model dependent)
- Communication: Wiegand, RS232, RS485, OSDP, TCP/IP, Wi-Fi (varies by model)
- Input Voltage: 12–48VDC (SR model: 12–24VDC)
- Frequency: 902–928 MHz (frequency hopping)
- Indicators: LED and relay outputs
- Wiegand Bit Format: Multiple supported
- Short-range and long-range models available
Related products
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: Access Control
VENDOR: EMX

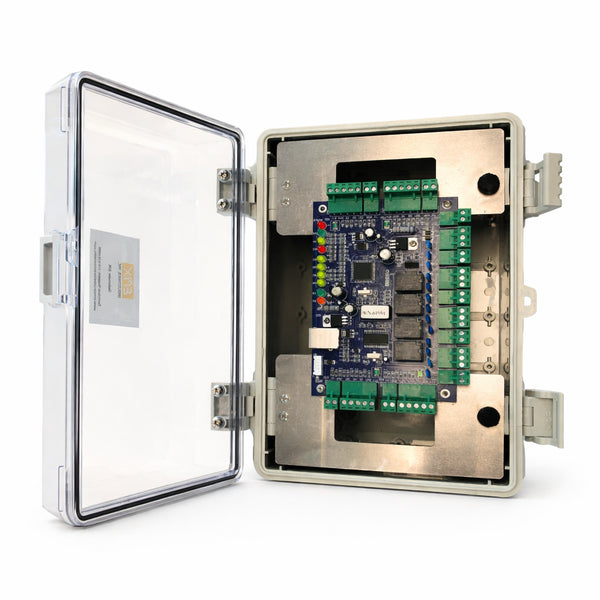

Defender 400 B K Quad Relay Access Controller delivers reliable access management for vehicle and pedestrian gates in commercial and secured facilities. The controller supports four readers and controls up to four doors or gates while maintaining stable TCP IP...
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: Access Control
VENDOR: EMX

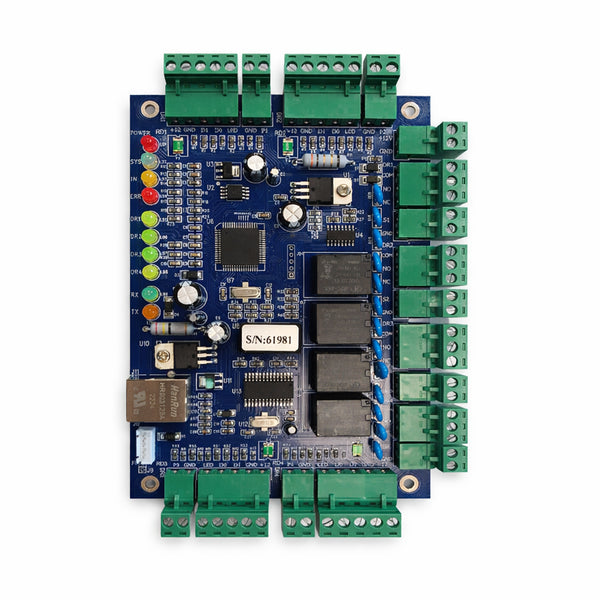

Defender 400 is a quad relay access controller designed for secure management of multiple doors or gates within commercial and industrial facilities. It supports large user databases, real time communication, and reliable operation in both online and offline environments. The...
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: RFID Access
VENDOR: EMX

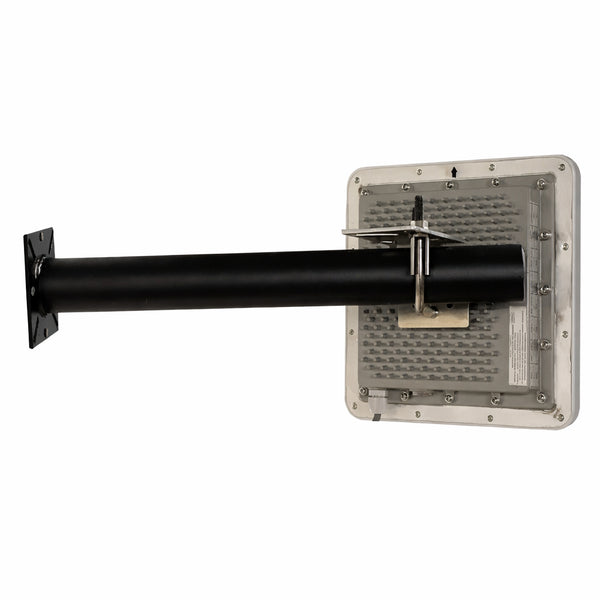

The TRES RFID WCM0218 B wall or ceiling mount bracket is designed to provide secure and reliable positioning for RFID reader installations in controlled access environments. Built from durable steel and finished with a protective black powder coating, this mount...
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: RFID Access
VENDOR: EMX

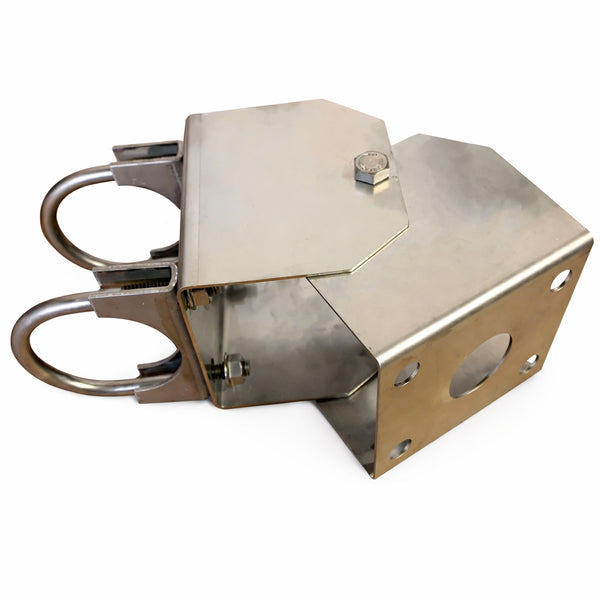

The TRES RFID SS SWIVEL mounting bracket provides a durable and adjustable solution for installing long range RFID readers on poles or structural supports. Built from corrosion resistant stainless steel, this swivel mount allows precise angle adjustment for optimal tag...
