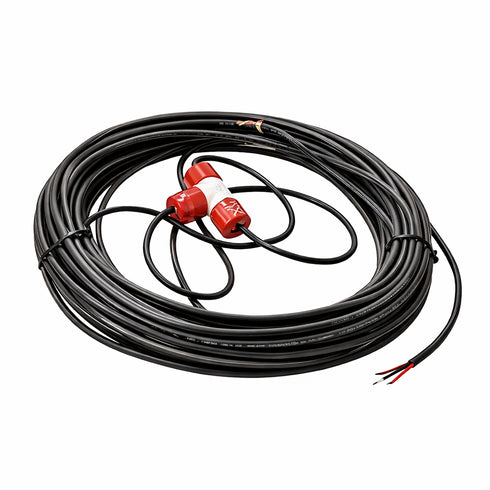

EMX-2926-1 PR-26-50 Lite Preformed Loop 2ft x 6ft with 50ft Lead
This lightweight preformed loop is a ready to use solution designed for dependable vehicle detection performance. Built with rugged thermoplastic elastomer tubing and stranded conductors, it delivers flexibility and durability across demanding installations. The loop supports saw cut, tar, and concrete applications while maintaining consistent signal integrity. Integrated lightning protection helps safeguard connected equipment. A long twisted lead in wire simplifies routing and reduces installation time for professional access control and parking systems.
- Ready to use preformed loop for vehicle detection systems
- Flexible thermoplastic elastomer tubing for durability
- Suitable for saw cut tar and concrete installations
- Integrated lightning protection for added reliability
- Includes 50 foot twisted and jacketed lead in wire
Ready-to-use lightweight preformed loop compatible with all EMX vehicle loop detectors for easy installation.
Constructed with stranded wire conductors and XLP thermoplastic elastomer insulation for enhanced durability.
Encased in rugged, flexible nonmetallic TPE tubing with a 0.26" overall diameter for long-term performance.
Equipped with 50 feet of twisted and jacketed lead-in wire, providing extended reach to connection points.
Built-in electronic lightning protection ensures reliable operation in outdoor environments.
Designed for multiple loop sizes including 4' x 4', 3' x 5', and 2' x 6' configurations to suit various installation needs.
Ideal for saw cut, tar, and concrete installations, offering versatile application options.
Weather-resistant construction supports outdoor use in a range of environmental conditions.
Flexible tubing allows for easy handling and smooth placement during the setup process.
Backed by a 2-year limited manufacturer warranty for added peace of mind and product support.
| MODEL NAME | EMX 2926-1 PR-26-50 Lite Preformed Loop - 2' x 6' w/ 50' Lead |
| LOOP SIZES AVAILABLE | 4' x 4' | 3' x 5' | 2' x 6' |
| LEAD LENGTH | 50' |
| INSTALLATION TYPE | Saw cut, tar, and concrete installation |
| COMPATIBILITY | Works with all EMX vehicle loop detectors |
| LIGHTNING PROTECTION | Built-in electronic lightning protection |
| OUTER SHELL MATERIAL | Flexible nonmetallic tubing |
| TUBING DIAMETER | 0.26" |
| WIRE TYPE | Stranded wire conductors with XLP thermoplastic elastomer insulation |
| JACKET MATERIAL | Thermoplastic elastomer (TPE) |
| LEAD-IN WIRE | 50 feet of twisted and jacketed wire |
| FLEXIBILITY | Rugged and flexible tubing |
| APPLICATION | Vehicle detection loop installations |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
EMX 2926-1 PR-26-50 Lite Preformed Loop from Alfa Iris offers a dependable and easy-to-install vehicle detection solution for a variety of applications. Featuring a 2' x 6' preformed loop with a 50' lead-in, it ensures optimal sensitivity and performance with all EMX vehicle loop detectors. This lightweight loop is engineered with rugged materials and built-in electronic lightning protection for long-lasting use.
Reliable Design for Diverse Installations
Constructed with stranded wire conductors and insulated with XLP thermoplastic elastomer jacketing, the PR-loop is flexible and robust for saw cut, tar, and concrete installations. The outer shell's 0.26" overall diameter provides added durability without sacrificing flexibility, ensuring straightforward setup even in demanding environments.
- 2' x 6' preformed loop with 50' lead-in
- Compatible with all EMX vehicle loop detectors
- Rugged and flexible TPE tubing
- Built-in electronic lightning protection
- Suitable for saw cut, tar, and concrete applications
- 2-Year Limited Manufacturer Warranty
Versatile and Field-Ready
The PR-26-50 Lite preformed loop is ideal for integration into vehicle access systems at gated entries, drive-thrus, parking lots, and more. Its lightweight construction simplifies handling, while the 50' twisted and jacketed lead-in wire ensures a clean and reliable connection to the detector. Installers benefit from a consistent, plug-and-play experience.
- Drive-thru detection systems
- Parking lot vehicle access
- Gated community entry points
- Commercial traffic control solutions
Technical Specifications
- Model: EMX 2926-1 PR-26-50 Lite
- Loop Dimensions: 2' x 6'
- Lead Length: 50'
- Outer Diameter: 0.26"
- Tubing Material: Rugged TPE
- Installation: Saw cut, tar, concrete
- Protection: Built-in electronic lightning protection
- Warranty: 2-Year Limited Manufacturer Warranty
