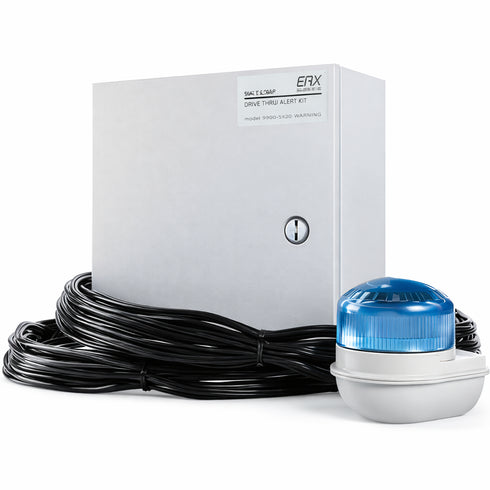

EMX-2801-1 DAK-2ULTMVP Dual Zone Drive Thru Alert Kit
The 2801 1 DAK 2ULTMVP Dual Zone Drive Thru Alert Kit delivers reliable dual zone vehicle detection with both visual and audible alerts for busy service lanes. Designed for drive thru restaurants, financial institutions, and car wash facilities, this complete system includes two preformed induction loops, dual multi voltage vehicle detectors, and a programmable LED beacon sounder. The enclosure comes pre wired with transformer and terminal blocks for simplified installation using standard 120 VAC power. Adjustable sensitivity levels, multiple frequency settings, and Detect On Stop technology ensure accurate detection while minimizing false triggers from cross traffic.
- Complete dual zone vehicle detection alert system
- Includes two induction loops and loop detectors
- Programmable LED beacon with adjustable audio tones
- Detect On Stop feature reduces false alerts
- Pre wired enclosure for simplified installation
Complete dual-zone drive-thru alert kit designed to detect vehicles and notify staff with both audio and visual signals.
Includes two induction loop sensors, two ULT-MVP vehicle detectors, and an LED beacon with sounder for a fully integrated solution.
Pre-wired enclosure with transformer and components factory-installed, reducing installation time and complexity.
Automatically adjusts from 12 VDC up to 240 VAC, allowing flexible multi-voltage compatibility for various site requirements.
ULTRAMETER™ display provides real-time sensitivity guidance with 10 adjustable levels for precise vehicle detection.
Four selectable frequency settings help prevent crosstalk in multi-loop or tight installation environments.
Exclusive DETECT-ON-STOP™ (DOS®) feature activates detection only after a vehicle comes to a complete stop, minimizing false alerts from cross traffic.
PR-46-100 preformed loops feature rugged thermoplastic rubber construction with built-in lightning protection for reliable outdoor performance.
LED beacon offers three alert channels with simulated strobe, steady light, and up to 64 selectable tones with adjustable volume from 65–105 dBa.
Dual SPDT relay outputs provide vehicle presence indication and configurable loop fault, pulse, or stop-detection signaling.
Engineered for extreme environments with operating temperatures from -40°C to 82°C for dependable year-round operation.
Made in the USA and backed by a 2-year limited manufacturer warranty for long-term reliability and support.
| MODEL NAME | EMX 2801-1 DAK-2ULTMVP Dual Zone Drive-Thru Alert Kit |
| MANUFACTURER | EMX Industries |
| MPN | 2801-1 |
| SKU | EMX-2801-1 |
| SYSTEM TYPE | Dual-Zone Drive-Thru Vehicle Detection & Alert Kit |
| APPLICATION | Drive-thru lanes, fast food restaurants, banks, car washes |
| DETECTION ZONES | 2 Independent Detection Zones |
| KIT CONFIGURATION | Complete Ready-to-Install System |
| ENCLOSURE TYPE | Pre-wired Junction Box with Mounted Components |
| INPUT POWER | 120 VAC (Incoming Power to Panel) |
| TRANSFORMER | Pre-installed Inside Enclosure |
| LOOP DETECTORS INCLUDED | 2 ULT-MVP Vehicle Detectors |
| LOOPS INCLUDED | 2 PR-46-100 Preformed Induction Loops |
| ALERT DEVICE INCLUDED | SLM500B LED Beacon & Sounder |
| PRE-PROGRAMMED | Detectors and LED Beacon Factory Programmed |
| DETECTOR MODEL | ULT-MVP Multi-Voltage Vehicle Detector |
| DETECTOR VOLTAGE RANGE DC | 12 – 60 VDC (Max 0.8 VA) |
| DETECTOR VOLTAGE RANGE AC | 12 – 240 VAC (48–62 Hz) (Max 1.4 VA) |
| SENSITIVITY LEVELS | 10 Levels (0–9) |
| DISPLAY TYPE | ULTRAMETER™ Sensitivity Display (0–9) |
| FREQUENCY SETTINGS | 4 (Low, Med-Low, Med-High, High) |
| LOOP INDUCTANCE RANGE | 20 – 2000 µH (Q Factor > 5) |
| AUTOMATIC TUNING | Yes (On Power-Up & Frequency Count) |
| ENVIRONMENTAL TRACKING | Automatic Compensation |
| SURGE PROTECTION | Loop Circuit Surge Suppressors |
| PRESENCE RELAY | SPDT (Form C) |
| OUTPUT B RELAY | SPDT (Form C) |
| CONTACT RATING DC | 2A @ 30VDC (Resistive) |
| CONTACT RATING AC | 0.5A @ 125VAC (Resistive) |
| POWER / LOOP FAULT INDICATOR | Green LED |
| DETECT / FREQUENCY INDICATOR | Red LED |
| DETECT-ON-STOP (DOS®) | Vehicle Must Stop Minimum 1 Second |
| AUTOMATIC SENSITIVITY BOOST (ASB) | Prevents Dropout from High-Bed Vehicles |
| OPERATING CURRENT | 20mA Standby / 50mA Detect |
| OPERATING TEMPERATURE (DETECTOR) | -40°C to 82°C (-40°F to 180°F) |
| HUMIDITY RANGE | 0 – 95% Relative Humidity |
| DETECTOR DIMENSIONS | 73mm x 38mm x 78mm (2.9" x 1.2" x 3.1") |
| DETECTOR HOUSING | ABS Plastic, IP30 |
| CONNECTION TYPE | 11-Pin Male Socket Mount (JEDEC B11-88) |
| LOOP MODEL | PR-46-100 |
| LOOP DIMENSIONS | 4 ft x 6 ft |
| LOOP LEAD-IN LENGTH | 100 ft Twisted Pair (PVC Jacket) |
| LOOP WIRE DIAMETER | 0.26" Overall Diameter |
| LOOP OPERATING TEMPERATURE | -22°C to 90°C (-8°F to 194°F) |
| LOOP APPROVALS | UL TC, PLTC, FPL or NPLF 300/600V Direct Burial |
| BEACON MODEL | SLM500B |
| BEACON VOLTAGE | 12–24 VAC/DC |
| FLASH RATE | 85 Flashes per Minute (+/-10) |
| ALERT CHANNELS | 3 Selectable Channels |
| CHANNEL 1 | Simulated Strobe (Triple Flash) |
| CHANNEL 2 | Simulated Strobe + Tone 1 (32 Options) |
| CHANNEL 3 | Steady Light + Tone 2 (32 Options) |
| TOTAL TONE OPTIONS | 64 Unique Tones |
| SOUND LEVEL | 65 – 105 dBa Adjustable |
| MAX OPERATING CURRENT (BEACON) | 460 mA @ 24 VAC/DC |
| BEACON ENCLOSURE RATING | Polycarbonate, Type 3R, IP65 |
| LIGHT SOURCE | 50,000 Hour LED |
| BEACON OPERATING TEMPERATURE | -30°C to 50°C (-22°F to 122°F) |
| CERTIFICATIONS | CE, cUL Listed |
| COUNTRY OF MANUFACTURE | Made in USA |
| WARRANTY | 2 Year Limited Manufacturer Warranty |
EMX 2801-1 DAK-2ULTMVP Dual Zone Drive-Thru Alert Kit is a complete, ready-to-install vehicle detection and notification system designed for drive-thru applications requiring dual-zone coverage. Engineered and Made in the USA, this all-in-one kit provides both audio and visual alerts when a vehicle enters the detection area, making it ideal for fast-food restaurants, banks, pharmacies, and car wash facilities. The system includes two induction loops, two ULT-MVP vehicle detectors, and an LED strobe/sounder prewired inside a professional enclosure for simplified installation.
Complete Dual-Zone Detection with Advanced Vehicle Sensing
The DAK-2ULTMVP kit features two ULT-MVP multi-voltage vehicle detectors mounted and prewired inside a junction box with transformer included. The detectors automatically adjust from 12 VDC up to 240 VAC, making them compatible with virtually any installation. The ULTRAMETER™ display provides real-time sensitivity feedback, while ten sensitivity levels and four frequency settings allow precise tuning and prevention of crosstalk in multi-loop applications. Exclusive DETECT-ON-STOP™ (DOS®) technology ensures alerts activate only when a vehicle comes to a complete stop, eliminating false triggers from passing traffic.
- Includes 2 ULT-MVP vehicle loop detectors (preprogrammed)
- Dual-zone detection for accurate vehicle presence monitoring
- Automatic voltage adjustment (12 VDC – 240 VAC)
- 10 sensitivity settings with ULTRAMETER™ diagnostic display
- DETECT-ON-STOP™ technology ignores cross traffic
- Two relay outputs: presence and auxiliary/fault indication
Heavy-Duty Preformed Loops for Reliable Performance
The kit includes two PR-46-100 preformed induction loops, each with a 100-foot lead-in wire. Constructed from rugged 0.26" thermoplastic rubber tubing, these loops are suitable for saw-cut, concrete, tar, and direct burial installations. Built-in lightning protection and wide inductance compatibility ensure dependable long-term operation in demanding environments.
- 4' x 6' loop dimensions
- 100' twisted lead-in wire (PVC jacketed)
- Direct burial rated (UL TC, PLTC, FPL or NPLF)
- Operating temperature: -8°F to 194°F
High-Visibility LED Beacon with Adjustable Audible Alerts
The included SLM500B LED beacon and sounder provides three distinct alert channels for customizable notification. Channel 1 delivers a simulated triple-flash strobe. Channel 2 adds one of 32 selectable tones, while Channel 3 provides steady illumination with a second unique tone option — offering up to 64 total tone combinations. Adjustable volume from 65 to 105 dBa ensures optimal audibility in busy commercial environments.
- Simulated strobe and steady light modes
- 64 selectable tone combinations
- Adjustable volume (65–105 dBa)
- 12–24 VAC/DC operation
- IP65 polycarbonate enclosure
- 50,000-hour LED lifespan
Ideal Applications
- Fast-food and quick-service restaurant drive-thru lanes
- Bank and pharmacy drive-thru systems
- Car wash vehicle alert systems
- Any commercial site requiring dual-zone vehicle detection
The EMX 2801-1 DAK-2ULTMVP Dual Zone Drive-Thru Alert Kit delivers a professional-grade, preassembled solution for reliable vehicle detection and staff notification. With advanced loop detection technology, customizable alert options, and durable components, this system ensures accurate performance and simplified installation for demanding drive-thru environments.
Technical Specifications
- Model: 2801-1 (DAK-2ULTMVP)
- Detection Zones: Dual loop configuration
- Detector Voltage: 12–60 VDC / 12–240 VAC
- Sensitivity: 10 levels (0–9)
- Frequency Settings: 4 (low to high)
- Loop Inductance: 20–2000 µH
- Relay Outputs: 2 SPDT (Form C)
- Operating Temperature (Detector): -40°F to 180°F
- Beacon Voltage: 12–24 VAC/DC
- Beacon Enclosure: IP65 rated polycarbonate
- Warranty: 2-Year Limited Manufacturer Warranty
- Country of Origin: USA
