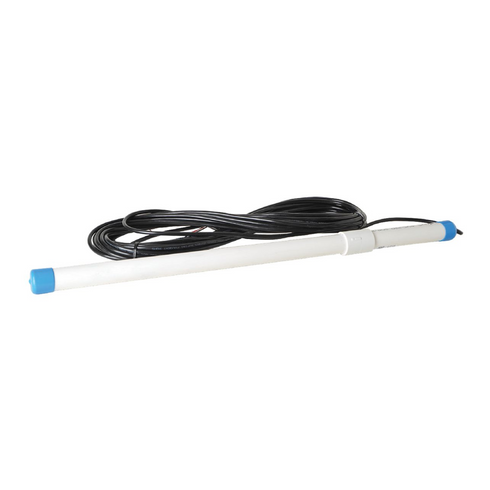

EMX 2810-1 VMD202-5-100 Probe Vehicle Motion Detector with 100 Foot Lead
The EMX 2810-1 VMD 202-5-100 probe vehicle motion detector is a single piece underground sensing solution designed for reliable driveway and vehicle detection. A slim probe design allows discreet direct burial installation while maintaining watertight protection. Sensitivity is easily programmed and stored in non volatile memory to prevent loss during power failure. Wide voltage compatibility and extremely low standby current make it ideal for solar or low power security applications in residential or commercial environments.:contentReference[oaicite:0]{index=0}
- 100 foot direct burial probe cable for flexible installation
- Watertight probe and cable suitable for underground placement
- Non volatile memory retains sensitivity settings during power loss
- Wide power input range supports AC or DC systems
- Ultra low standby current ideal for solar powered setups
You Save: $999.84 (84%)
Includes a 100' lead, offering ample length for flexible installation in diverse driveway setups.
Designed as a single-piece motion detector with integrated probe and electronics for streamlined deployment.
Probe assembly and cable are watertight and direct burial compatible, ensuring long-lasting underground use.
Features 10 adjustable sensitivity settings, programmable via the optional VMD202-R remote for tailored detection.
Stores configuration in non-volatile memory to retain settings even during power loss.
Supports a wide input voltage range of 12-39 VDC or 12-27 VAC, compatible with varied power systems.
Consumes minimal power with only 70 µA standby current, ideal for solar-powered installations.
Operates reliably in extreme temperatures from -30°C to 70°C (-22°F to 158°F) and up to 95% relative humidity.
Equipped with a Form C (SPDT) relay rated at 1 A@24 VDC or 1 A@120 VAC for versatile signal integration.
Constructed with durable ABS plastic (VMD202-R) and PVC (probe) materials for extended service life.
Compact VMD202-R dimensions (3.0 x 0.9 x 2.75 in) and slender 24" probe for discreet underground installation.
5-wire probe cable supports direct burial, enhancing installation efficiency and environmental resilience.
Optional VMD202-R remote enables quick installation and fine-tuning, reusable for multiple detector setups.
Engineered for vehicle motion detection in residential and commercial driveway monitoring applications.
Covered by a 2-year limited manufacturer warranty, providing assurance of product reliability and support.
| MODEL NAME | EMX 2810-1 VMD202-5-100 Probe Vehicle Motion Detector - 100' Lead |
| LEAD LENGTH | 100' |
| PROBE ASSEMBLY | Water tight and direct burial compatible |
| MEMORY TYPE | Non-volatile memory retains settings after power failure |
| POWER INPUT RANGE | 12-39 VDC or 12-27 VAC |
| STANDBY CURRENT | 70 µA |
| ACTIVATED CURRENT | 25 mA |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
| RELAY TYPE | Form C (SPDT) |
| RELAY CAPACITY | 1 A@24 VDC, 1 A@120 VAC |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| HUMIDITY RANGE | 0 to 95% relative humidity |
| MATERIAL (REMOTE) | ABS Plastic |
| MATERIAL (PROBE) | PVC |
| DIMENSIONS (REMOTE) | 3.0 x 0.9 x 2.75 in |
| DIMENSIONS (PROBE) | 1 x 24 in |
| PROBE CABLE | 5 wire direct burial |
| SENSITIVITY SETTINGS | 10 levels programmable via optional VMD202-R remote |
| REMOTE OPTION | Optional VMD202-R for installation and sensitivity tuning |
| REMOTE USAGE | Reusable across multiple installations |
| APPLICATION | Vehicle motion detection for driveways |
| DESIGN TYPE | Slim, single-piece buried design |
| SOLAR COMPATIBLE | Yes, due to low standby current |
EMX 2810-1 VMD202-5-100 Probe Vehicle Motion Detector from Alfa Iris is a high-performance detection solution engineered for reliable vehicle motion sensing. Featuring a 100-foot lead and a compact, water-tight probe assembly, it is ideal for direct burial applications in residential and commercial driveways. Designed to operate with minimal power consumption, this unit excels in solar-powered setups and is protected against memory loss in case of outages.
Precision Detection in Rugged Conditions
The VMD202 integrates the sensing probe and electronics into a streamlined, weather-resistant design. With non-volatile memory and ten customizable sensitivity settings using the optional VMD202-R remote, it enables precise tuning and hassle-free installation. This unit handles a wide voltage range and performs reliably in extreme temperatures and humid environments.
- 100' Lead – optimized for extended reach and underground deployment
- Water-tight and direct burial compatible probe and cable assembly
- Non-volatile memory retains settings after power loss
- Accepts 12-39 VDC or 12-27 VAC input for flexible installation
- Low standby current of 70 µA – ideal for solar systems
- 2-Year Limited Manufacturer Warranty
Versatile Installation and Application
The VMD202 is compatible with a wide array of driveway alert and vehicle detection systems. Installers benefit from the removable VMD202-R remote for repeat use across multiple installations or fixed integration in low-tamper environments. It is a go-to choice for secure entry monitoring in residential, commercial, and industrial sites.
- Residential driveways and private roads
- Commercial gates and access control points
- Solar-powered remote installations
Security professionals and system integrators rely on the EMX VMD202 from Alfa Iris for its durability, accuracy, and adaptability in demanding vehicle detection applications.
Technical Specifications
- Model: EMX 2810-1 VMD202-5-100
- Power Input: 12-39 VDC or 12-27 VAC
- Current Consumption: 70 µA standby, 25 mA activated
- Relay Output: Form C (SPDT) 1 A @ 24 VDC / 120 VAC
- Operating Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity Tolerance: 0 to 95% relative humidity
- Materials: ABS (VMD202-R), PVC (Probe)
- Dimensions: VMD202-R (3.0 x 0.9 x 2.75 in), Probe (1 x 24 in)
- Probe Cable: 5-wire, direct burial rated
