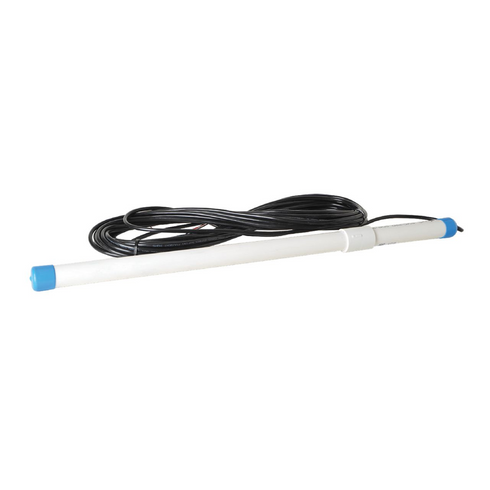

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector with 50 Foot Lead
The EMX 2805-1 VMD202-5-50 probe vehicle motion detector is a single piece buried sensor designed to reliably detect vehicle movement near driveways and controlled access points. Its slim probe houses advanced electronics for accurate motion sensing and stable performance. Sensitivity settings are stored in non volatile memory to prevent data loss during power interruptions. The detector supports a wide input voltage range and ultra low standby current, making it suitable for solar powered and low energy installations in residential and commercial environments.
- Fifty foot direct burial probe cable for flexible installations
- Water tight probe assembly suitable for underground placement
- Wide voltage input support for AC or DC power sources
- Low current consumption ideal for solar powered systems
- Form C relay output for easy system integration
You Save: $999.84 (84%)
Includes a 50' lead for extended installation flexibility across longer driveways or access areas.
Probe assembly and cable are watertight and designed for direct burial, ensuring long-term durability in outdoor environments.
Settings are stored in non-volatile memory, retaining user configurations even after power loss.
Supports a wide power input range of 12-39 VDC or 12-27 VAC, allowing for versatile integration.
Consumes minimal power with only 70 µA standby and 25 mA when activated, ideal for solar-powered setups.
Features a compact, single-piece probe design that simplifies installation near driveways.
Optional VMD202-R remote enables quick programming and fine-tuning of 10 sensitivity levels for optimal performance.
Form C (SPDT) relay provides flexible output connectivity: 1 A@24 VDC or 1 A@120 VAC.
Operates reliably in extreme temperatures ranging from -30°C to 70°C (-22°F to 158°F) with up to 95% humidity tolerance.
Made with durable ABS plastic (VMD202-R) and PVC (probe) materials to withstand harsh conditions.
Probe dimensions: 1 x 24 in; VMD202-R dimensions: 3.0 x 0.9 x 2.75 in — optimized for discreet installation.
5-wire direct burial cable design ensures secure and stable underground connections.
Offers low-maintenance operation and a 2-year limited manufacturer warranty for added peace of mind.
Detects vehicle movement effectively, enhancing security and automation for residential and commercial driveways.
Allows for easy reuse of the VMD202-R remote across multiple installations if tampering is not a concern.
| MODEL NAME | EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead |
| LEAD LENGTH | 50' |
| HOUSING | Slim design, direct burial compatible |
| WATER RESISTANCE | Probe assembly and cable are water tight |
| MEMORY | Non-volatile memory retains settings during power loss |
| POWER SUPPLY | 12-39 VDC or 12-27 VAC |
| CURRENT CONSUMPTION | 70 µA standby / 25 mA activated |
| RELAY TYPE | Form C (SPDT) 1 A@24 VDC, 1 A@120 VAC |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| HUMIDITY RANGE | 0 to 95% relative humidity |
| MATERIAL | ABS Plastic (VMD202-R), PVC (Probe) |
| DIMENSIONS (VMD202-R) | 3.0 x 0.9 x 2.75 in |
| DIMENSIONS (PROBE) | 1 x 24 in |
| PROBE CABLE | 5 wire direct burial |
| INSTALLATION | Buried next to driveway |
| SENSITIVITY SETTINGS | 10 programmable levels using VMD202-R |
| SENSITIVITY CONTROLLER | VMD202-R (optional, removable or installable) |
| APPLICATION | Vehicle motion detection |
| IDEAL FOR | Solar powered systems |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
EMX 2805-1 VMD 202-5-50 Probe Vehicle Motion Detector from Alfa Iris is a highly sensitive and durable solution for detecting vehicle motion. Designed for seamless installation in residential or commercial driveways, the device includes a 50' lead and a waterproof probe assembly compatible with direct burial applications. It is ideal for triggering gate openers or alert systems as vehicles approach.
Advanced Vehicle Detection in a Compact Form
The VMD202 combines the probe and detection electronics in a single slim unit, buried alongside a driveway to detect vehicle movement. Settings are stored in non-volatile memory, ensuring retention after power loss. The optional VMD202-R remote makes sensitivity adjustment and setup quick and precise.
- Integrated probe and electronics for discreet installation
- Non-volatile memory retains settings after power failure
- Optional remote (VMD202-R) for multi-site programming
- Water-tight, direct burial-compatible probe and cable
- Low power consumption suitable for solar-powered systems
Flexible Power and Reliable Performance
Supporting both 12-39 VDC and 12-27 VAC inputs, the VMD202 is compatible with a variety of power systems. Its ultra-low standby current of 70 µA and durable construction make it an excellent choice for off-grid and energy-efficient applications.
- Power Input: 12-39 VDC or 12-27 VAC
- Current: 70 µA standby, 25 mA activated
- Relay: Form C (SPDT), 1 A @ 24 VDC or 120 VAC
- Operating Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity Tolerance: 0 to 95% relative humidity
- Materials: ABS Plastic (VMD202-R), PVC (Probe)
- Dimensions: VMD202-R (3.0 x 0.9 x 2.75 in), Probe (1 x 24 in)
- Probe Cable: 5-wire, direct burial rated
Ideal for access control professionals and system integrators, the EMX 2805-1 VMD202-5-50 delivers reliable motion detection and system compatibility. A trusted choice available through leading USA security and gate automation suppliers.
