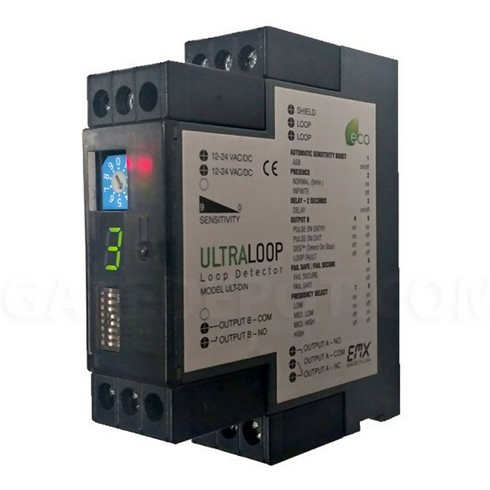

EMX-2600-1 ULTRA-DIN DIN Rail Mount Vehicle Loop Detector
The EMX-2600-1 ULTRA-DIN DIN rail mount vehicle loop detector delivers precise vehicle presence detection in tight access control spaces. Featuring Detect-On-Stop technology, it identifies vehicles only after they fully stop, helping ignore cross traffic. The compact DIN rail design saves enclosure space while offering advanced diagnostics, adjustable sensitivity, and stable operation. Designed for reliability, it supports multiple frequencies, automatic tuning, and low power consumption, making it suitable for gates, parking systems, and industrial automation applications.
- Detect-on-stop technology reduces false triggers from cross traffic
- Compact DIN rail mount fits small control enclosures
- UltraMeter display simplifies sensitivity and interference setup
- Multiple frequencies minimize crosstalk and loop interference
- Low power operation supports energy efficient installations
DIN rail mount vehicle loop detector with compact dimensions (80 x 23 x 84 mm), ideal for tight installation spaces.
Equipped with DETECT-ON-STOP™ technology, enabling vehicle detection only when a vehicle comes to a complete stop—ideal for avoiding cross traffic detection.
Features ULTRAMETER™ sensitivity display to simplify optimal sensitivity setup and interference diagnosis.
Offers 10 selectable sensitivity levels and 4 operating frequencies to customize detection accuracy and avoid crosstalk.
Supports automatic sensitivity boost (ASB) to prevent detection dropout with high-bed vehicles after initial presence detection.
Provides SPDT and SPST relay outputs for vehicle presence, loop fault, pulse on entry/exit, or DETECT-ON-STOP™ mode.
Low current draw (15mA standby / 45mA detect), making it energy efficient and ideal for green installations.
Automatically tunes to loop on power-up and adjusts to environmental conditions for consistent performance.
Surge-protected loop circuitry ensures long-term durability in electrically noisy environments.
CE compliant design, compatible with 12-24VDC/AC power sources and operational in temperatures from -40°F to 180°F.
Includes 10 screw terminals for straightforward electrical connections during setup.
Visual indicators (green and red LEDs) for power/loop fault and detection status enhance troubleshooting efficiency.
Robust performance across a loop inductance range of 20 to 2000µH with isolation transformer for grounded loops.
Fail-safe and fail-secure modes with infinite or 5-minute presence settings to suit a variety of access control needs.
| MODEL NAME | ULTRA-DIN |
| PART NUMBER | EMX-2600-1 |
| MOUNTING TYPE | DIN rail mount – 35mm width |
| DIMENSIONS | 80mm x 23mm x 84mm (3.2” x 0.9” x 3.3”) |
| WEIGHT | 0.25 lbs. (113 g) |
| POWER SUPPLY | 12-24VDC/AC |
| OPERATING CURRENT | 15mA standby / 45mA detect |
| OPERATING TEMPERATURE | -40°C to 82°C (-40°F to 180°F) |
| HUMIDITY RANGE | 0 to 95% relative humidity |
| SENSITIVITY | 10 levels, 0-9 |
| SENSITIVITY DISPLAY | UltraMETER™ - Indicates optimum sensitivity level and diagnostic aid |
| LOOP FREQUENCY | 4 settings (low, med-low, med-hi, high) |
| LOOP INDUCTANCE | 20…2000µH (Q factor > 5) |
| LOOP TYPE | Grounded loop supported with isolation transformer |
| AUTOMATIC TUNING | Tuning on power-up and after frequency count |
| ENVIRONMENTAL TRACKING | Automatic compensation |
| SURGE PROTECTION | Loop circuitry protected |
| RELAY OUTPUTS | SPDT (form C) presence relay; SPST (form A) output B relay |
| CONTACT RATINGS | 1A @ 24VDC…120VAC |
| INDICATORS | Green LED (Power / Loop Fault), Red LED (Detect / Frequency Count) |
| DETECT-ON-STOP™ | Activates detection only when vehicle is stopped for 1-2 seconds |
| ASB FEATURE | Automatic Sensitivity Boost to prevent dropout for high-bed vehicles |
| OPERATING MODES | Fail-safe / fail-secure, delay, infinite or 5-min presence |
| CONNECTIONS | 10 screw terminals |
| CE COMPLIANT | Yes |
ULTRA-DIN Vehicle Loop Detector from EMX delivers compact yet advanced detection capabilities, specially designed for DIN rail mounting in tight operator enclosures. Engineered with exclusive DETECT-ON-STOP™ technology, it only detects vehicles once they’ve come to a complete stop—effectively ignoring cross traffic and minimizing false detections in constrained spaces.
Compact, Efficient, and Smart Detection
The ULTRA-DIN offers a full range of features in a small 35mm-wide DIN rail mount package. With the innovative ULTRAMETER™ display, installers can quickly identify optimal sensitivity settings and interference issues. Additional functionalities like automatic sensitivity boost (ASB), fail-safe/fail-secure options, and multiple frequency settings make it suitable for a broad range of vehicle detection applications.
- Exclusive DETECT-ON-STOP™ for precise detection
- Compact size: 80 x 23 x 84 mm
- ULTRAMETER™ display for sensitivity/interference feedback
- 10 sensitivity levels and 4 operating frequencies
- DIN rail mount for easy integration
- Low current draw: green product
- CE compliant with surge protection and environmental tracking
Versatile Application with Reliable Output
Providing SPDT and SPST relay outputs, the ULTRA-DIN is capable of handling vehicle presence signals and loop faults or pulse outputs. With 12-24VDC/AC power support and operational ranges from -40°C to 82°C, it suits environments from cold storage to hot industrial areas. Its rugged design and precise diagnostics make it an excellent choice for access control systems, gate operators, and vehicle access applications.
- Gated communities and parking facilities
- Commercial and industrial access points
- Vehicle detection in tight entryways or exit lanes
Security and automation professionals seeking a compact, reliable, and interference-resistant loop detector can depend on the ULTRA-DIN from EMX to ensure consistent performance in modern access control setups.
Technical Specifications
- Model: ULTRA-DIN
- Sensitivity: 10 levels (0-9)
- Display: ULTRAMETER™ for diagnostics and optimization
- Loop Frequency: 4 settings (low to high)
- Power Input: 12-24VDC/AC
- Current Draw: 15mA standby / 45mA detect
- Output: SPDT (presence), SPST (output B)
- Detect-On-Stop Delay: 1-2 seconds
- Temperature Range: -40°C to 82°C (-40°F to 180°F)
- Dimensions: 80mm x 23mm x 84mm
- Mounting: DIN rail (35mm width)
- Connections: 10 screw terminals
