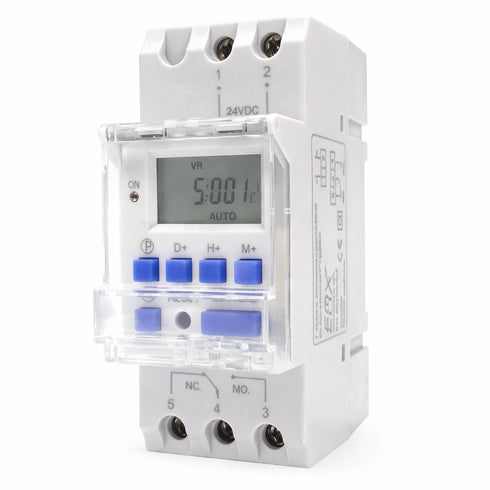

EMX-5406-2 PTM-120 Seven Day Programmable Timer Access Control Module
The PTM Seven Day Programmable Timer provides reliable automated scheduling for gates, overhead doors, parking barriers, and access control systems. Designed for flexibility and ease of installation, it supports up to sixteen ON OFF events per day with fifteen daily scheduling combinations. A large display with push button controls simplifies programming, while blackout memory protection preserves settings during power loss. DIN rail mounting and multiple voltage options allow seamless integration into commercial and industrial control panels. This timer reduces equipment wear by automating operating hours and improving overall system efficiency. :contentReference[oaicite:0]{index=0}
- Sixteen ON OFF events per day scheduling
- Fifteen daily program combinations
- Available in twelve twenty four or one hundred twenty volt models
- Battery backup with ninety day memory protection
- DIN rail mount with SPDT sixteen amp relay
Seven day programmable timer designed to provide secure and automated access control for facilities, gates, overhead doors, and parking barriers.
Supports up to 16 ON/OFF events per day, allowing precise scheduling and maximum flexibility for daily operations.
Offers 15 different daily program combinations to accommodate complex weekly access requirements.
Available in three power supply options: 12 VDC/AC, 24 VDC/AC, or 120 VAC, ensuring compatibility with a wide range of systems.
Battery backup with up to 90 days of blackout memory protection preserves all programmed settings during power outages.
Selectable 12-hour or 24-hour clock format for easy and accurate time configuration.
Large display and user-friendly push-buttons simplify programming and daily operation.
DIN rail mount design allows for quick, secure, and professional installation inside control panels.
SPDT relay contact rated at 16A @ 24 VDC / 120 VAC for reliable switching performance.
Built-in MOV surge protection devices help safeguard the timer from voltage spikes.
Compact and lightweight ABS plastic housing designed for durability and space-saving installation.
Operating temperature range of 14°F to 122°F (-10°C to 50°C) ensures dependable performance in various environments.
Helps reduce wear and tear on motor controls, extending the lifespan of gates, doors, and barrier equipment.
| MODEL NAME | PTM Seven Day Programmable Timer |
| PART NUMBER (12V) | EMX-5405-3 |
| PART NUMBER (24V) | EMX-5407-2 |
| PART NUMBER (120V) | EMX-5406-2 |
| MODEL OPTIONS | PTM-12, PTM-24, PTM-120 |
| PRODUCT TYPE | Seven Day Programmable Timer |
| APPLICATION | Access control for gates, overhead doors and parking barriers |
| PROGRAMMING CAPACITY | 16 ON/OFF events per day |
| DAILY PROGRAM OPTIONS | 15 different daily combinations |
| CLOCK FORMAT | Selectable 12 or 24 hour format |
| POWER SUPPLY (PTM-12) | 12 VDC/AC |
| CURRENT DRAW (PTM-12) | 6 mA standby, 46 mA activated |
| POWER SUPPLY (PTM-24) | 24 VDC/AC |
| CURRENT DRAW (PTM-24) | 15 mA standby, 37 mA activated |
| POWER SUPPLY (PTM-120) | 120 VAC |
| CURRENT DRAW (PTM-120) | 33 mA standby and activated |
| RELAY CONTACT RATING | SPDT 16 A @ 24 VDC / 120 VAC |
| OPERATING TEMPERATURE | 14°F to 122°F (-10°C to 50°C) |
| SURGE PROTECTION | MOV protection devices |
| BLACKOUT MEMORY PROTECTION | 90 days |
| MEMORY BACKUP | Battery backup for stored programs |
| CONNECTION TYPE | 5 screw terminals |
| MOUNTING TYPE | DIN rail mount |
| HOUSING MATERIAL | ABS plastic |
| WEIGHT | 0.2 lb (0.10 kg) |
| DIMENSIONS (L x W x H) | 3.41” (86.5 mm) x 1.42” (36 mm) x 2.70” (68.5 mm) |
| DISPLAY TYPE | Large digital display |
| CONTROL INTERFACE | Push-button programming |
| INSTALLATION | Simple DIN rail installation |
| FLEXIBILITY | Secure timed access scheduling |
| EQUIPMENT PROTECTION | Reduces wear and tear on motor controls |
| REPLACEMENT MODELS | Replaces DTM-9 and ETM-17 timers |
| USAGE ENVIRONMENT | Indoor installation |
| ACCESS CONTROL INTEGRATION | Compatible with automated gate and door systems |
| PROGRAM RETENTION | Maintains settings during power loss |
| VOLTAGE OPTIONS | 12V, 24V, or 120V depending on model |
| EVENT CONFIGURATION | Independent daily scheduling |
| TIMER TYPE | Electronic programmable timer |
| INSTALLATION LOCATION | Control panels with DIN rail |
| OPERATING MODE | Automatic timed relay activation |
| RELAY TYPE | Single Pole Double Throw (SPDT) |
| SECURITY FUNCTION | Scheduled secure facility access |
| MANUFACTURER | EMX Industries Inc. |
PTM Seven Day Programmable Timer from EMX Industries is a versatile and easy-to-program access control timer designed to provide secure, automated scheduling for gates, overhead doors, parking barriers, and facility access points. With up to 16 ON/OFF events per day and 15 daily program combinations, the PTM delivers exceptional flexibility for managing access times in commercial, industrial, and residential environments.
Flexible Scheduling with Reliable Memory Protection
The PTM allows users to select either a 12-hour or 24-hour clock format for convenient programming. Its built-in battery backup protects stored schedules for up to 90 days during power outages, ensuring uninterrupted operation and system reliability. Designed to help reduce wear and tear on motor controls, this programmable timer can extend the life of connected access equipment.
- 16 ON/OFF programmable events per day
- 15 daily scheduling combinations
- 12-hour or 24-hour clock format selection
- 90-day memory backup during power loss
- Helps reduce equipment wear and extend motor life
Simple Installation and Multiple Power Options
Engineered for straightforward installation, the PTM features a compact DIN rail mount design and durable ABS plastic housing. It is available in three power supply models to meet various application requirements: 12 VDC/AC, 24 VDC/AC, and 120 VAC. Five screw terminals provide secure wiring connections, while integrated surge protection enhances system durability.
- PTM-12: 12 VDC/AC operation
- PTM-24: 24 VDC/AC operation
- PTM-120: 120 VAC operation
- SPDT relay rated 16A @ 24 VDC / 120 VAC
- MOV surge protection devices
- Operating temperature: 14°F to 122°F (-10°C to 50°C)
The PTM replaces discontinued DTM-9 and ETM-17 timers, offering enhanced programming flexibility and modernized performance. Ideal for automated gates, overhead doors, and parking systems, this programmable timer delivers dependable scheduling control for professional access control installations.
Technical Specifications
- Models: PTM-12, PTM-24, PTM-120
- Events: 16 ON/OFF per day
- Daily Program Options: 15 combinations
- Relay Contact Rating: SPDT 16A @ 24 VDC / 120 VAC
- Memory Protection: 90 days
- Connections: 5 screw terminals
- Mounting: DIN rail
- Housing: ABS plastic
- Weight: 0.2 lb (0.10 kg)
- Dimensions (L x W x H): 3.41” (86.5 mm) x 1.42” (36 mm) x 2.70” (68.5 mm)
