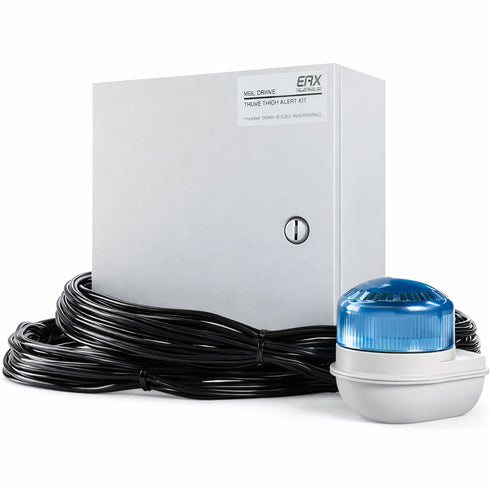

EMX-2811-1 DAK-1ULTMVP Drive Thru Alert Kit Prewired Enclosure System
The DAK 1ULTMVP Drive Thru Alert Kit provides a complete vehicle detection and notification solution for single lane drive thru applications. This prewired enclosure includes a loop detector, induction loop sensor, transformer, and audio visual alert system for fast installation. Designed for restaurants, banks, and car wash facilities, it delivers reliable presence detection with automatic tuning and environmental compensation. Adjustable sensitivity levels and built in surge protection ensure consistent performance in demanding commercial environments.
- Prewired enclosure for fast and simplified installation
- Includes loop detector, induction loop, and alert beacon
- Ten sensitivity levels with ULTRAMETER display diagnostics
- Automatic tuning with environmental tracking compensation
- Wide operating temperature range minus 40 C to 82 C
Complete drive-thru alert solution includes an induction loop sensor, ULT-MVP loop detector, and audio/visual alert strobe with chime for seamless vehicle detection.
Prewired enclosure design allows for near-instant installation, significantly reducing setup time and labor costs.
Provides both audible and visual notifications to instantly alert staff when a vehicle enters the drive-thru lane.
Ideal for single detection zone applications including fast-food restaurants, banks, pharmacies, and car wash facilities.
ULTRAMETER display offers 10 sensitivity levels (0–9) to ensure precise vehicle detection and optimal performance.
Features four selectable loop frequency settings (low, medium-low, medium-high, high) to prevent cross-talk and interference.
Automatic tuning and environmental tracking continuously adjust to changing conditions for consistent, reliable operation.
Isolation transformer supports operation with grounded or poor-quality loops for added installation flexibility.
Built-in surge protection safeguards loop circuitry against electrical spikes and transient voltage damage.
Dual SPDT relay outputs (Presence Relay and Output B) provide versatile integration with external systems and devices.
Wide operating temperature range from -40°C to 82°C (-40°F to 180°F) ensures dependable performance in extreme environments.
Preprogrammed detectors and LED beacon come ready out of the box, minimizing configuration requirements and startup time.
| MODEL NAME | DAK-1ULTMVP Drive Thru Alert Kit (Prewired Enclosure) |
| PART NUMBER | DAK-1ULTMVP |
| SKU | DAK-1ULTMVP |
| PRODUCT TYPE | Drive Thru Vehicle Detection and Alert Kit |
| MANUFACTURER | EMX Industries, Inc. |
| APPLICATION | Drive-thru lane vehicle detection and notification |
| DETECTION ZONES | Single detection zone |
| INSTALLATION TYPE | Prewired enclosure for near-instant installation |
| INDICATION TYPE | Audio and visual alert (chime and LED beacon) |
| INCLUDED COMPONENTS | Induction loop sensor, ULT-MVP loop detector, alert strobe/chime, enclosure with transformer |
| PREWIRED | Yes, factory prewired and preprogrammed |
| INPUT POWER CONNECTION | Terminal block for 120 VAC incoming power |
| COMPATIBLE LOOP | PR-46 preformed loops |
| SENSITIVITY LEVELS | 10 levels (0–9) |
| DISPLAY TYPE | ULTRAMETER display for optimum sensitivity indication (0–9) |
| LOOP FREQUENCY SETTINGS | 4 selectable settings (low, medium-low, medium-high, high) |
| LOOP INDUCTANCE RANGE | 20–2000 µH (Q factor > 5) |
| GROUND LOOP SUPPORT | Isolation transformer allows operation with poor quality loops |
| AUTOMATIC TUNING | Tunes to loop on power-up and after frequency count function |
| ENVIRONMENTAL TRACKING | Automatic environmental compensation |
| SURGE PROTECTION | Loop circuitry protected by surge suppressors |
| PRESENCE RELAY | SPDT relay contacts (Form C) |
| OUTPUT B RELAY | SPDT relay contacts (Form C) |
| CONTACT RATING (RESISTIVE LOAD) | 2A @ 30VDC, 0.5A @ 125VAC |
| POWER REQUIREMENTS (DC) | 12–60 VDC (Max. 0.8 VA) |
| POWER REQUIREMENTS (AC) | 12–240 VAC, 48–62 Hz (Max. 1.4 VA) |
| INPUT VOLTAGE OPTIONS | 110/115/120 VAC (60 Hz, 1 Phase); 220/230/240 VAC (60 Hz, 1 Phase); 277 VAC (60 Hz, 1 Phase) |
| OPERATING CURRENT | 20 mA standby / 50 mA detect |
| OPERATING TEMPERATURE | -40°C to 82°C (-40°F to 180°F) |
| HUMIDITY RANGE | Up to 95% relative humidity |
| DETECTOR DIMENSIONS (L x W x H) | 73 mm (2.9") x 38 mm (1.2") x 78 mm (3.1") |
| HOUSING MATERIAL | ABS plastic |
| ENCLOSURE RATING | IP30 |
| CONNECTION TYPE | Socket mount, 11-pin male (JEDEC B11-88) |
| TRANSFORMER INCLUDED | Yes, mounted and prewired inside enclosure |
| DETECTOR MODEL | ULT-MVP Vehicle Detector |
| ALERT DEVICE | LED beacon with audible chime |
| PROGRAMMING STATUS | Preprogrammed from factory |
| MOUNTING CONFIGURATION | Internal panel-mounted components within junction box |
| POWER CONNECTION METHOD | Terminal block wiring |
| LOOP CONNECTION METHOD | Terminal block connection to PR-46 loop |
| BEACON CONNECTION | Prewired LED beacon connection |
| USE CASES | Fast-food restaurants, banks, car washes, and similar drive-thru applications |
| SYSTEM FUNCTION | Detects vehicle presence and notifies staff via audio/visual alert |
| INSTALLATION TIME | Reduced due to factory prewiring |
| FREQUENCY COUNT FUNCTION | Yes |
| DIAGNOSTIC AID | ULTRAMETER sensitivity display |
| RELAY FORM | Form C contacts |
| ENCLOSURE TYPE | Junction box with internal mounting panel |
| VEHICLE DETECTION METHOD | Inductive loop detection |
| FACTORY CONFIGURATION | Complete kit ready for deployment |
EMX Drive Thru Alert Kit (Prewired Enclosure) - DAK-1ULTMVP from EMX Industries, Inc. provides a complete, ready-to-install vehicle detection solution for drive-thru applications. This all-in-one kit includes an induction loop sensor, ULT-MVP loop detector, and alert strobe/chime—prewired inside a protective enclosure for fast, efficient installation. Designed for single detection zone setups, it delivers both audio and visual alerts when a vehicle enters the drive-thru lane.
Prewired for Fast Installation and Reliable Performance
The DAK-1ULTMVP is factory preassembled with the transformer and ULT-MVP vehicle detector mounted and wired inside the junction box. Terminal blocks are provided for simple connection to incoming power (120 VAC) and field wiring to the PR-46 loop and LED beacon. All components are preprogrammed for immediate operation, reducing setup time and ensuring accurate detection right out of the box.
- Complete drive-thru detection kit with 1 detection zone
- Includes loop sensor, ULT-MVP detector, and alert strobe/chime
- Prewired enclosure for near-instant installation
- Audio and visual vehicle presence notification
- Preprogrammed components for plug-and-play setup
Ideal for Multiple Drive-Thru Applications
This versatile alert system is suitable for fast-food restaurants, banking drive-thrus, pharmacies, car washes, and other commercial vehicle service lanes. With advanced sensitivity control and environmental compensation, the system ensures dependable detection performance in varying weather and site conditions.
- Quick-service restaurant drive-thrus
- Bank and financial institution lanes
- Pharmacy and retail pickup windows
- Automatic car wash entry lanes
Advanced Detection Technology
The integrated ULT-MVP vehicle detector features adjustable sensitivity levels, automatic tuning, environmental tracking, and built-in surge protection. An isolation transformer supports operation even with poor-quality loops, ensuring stable and consistent vehicle detection.
- 10 sensitivity levels (0–9)
- ULTRAMETER display for optimal sensitivity indication
- 4 selectable loop frequency settings
- Automatic tuning on power-up
- Environmental compensation and surge suppression
- SPDT presence and Output B relay contacts (Form C)
Technical Specifications
- Model: DAK-1ULTMVP
- Detection Type: Induction loop vehicle detection
- Sensitivity: 10 levels (0–9)
- Loop Frequency: Low, Medium-Low, Medium-High, High
- Loop Inductance: 20–2000 µH (Q factor > 5)
- Contact Rating: 2A @ 30VDC, 0.5A @ 125VAC (resistive load)
- Power Input Options: 110/115/120VAC, 220/230/240VAC, 277VAC (60Hz, 1 Phase)
- Operating Current: 20mA standby / 50mA detect
- Operating Temperature: -40°C to 82°C (-40°F to 180°F)
- Humidity: Up to 95% relative humidity
- Housing: ABS plastic, IP30 rated
- Dimensions: 73mm x 38mm x 78mm (2.9" x 1.2" x 3.1")
- Connections: 11-pin JEDEC B11-88 socket mount
- Manufacturer: EMX Industries, Inc.
The EMX Drive Thru Alert Kit (DAK-1ULTMVP) is a dependable, contractor-friendly solution for businesses requiring accurate vehicle detection and immediate staff notification. With factory prewiring, programmable detection controls, and durable construction, this system delivers professional-grade performance for high-traffic commercial drive-thru environments.
