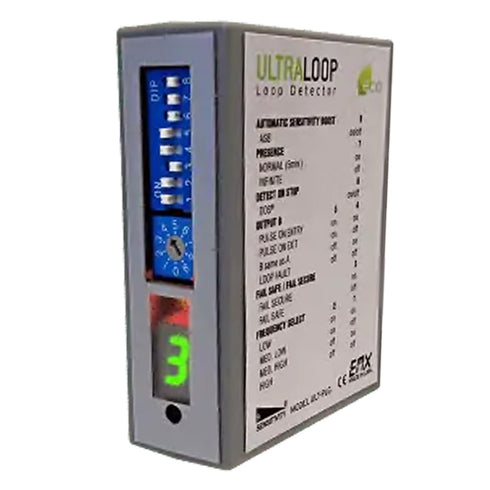

EMX 2670-1 ULT-PLG Inductive Loop Detector Plug In
This plug in inductive loop detector delivers reliable vehicle presence detection for gate and access control systems. Designed for compact installations, it offers advanced detection technology that ignores cross traffic in tight areas while ensuring accurate activation when vehicles stop. Easy configuration, low power consumption, and flexible output options make it suitable for demanding commercial and industrial environments requiring stable performance and long term reliability.
- Plug in loop detector with compact full feature design
- Detect on stop technology reduces false triggers from cross traffic
- Ten sensitivity levels with visual diagnostic display
- Four selectable frequencies to minimize loop interference
- Low current draw supports energy efficient installations
Plug-in vehicle loop detector with compact design and full-featured functionality for seamless integration.
Equipped with DETECT-ON-STOP™ technology to ignore cross traffic in tight spaces by detecting only when a vehicle comes to a complete stop.
ULTRAMETER™ sensitivity display allows easy setup and precise sensitivity adjustment with 10 selectable levels.
Supports 4 operating frequencies to prevent interference in multi-loop installations.
Offers dual solid-state outputs including vehicle presence, loop fault, or pulse on entry/exit options.
Automatic Sensitivity Boost (ASB) prevents detection dropout from high-bed vehicles after initial sensing.
Power-efficient with low current draw, supporting green installation initiatives.
Includes delay, fail-safe/fail-secure, and selectable normal/infinite presence timing for flexible configurations.
Features automatic tuning on power-up and continuous environmental tracking for stable performance.
Surge protection built into loop circuitry for enhanced durability and system safety.
Compatible with a broad range of gate operators for widespread application versatility.
CE compliant and built with robust components for long-term reliability.
Power and loop fault indicated by green LED; detection and frequency count indicated by red LED.
Wide operating temperature range of -40°F to 180°F, suitable for harsh outdoor environments.
Compact 10-pin plug-in module design simplifies installation in standard enclosures.
| MODEL NAME | EMX 2670-1 ULT-PLG Inductive Loop Detector - Plug-In |
| TYPE | Plug-in loop detector |
| SENSITIVITY SETTINGS | 10 levels, 0-9 |
| FREQUENCY SETTINGS | 4 operating frequencies (low, med-low, med-hi, high) |
| FEATURE - DETECT-ON-STOP™ | Ignores cross traffic, detects only when vehicle is stopped |
| FEATURE - ULTRAMETER™ | Indicates optimum sensitivity level (0-9) |
| SECOND OUTPUT OPTIONS | Presence, loop fault, pulse on entry/exit |
| OUTPUT TYPE | Solid-state (open collector) |
| ASB (AUTOMATIC SENSITIVITY BOOST) | Prevents dropout due to high-bed vehicles |
| DELAY FUNCTION | Yes |
| PRESENCE MODE | Infinite and normal (5 min.) presence |
| FAIL-SAFE/FAIL-SECURE | Selectable |
| LOOP INDUCTANCE | 20—2000µH (Q factor > 5) |
| GROUNDED LOOP | Supported with isolation transformer |
| AUTOMATIC TUNING | Tunes on power-up and after frequency count |
| ENVIRONMENTAL TRACKING | Automatic compensation |
| SURGE PROTECTION | Loop circuitry protected |
| POWER INDICATOR | Green LED |
| DETECT INDICATOR | Red LED |
| STOP TIME REQUIREMENT | Minimum 1 second (1-2s typical) |
| POWER SUPPLY | 12VDC—24VDC |
| OPERATING CURRENT | 15 mA |
| OPERATING TEMPERATURE | -40°C—82°C (-40°F—180°F) |
| HUMIDITY RANGE | 0—95% relative humidity |
| DIMENSIONS (L × W × H) | 3.0" (76 mm) × 0.9" (22 mm) × 2.75" (70 mm) |
| CONNECTOR TYPE | 10-pin female |
| COMPATIBILITY | Compatible with many gate operators |
| COMPLIANCE | CE compliant |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
| COUNTRY OF ORIGIN | MADE IN USA |
EMX Carsense Burial Probe - 200 ft Lead [EMX-1820-1] from EMX Industries offers a discreet and effective vehicle detection solution for industrial, security, and access control environments. Designed for underground installation, this probe works with the Carsense 101 motion detector (sold separately) to detect moving vehicles while remaining hidden from view, enhancing site security and system integrity.
Reliable Vehicle Detection in Challenging Environments
Ideal for diverse applications, the EMX Carsense Probe helps detect vehicle movement to trigger warning lights, alarms, cameras, or facilitate gate/door operations. Built with surge protection and a durable design, it supports long-term deployment and performs well even in demanding outdoor conditions. Its low voltage and current requirements make it especially suitable for solar-powered systems or areas with limited power availability.
- 200 ft lead cable for flexible installation
- Compatible with Carsense 101 detector (sold separately)
- Enables free exit, security alarms, and blind spot detection
- Low voltage operation: 9 - 41 VDC / 6 - 29 VAC
- Low current draw for energy efficiency
- Built-in surge protection enhances durability
Easy Integration with Access Systems
The EMX probe integrates easily with gate operators, door controllers, and security systems using the Carsense 101 relay housing. Ideal for industrial zones, gated entries, and commercial access points, it enhances safety and automation. Simple front-panel controls allow for easy setup and diagnostics, streamlining installation for technicians.
- Industrial sites with vehicle blind spots
- Gated community exit systems
- Commercial facility access and monitoring
- Solar-powered remote entry systems
Professionals looking for dependable underground vehicle detection will find the EMX Carsense Burial Probe an excellent solution when paired with the CS-101 detector. This product is widely trusted across the security and access control industry.
Technical Specifications
- Model: EMX-1820-1
- Lead Length: 200 feet
- Power: 9 - 41 VDC / 6 - 29 VAC
- Usage: Exit detection, security alerts, gate automation
- Mounting: Direct burial (underground)
- Compatibility: Works with EMX Carsense 101 (sold separately)
- Surge Protection: Built-in
- Application Type: Industrial, Commercial, Access Control
