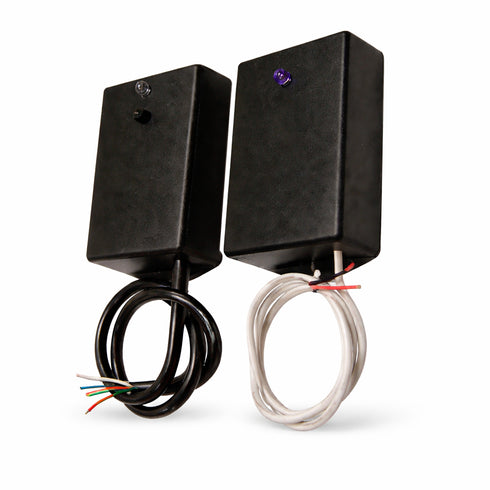

EMX-1302-1 PC-3 Infrared Thru Beam Photo Eye Sensor 30 Foot Range
Infrared thru beam photo eye sensor designed for reliable safety detection on gates garage doors and rolling doors. The unit offers simple installation with LED alignment indication and requires no calibration. A wide sensing angle improves detection accuracy while the modulated infrared beam resists interference from sunlight dust or rain. Ideal for systems requiring dry contact safety inputs and dependable operation in indoor or protected outdoor environments. :contentReference[oaicite:0]{index=0}
- Infrared thru beam safety sensor with 30 foot operating range
- Wide 24 degree detection angle for dependable obstruction sensing
- LED indicator simplifies alignment and troubleshooting
- Dry contact output compatible with most control boards
- Durable PVC housing for indoor or protected outdoor use
Offers a reliable 30-foot detection range using a non-reflective thru-beam configuration, ideal for garage and rolling doors.
Utilizes a modulated infrared beam that resists interference from sunlight, rain, dust, and dirt for dependable operation.
Wide 24-degree sensing angle ensures enhanced object detection and alignment flexibility.
Built-in LED alignment indicator simplifies installation and ensures precise sensor positioning.
Requires no calibration or sensitivity adjustments, streamlining setup and reducing installation time.
Compatible with any control board accepting dry contact safety inputs for versatile integration.
Supervised relay output delivers an “open” signal in power failure conditions for added safety.
Compact black PVC housing with 18" lead wire; suitable for indoor or protected outdoor environments.
Operates on 12V to 24V AC or DC power, accommodating various gate automation systems.
Includes a 2-Year Limited Manufacturer Warranty for assured quality and performance.
Made in the USA, ensuring high manufacturing standards and product reliability.
| MODEL NAME | EMX 1302-1 PC-3 Thru-Beam Photo Eye |
| SENSOR TYPE | Infrared, modulated, thru-beam |
| DETECTION RANGE | 30 feet (9.1 meters) |
| DETECTION ANGLE | 24 degrees |
| POWER SUPPLY | 12V – 24V AC or DC |
| RELAY CONTACT RATING | 1A @ 24VDC or 120VAC |
| RELAY TYPE | Supervised, dry contact |
| OPERATION INDICATOR | LED for alignment and beam status |
| DIMENSIONS | 4 in. x 2 in. x 1.5 in. |
| LEAD WIRE LENGTH | 18 inches |
| HOUSING MATERIAL | Black PVC (not water tight) |
| INSTALLATION TYPE | Indoor or protected outdoor use |
| SENSITIVITY ADJUSTMENT | Not required |
| SURFACE REFLECTION EFFECT | Not affected by shiny surfaces |
| ENVIRONMENTAL RESISTANCE | Not affected by sunlight, rain, dust, or dirt |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
| COMPATIBILITY | Works with any control board accepting dry contact input |
| COUNTRY OF ORIGIN | MADE IN USA |
EMX 1302-1 PC-3 Thru-Beam Photo Eye is a high-reliability infrared sensor designed for garage and rolling door safety. With a 30-foot range and advanced thru-beam configuration, it ensures consistent performance in residential and commercial gate systems. Built in the USA, this photoeye simplifies installation with an LED alignment indicator and requires no calibration or sensitivity adjustments.
Reliable Sensing with Wide Coverage
Engineered to maintain function in a variety of conditions, the PC-3 offers a wide 24-degree detection angle and a modulated infrared beam that remains unaffected by sunlight, rain, dust, or reflective surfaces. Its supervised relay output ensures a fail-safe response in power outages, and it operates reliably indoors or in protected outdoor environments.
- 30-foot sensing range
- Non-reflective thru-beam design unaffected by shiny surfaces
- LED alignment indicator simplifies setup
- Modulated infrared beam resists environmental interference
- Wide 24° sensing angle increases installation flexibility
- Supervised relay ensures signal output during power failure
Easy Installation and Broad Compatibility
The EMX 1302-1 PC-3 is compatible with any gate control board that supports dry contact safety input. Its compact PVC housing and pre-installed 18" lead wire make mounting straightforward, while the absence of calibration needs shortens setup time. Ideal for use in both residential and light commercial gate systems where performance and ease of use are priorities.
- Compatible with all dry-contact safety inputs
- Ideal for garage doors, rolling doors, and automated gates
- Indoor or sheltered outdoor use up to 30 feet
Installers and security professionals seeking a cost-effective, dependable photoeye sensor will find the EMX 1302-1 PC-3 a reliable solution. Designed and manufactured in the USA with a 2-year limited warranty, this unit offers strong value for safety-conscious installations.
Technical Specifications
- Model: EMX-1302-1
- Range: 30 feet
- Power: 12V — 24V AC or DC
- Relay Contacts: 1A @ 24VDC or 120VAC
- Detection Angle: 24 degrees
- Housing: Black PVC (not watertight)
- Dimensions: 4 in. x 2 in. x 1.5 in.
- Lead Wire: 18 inches
- Installation: LED-guided alignment, no calibration required
- Warranty: 2-Year Limited Manufacturer Warranty
- Country of Origin: USA
