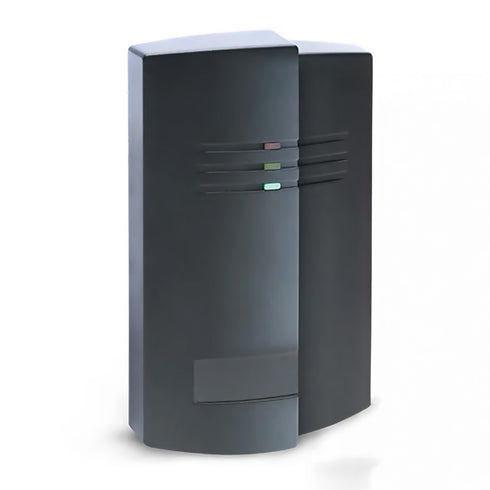

DK M Series Card Readers Mifare Classic UID Access Control Readers
DK M Series Mifare Classic UID access control readers are designed for secure identification in systems already utilizing Mifare Classic cards. These readers provide simple integration using a 26-bit Wiegand output format and are available in mullion or single-gang configurations. With weather-resistant epoxy-sealed construction and optional standalone relay output, they deliver durable, maintenance-free performance in both indoor and outdoor environments. Ideal for access systems that require reliability, compatibility, and easy installation without replacing existing credentials.
- Compatible with 4-byte and 7-byte Mifare Classic UID cards
- 26-bit Wiegand output ensures easy system integration
- Weather-resistant epoxy-sealed housing for outdoor use
- Optional relay version enables standalone operation
- Available in mullion or single-gang mount styles
Compatible with Mifare Classic UID cards (4-byte and 7-byte), supporting existing credentials without the need for replacements.
Outputs card data in 26-bit Wiegand format, enabling seamless integration with a wide range of access control systems.
Offered in both mullion and single-gang mounting configurations to suit different installation requirements.
Optional model with a dry contact relay enables standalone operation without external controllers.
Sealed in epoxy for maintenance-free, weather-resistant performance, ideal for rugged environments.
Supports both indoor and outdoor installations, enhancing deployment flexibility.
Read range of up to 1" (2.5 cm) ensures reliable card detection and quick user access.
Low power requirement of 12VDC ±10%, 200mA makes it efficient and compatible with standard power supplies.
Requires separate card scanner (model 1815-690) for identifying card’s Wiegand code, streamlining credential setup.
Ideal for access control systems already using Mifare Classic cards, minimizing system changes and user disruption.
Models available: 1815-680 (mullion mount), 1815-681 (single-gang mount), 1520-087 (with relay for standalone use).
| MODEL NAME | DK M Series Card Readers Mifare Classic UID Access Control Readers |
| PRODUCT TYPE | Electronic Card Readers |
| VENDOR | Active Pro Aero |
| CARD COMPATIBILITY | Mifare Classic UID (4/7-byte) |
| READ RANGE | Up to 1″ (2.5 cm) |
| VOLTAGE | 12VDC ±10%, 200mA |
| OUTPUT FORMAT | 26-bit Wiegand (except 1520-087: relay) |
| ENVIRONMENT | Indoor/Outdoor |
| MOUNTING OPTIONS | Mullion or Single-gang mount |
| STANDALONE VERSION | 1520-087 with dry contact relay output |
| MAINTENANCE | Maintenance-free construction |
| WEATHER RESISTANCE | Epoxy-sealed and weather-resistant |
| REQUIRED SCANNER | Model 1815-690 (to identify card’s Wiegand code) |
| MODELS |
1815-680: Mullion mount 1815-681: Single-gang box mount 1520-087: Same as 1815-680, but with dry contact relay output |
DK M Series Card Readers from Active Pro Aero offer a seamless solution for access control systems utilizing Mifare Classic UID cards. Designed to integrate easily into existing infrastructures, these readers eliminate the need to replace credentials while supporting secure and efficient access management.
Reliable Compatibility and Integration
The DK M Series supports both 4-byte and 7-byte Mifare Classic UID cards, making it ideal for systems already employing these credentials. The 26-bit Wiegand output ensures straightforward integration with most access control panels. Models are available in mullion or single-gang mount options, with a standalone version offering dry contact relay output for added versatility in deployment.
- Compatible with Mifare Classic 4-byte and 7-byte UID cards
- 26-bit Wiegand output for easy system integration
- Mullion and single-gang mount configurations available
- Optional relay version for standalone access control
- Epoxy-sealed, weather-resistant for maintenance-free use
Built for Indoor and Outdoor Use
Constructed for durability in various environments, these readers feature a sealed design that resists weather and physical wear. The DK M Series supports both indoor and outdoor applications, delivering consistent performance across a range of installation scenarios.
- Maintenance-free, sealed housing
- Weather-resistant for outdoor installations
- Compact, discreet design for flexible mounting
- Ideal for commercial, industrial, and residential access points
Security professionals and system integrators can rely on the DK M Series from Active Pro Aero for dependable card reader performance, compatibility with existing credentials, and seamless integration into modern access control ecosystems.
Technical Specifications
- Models:
- 1815-680: Mullion mount
- 1815-681: Single-gang box mount
- 1520-087: Mullion mount with dry contact relay output (standalone)
- Read Range: Up to 1″ (2.5 cm)
- Voltage: 12VDC ±10%, 200mA
- Output: 26-bit Wiegand (1520-087 uses relay output)
- Card Compatibility: Mifare Classic UID (4/7-byte)
- Environment: Indoor/Outdoor
Related products
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: Electronic Card Readers
VENDOR: Active Pro Aero

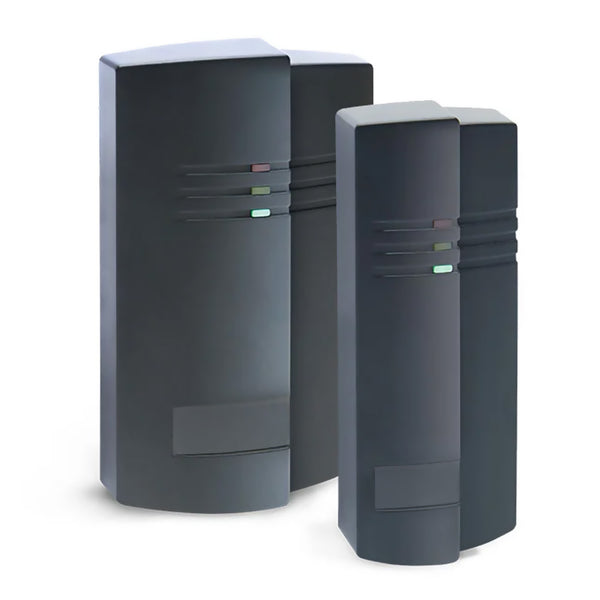

Enhance your access control security with ultra-secure encrypted card readers designed for reliability and protection. These readers work exclusively with encrypted credentials, ensuring no unauthorized duplication. Featuring multiple mounting options and compatibility with popular access systems, they offer versatility for...
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: Electronic Card Readers
VENDOR: Active Pro Aero

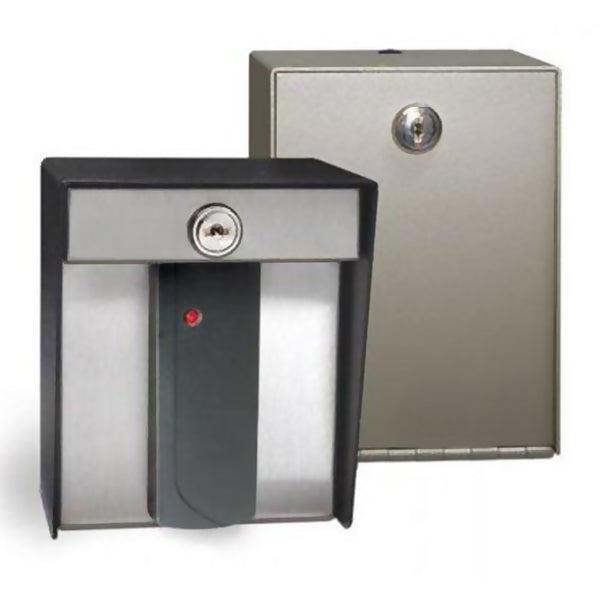

The 1524 Stand-Alone Card Reader with DK Prox Reader offers secure single-door or gate access control with simple installation and reliable performance. It supports up to 1000 user cards and provides quick programming options via handheld programmer or programming cards....
SKU:
AVAILABILITY: In stock (1 item)
PRODUCT TYPE: Electronic Card Readers
VENDOR: Active Pro Aero

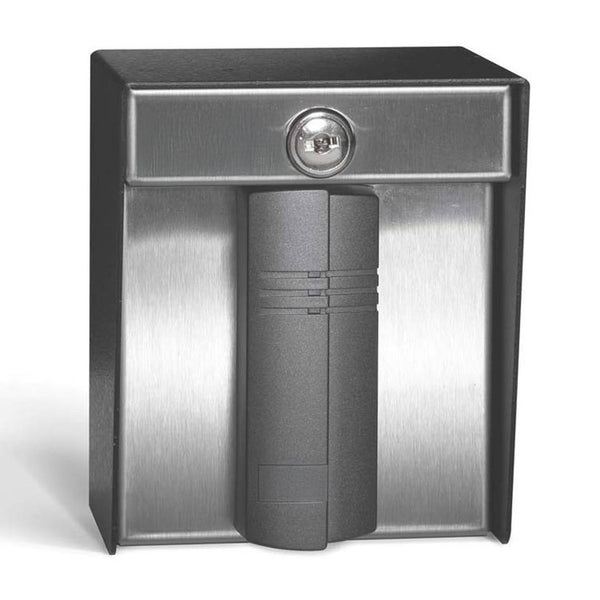

The 1520 Stand-Alone Card Reader and Access Controller provides a reliable solution for single-door or gate entry control. Designed for residential, commercial, and industrial use, it supports up to 1000 user cards with programmable time zones and timed anti-pass back....
