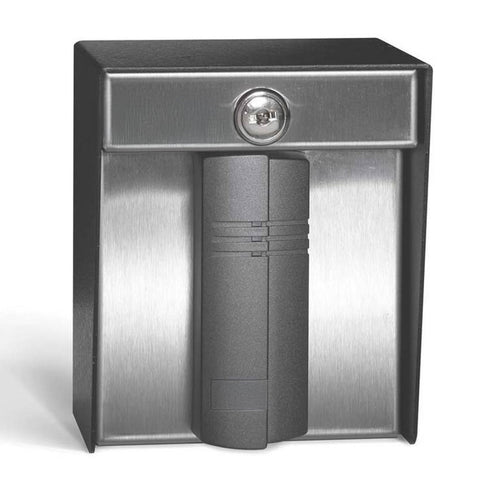

1520 Stand-Alone Card Reader and Access Controller
The 1520 Stand-Alone Card Reader and Access Controller provides a reliable solution for single-door or gate entry control. Designed for residential, commercial, and industrial use, it supports up to 1000 user cards with programmable time zones and timed anti-pass back. The built-in proximity reader and keypad allow easy programming and access management. Its rugged construction ensures dependable performance in both indoor and outdoor environments, maintaining full functionality across a wide temperature range. Ideal for gated communities, parking areas, and secure facilities requiring controlled access without the need for a networked system.
- Standalone operation for single-door or gate access
- Supports up to 1000 user cards with programmable time zones
- Built-in proximity reader compatible with multiple formats
- Data retention up to 3 days without power
- Durable indoor and outdoor-rated design
Functions as a standalone access control system, managing entry for a single door or gate without requiring network integration.
Equipped with a built-in proximity reader compatible with DK, DK Prox, AWID, and HID credentials for flexible access options.
Also available as a controller-only version, supporting custom 26-bit Wiegand devices for advanced installations.
Allows user-friendly programming through its integrated keypad, eliminating the need for external configuration tools.
Stores up to 1000 unique card codes, making it ideal for mid-sized residential, commercial, or gated applications.
Features four programmable time zones to accommodate varied access schedules across user groups.
Timed anti-pass back feature (1–59 minutes) helps prevent card misuse and enhances security enforcement.
Includes a transaction buffer capable of holding the last 3600 events for detailed activity tracking.
Clock and memory buffer maintain data for up to 3 days during power outages, preserving key settings and event logs.
Provides a Form C dry contact relay output (30V, 1A), suitable for a wide range of electric locking mechanisms.
Operates reliably in harsh environments, with an indoor/outdoor rating and temperature range from -35°C to +65°C.
Designed for surface mounting, simplifying installation on gates, doors, or access enclosures.
Supplied with a 16 VAC power transformer (20 VA), ensuring ready-to-install convenience for integrators.
Ideal for residential buildings, multi-family entry points, gated communities, and parking or storage facilities.
Compact and rugged unit weighing approximately 8 lbs (3.6 kg), delivering both durability and performance.
| MODEL NAME | 1520 Stand-Alone Card Reader and Access Controller |
| PRODUCT TYPE | Electronic Card Readers |
| VENDOR | Active Pro Aero |
| ACCESS CONTROL TYPE | Standalone access control system for single-door or gate |
| READER TYPE | Built-in proximity reader (DK, DK Prox, AWID, HID) |
| CONTROLLER OPTION | Available as controller-only for custom 26-bit device |
| PROGRAMMING METHOD | Via built-in keypad |
| CARD CAPACITY | 1000 users |
| READ RANGE | 2" to 4" |
| TIME ZONES | Four programmable time zones |
| ANTI-PASS BACK | Timed anti-pass back (1–59 minutes) |
| TRANSACTION BUFFER | Holds last 3600 events |
| DATA RETENTION | Clock and buffer retain data for up to 3 days without power |
| RELAY OUTPUT | Form C dry contact (30V, 1A) |
| POWER SUPPLY | 16 VAC (20 VA transformer supplied) |
| MOUNTING | Surface |
| INDOOR/OUTDOOR USE | Indoor/Outdoor rated |
| OPERATING TEMPERATURE | -35°C to +65°C (-31°F to 150°F) |
| WEIGHT | Approx. 8 lbs (3.6 kg) |
| APPLICATIONS | Residential and Multi-Family Entry Points, Gated Communities, Commercial & Industrial Access, Parking and Storage Facilities |
1520 Stand-Alone Card Reader and Access Controller from Active Pro Aero offers an integrated solution for managing secure access at single doors or gates. Designed with a built-in proximity reader and support for major formats including DK, DK Prox, AWID, and HID, this compact unit is ideal for residential, commercial, and industrial access control applications. A keypad interface allows for easy on-site programming, making it a convenient choice for standalone installations.
Secure and Customizable Access Control
The 1520 is built to manage access for up to 1000 users, with four programmable time zones and timed anti-pass back functionality to enhance security. It stores the last 3600 access events and maintains critical data even during power loss, thanks to its integrated clock and buffer with up to 3-day retention. Whether managing entry for gated communities or high-traffic facilities, the 1520 delivers robust performance in both indoor and outdoor environments.
- Built-in proximity reader (DK, DK Prox, AWID, HID)
- Controller-only version available for custom 26-bit devices
- Keypad programming and user-friendly setup
- Stores up to 1000 card codes
- Four programmable access time zones
- Timed anti-pass back (1–59 minutes)
- 3600-event transaction buffer with 3-day data retention
- Form C dry contact relay output
Ideal for Diverse Applications
Engineered to perform across a wide temperature range, the 1520 supports reliable access control in challenging environments. It is suitable for residential and multi-family buildings, gated communities, commercial properties, and storage facilities where standalone access is required without dependency on a central system.
- Residential and multi-family entry points
- Gated communities and vehicle access gates
- Commercial and industrial entry control
- Parking lots and storage facilities
Technical Specifications
- Model: 1520
- Card Capacity: 1000 users
- Read Range: 2″ to 4″
- Relay Output: Form C dry contact (30V, 1A)
- Power Supply: 16 VAC (includes 20 VA transformer)
- Mounting: Surface-mounted
- Environment: Indoor/Outdoor rated
- Operating Temperature: -35°C to +65°C (-31°F to 150°F)
- Weight: Approx. 8 lbs (3.6 kg)
