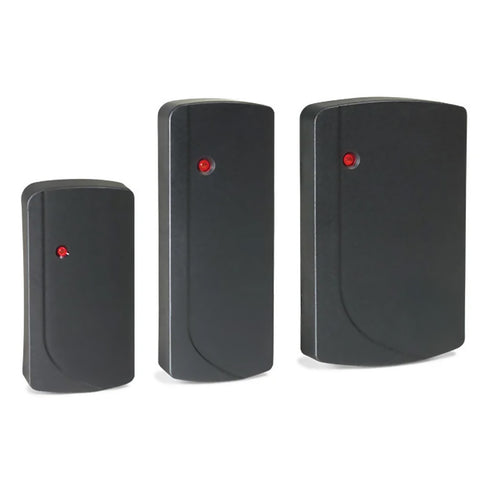

1815-300 Proximity Reader Mullion Mount Access Control Reader
1815-300 Proximity Reader offers reliable access control performance for narrow-profile installations. Designed for both indoor and outdoor environments, it ensures secure and convenient entry management with a read range of up to 3 inches. The unit is fully sealed in epoxy for enhanced weather and vandal resistance, supporting 26-bit Wiegand controllers and passive proximity credentials. Its dual-color LED and audible feedback provide intuitive user interaction, while its durable, maintenance-free construction guarantees long-lasting operation in gates, doors, or parking applications.
- Mullion-mount proximity reader for narrow installations
- Weatherproof and vandal-resistant epoxy-sealed design
- Read range up to 3 inches for convenient access
- Compatible with most 26-bit Wiegand controllers
- Dual-color LED and beeper provide user feedback
Designed for mullion mounting, ideal for narrow-profile installations such as door frames and gateposts.
Offers a read range of up to 3 inches (7.6 cm), ensuring efficient proximity card detection.
Encased in fully sealed epoxy for superior vandal resistance and all-weather durability.
Engineered for both indoor and outdoor use, suitable for doors, gates, and parking access points.
Compatible with 1830 Series systems and most 26-bit Wiegand controllers for seamless integration.
Supports passive DKProx cards and tags, eliminating the need for batteries.
Includes a dual-color LED (Red/Green) and piezo beeper for clear user feedback and status indication.
Operates maintenance-free with no moving parts or physical contact required during use.
Functions at a 125 kHz frequency with a 26-bit Wiegand output format for secure data transmission.
Runs on 12VDC ±10% power input and consumes 200mA, optimized for low-power systems.
| MODEL NAME | 1815-300 Proximity Reader Mullion Mount Access Control Reader |
| PRODUCT TYPE | Proximity Reader |
| VENDOR | Active Pro Aero |
| INSTALLATION TYPE | Mullion-mount (narrow-profile) |
| READ RANGE | Up to 3 inches (7.6 cm) |
| FREQUENCY | 125 kHz |
| OUTPUT | 26-bit Wiegand |
| VOLTAGE | 12VDC ±10%, 200mA |
| LED INDICATOR | Red/Green |
| BEEPER | Yes, Piezo Beeper |
| USER FEEDBACK | LED status indicator and beeper |
| MAINTENANCE | Maintenance-free, no moving parts or contact |
| BUILD TYPE | Fully sealed in epoxy – vandal-resistant and weatherproof |
| USAGE ENVIRONMENT | Indoor/Outdoor |
| APPLICATION | Gates, doors, and parking access |
| COMPATIBILITY | 1830 Series and most 26-bit Wiegand controllers |
| CARD/TAG SUPPORT | Passive DKProx cards and tags (no battery required) |
1815-300 Proximity Reader from Active Pro Aero is a compact, mullion-mount access control solution designed for narrow-profile installations. With a read range of up to 3 inches (7.6 cm), it delivers reliable performance for indoor and outdoor use, making it ideal for gates, doors, and parking access points. Fully sealed in epoxy, the reader is both vandal-resistant and weatherproof.
Durable, Weatherproof, and User-Friendly
Designed to withstand harsh conditions, the 1815-300 features a rugged construction with no moving parts, offering maintenance-free operation. It includes a dual-color LED and piezo beeper for user feedback, and is compatible with 1830 Series systems and most 26-bit Wiegand controllers. Supporting passive DKProx cards and tags, this proximity reader requires no batteries for operation.
- Mullion-mount design for narrow-profile installation
- Read range up to 3 inches (7.6 cm)
- Epoxy-sealed for vandal and weather resistance
- Indoor/outdoor use for versatile applications
- Compatible with 1830 Series and 26-bit Wiegand controllers
- Supports passive DKProx cards and tags
- LED (Red/Green) and beeper for status indication
- Maintenance-free, no-contact operation
Technical Specifications
- Model: 1815-300
- Mount: Mullion (narrow surface)
- Read Range: Up to 3″ (7.6 cm)
- Frequency: 125 kHz
- Output: 26-bit Wiegand
- Voltage: 12VDC ±10%, 200mA
- Indicators: Dual-color LED, Piezo Beeper
- Operating Environment: Indoor/Outdoor
