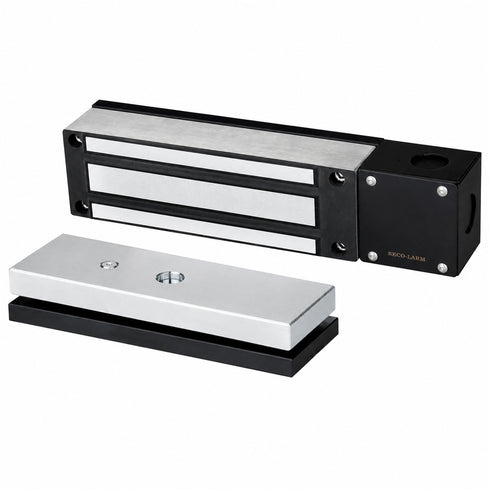

E-942FC-1K3SQ 1,200 lb Electromagnetic Gate Lock Face Mount Weldable
The E-942FC-1K3SQ 1,200 lb electromagnetic gate lock is designed for reliable access control on sliding and swinging gates. Featuring a face mount design with weldable or bolt-on brackets, it provides a 1,200 lb holding force for demanding commercial and industrial applications. The maintenance-free sealed construction includes MOV surge protection, fail-safe operation, IP67 waterproof protection, vandal-resistant stainless steel housing, and selectable 12 or 24VDC operation for dependable indoor and outdoor security installations.
- 1,200 lb holding force for secure gate access control
- Face mount with weldable or bolt-on installation brackets
- IP67 waterproof and vandal-resistant stainless steel housing
- Selectable 12 or 24VDC fail-safe operation
- Suitable for sliding and swinging gate applications
Delivers a powerful 1,200-lb (545 kg) holding force to provide reliable security for swinging and sliding gate access control systems.
Designed for face-mount installation with included brackets for both the magnet and armature, simplifying gate installations.
Supports both weld-on and bolt-on mounting options, allowing flexible installation on a wide variety of metal gates.
Features fail-safe operation that automatically unlocks when power is removed, enhancing emergency exit safety.
Selectable 12VDC or 24VDC operation provides easy integration with a broad range of access control systems.
Built with an IP67 waterproof rating and vandal-resistant construction for dependable indoor and outdoor performance.
Includes MOV surge protection to safeguard the lock from electrical spikes and improve long-term reliability.
Engineered with no residual magnetism, allowing smooth and consistent gate release after deactivation.
Zinc-plated mounting brackets resist corrosion, while the stainless-steel black finish blends seamlessly with most gate designs.
Maintenance-free, factory-sealed construction minimizes servicing requirements and ensures dependable operation over time.
Features a dual-threaded conduit fitting and junction box with four knockouts for convenient cable routing during installation.
Complete mounting hardware is included for typical installations, with optional brackets available for specialized mounting applications.
| MODEL NAME | E-942FC-1K3SQ 1,200-lb Electromagnetic Gate Lock, Face Mount, Weldable |
| PRODUCT TYPE | Electromagnetic Gate Lock |
| HOLDING FORCE | 1,200 lb (545 kg) |
| LOCK TYPE | Electromagnetic |
| MOUNTING TYPE | Face Mount |
| INSTALLATION METHOD | Weld or Bolt Mounting |
| APPLICATION | Swinging Gates |
| GATE COMPATIBILITY | Sliding or Swinging Gates |
| OPERATION MODE | Fail-safe |
| FAIL-SAFE FUNCTION | Releases when power is removed |
| INPUT VOLTAGE | 12VDC / 24VDC Selectable |
| VOLTAGE SELECTION | Selectable 12VDC or 24VDC |
| POWER TYPE | DC Power |
| SURGE PROTECTION | MOV Surge Protection |
| RESIDUAL MAGNETISM | No Residual Magnetism |
| WATERPROOF RATING | IP67 |
| WEATHER RESISTANCE | Waterproof |
| VANDAL RESISTANCE | Yes |
| INDOOR USE | Yes |
| OUTDOOR USE | Yes |
| HOUSING MATERIAL | Stainless Steel |
| HOUSING FINISH | Black Stainless-Steel Finish |
| CORROSION RESISTANCE | Yes |
| BRACKET MATERIAL | Zinc-Plated Steel |
| BRACKET FINISH | Zinc-Plated |
| MAGNET BRACKET | Included |
| ARMATURE BRACKET | Included |
| MOUNTING HARDWARE | Complete Hardware Included |
| JUNCTION BOX | Included |
| JUNCTION BOX KNOCKOUTS | 4 Knockouts |
| CONDUIT FITTING | Dual-Threaded |
| DESIGN | Factory-Sealed |
| MAINTENANCE | Maintenance-Free |
| MAGNETIC HOLD | High-Strength Electromagnetic Hold |
| LOCK RELEASE | Automatic Upon Power Loss |
| WIRING TYPE | Hardwired |
| INSTALLATION LOCATION | Gate Frame |
| SECURITY LEVEL | Heavy Duty |
| PRODUCT FINISH | Black |
| MAGNET HOUSING | Stainless Steel |
| FACE MOUNT DESIGN | Yes |
| OUTDOOR RATING | Suitable for Outdoor Applications |
| WEATHER PROTECTION | Water and Vandal Resistant |
| SEALING | Factory-Sealed Construction |
| MOUNTING OPTIONS | Face Mounted |
| COMPATIBLE ACCESSORIES | Additional Mounting Brackets Available |
| ARMATURE PLATE | Compatible |
| Z-BRACKET SUPPORT | Compatible |
| TYPICAL INSTALLATION | Commercial Gates |
| INDUSTRIAL APPLICATION | Yes |
| COMMERCIAL APPLICATION | Yes |
| RESIDENTIAL APPLICATION | Suitable for Secure Gates |
| ACCESS CONTROL COMPATIBLE | Yes |
| LOCK STATUS | Magnetically Secured While Powered |
| OPERATING PRINCIPLE | Electromagnetic Attraction |
| ENVIRONMENT | Indoor / Outdoor |
| DURABILITY | Heavy-Duty Construction |
| CORROSION PROTECTION | Zinc-Plated Mounting Brackets |
| WARRANTY | Lifetime Limited Warranty (USA & Canada) |
E-942FC-1K3SQ 1,200-lb Electromagnetic Gate Lock from SECO-LARM is designed to provide dependable perimeter security for swinging and sliding gates. Delivering an impressive 1,200 lb (545 kg) holding force, this outdoor-rated electromagnetic lock offers reliable fail-safe operation for commercial, industrial, and residential access control applications. Its maintenance-free, factory-sealed construction ensures long-lasting performance in demanding environments.
Built for Outdoor Security and Durability
Engineered for harsh weather conditions, the E-942FC-1K3SQ features an IP67 waterproof and vandal-resistant design with an attractive black stainless-steel finish that complements most gate installations. Zinc-plated mounting brackets can be welded or bolted directly to gates for flexible installation, while integrated MOV surge protection helps safeguard the lock against electrical surges.
- 1,200 lb (545 kg) magnetic holding force
- Fail-safe operation unlocks when power is removed
- IP67 waterproof and vandal-resistant construction
- No residual magnetism for reliable door release
- MOV surge protection for enhanced reliability
- Face-mount design for sliding and swinging gates
Flexible Installation and Access Control Integration
Operating on selectable 12VDC or 24VDC, this magnetic gate lock easily integrates with a wide variety of access control systems. The included junction box with four knockouts, dual-threaded conduit fitting, and complete mounting hardware simplify installation for security professionals. Additional mounting brackets are available for custom or non-standard gate configurations.
- Commercial and industrial gate access control
- Apartment complexes and gated communities
- Warehouse and facility perimeter security
- Residential driveway gate installations
The E-942FC-1K3SQ from SECO-LARM delivers dependable outdoor gate security with high holding strength, corrosion-resistant construction, and compatibility with modern access control systems. Its rugged design makes it an excellent solution for professional security installations requiring reliable long-term performance.
Technical Specifications
- Model: E-942FC-1K3SQ
- Holding Force: 1,200 lb (545 kg)
- Operation: Fail-safe (releases when power is removed)
- Power Input: 12VDC / 24VDC selectable
- Mounting: Face mount for swinging and sliding gates
- Protection: IP67 waterproof, vandal resistant, MOV surge protection
- Construction: Stainless-steel housing with black finish and zinc-plated brackets
- Installation: Weld or bolt brackets directly to gate, includes junction box and mounting hardware
- Maintenance: Factory-sealed, maintenance-free design
