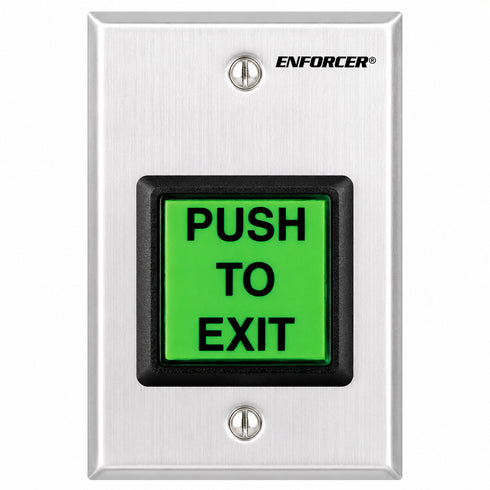

SD-7202GC-PEQ Square Illuminated Pushbutton Request to Exit Plate with Multilingual Inserts
The SD-7202GC-PEQ Square Illuminated Pushbutton Request to Exit Plate is designed for dependable access control applications requiring a durable and highly visible exit device. The large illuminated PUSH TO EXIT button improves user recognition in low-light environments, while interchangeable English, Spanish, and French inserts provide flexible multilingual installation. A long-life LED delivers over 50,000 hours of illumination and operates on 12 to 24VDC without requiring external resistors. The heavy-duty pushbutton is rated for 50A at 24VAC and includes color-coded wire leads with spade lugs for faster installation. A stainless steel single-gang mounting plate is included for professional commercial and industrial access control systems.
- Large illuminated PUSH TO EXIT button for clear visibility.
- English, Spanish, and French interchangeable message plates included.
- LED rated for over 50,000 hours of continuous illumination.
- Operates on 12 to 24VDC without external resistors.
- Includes stainless steel single-gang mounting plate and wire leads.
ETL listed and conforms to UL 294 requirements for dependable use in professional access control and egress systems.
Features a large illuminated pushbutton with a clear “PUSH TO EXIT” message for quick and intuitive operation.
Supports multilingual installations with interchangeable English, Spanish, and French message plates included.
Heavy-duty pushbutton is rated for up to 50A at 24VAC, providing reliable switching performance.
Bright integrated LED delivers more than 50,000 hours of illumination for long service life.
Operates on 12~24 VDC without requiring external resistors, simplifying installation.
Includes five color-coded 12-inch wire leads with easy-to-attach spade lugs for faster wiring.
Supplied with a durable stainless-steel single-gang mounting plate for a clean, professional appearance.
Illuminated design improves visibility in low-light environments, making the exit button easy to locate.
Ideal for use with access control systems in commercial buildings, offices, schools, healthcare facilities, and other secured entry points.
Designed for dependable request-to-exit operation while reducing installation time and maintenance requirements.
| MODEL NAME | SD-7202GC-PEQ Square Illuminated Pushbutton Request-to-Exit Plate |
| PRODUCT TYPE | Illuminated Request-to-Exit Pushbutton Plate |
| MANUFACTURER | SECO-LARM USA Inc. |
| MODEL NUMBER | SD-7202GC-PEQ |
| APPLICATION | Access control exit device |
| BUTTON TYPE | Square illuminated pushbutton |
| BUTTON FUNCTION | Momentary request-to-exit activation |
| BUTTON CAPTION | PUSH TO EXIT |
| ILLUMINATION | Integrated LED |
| LED LIFESPAN | Over 50,000 hours |
| OPERATING VOLTAGE | 12~24 VDC |
| VOLTAGE RANGE | 12VDC to 24VDC |
| RESISTORS REQUIRED | No |
| PUSHBUTTON CONTACT RATING | 50A @ 24VAC |
| CONTACT TYPE | High-current switch contacts |
| PLATE MATERIAL | Stainless steel |
| PLATE SIZE | Single-gang |
| MOUNTING TYPE | Single-gang wall mounting |
| WIRE LEADS INCLUDED | Yes |
| NUMBER OF WIRE LEADS | 5 |
| WIRE LENGTH | 12 inches |
| WIRE COLORS | Five colored leads |
| WIRE TERMINATION | Spade lugs |
| INSTALLATION | Fast installation with pre-attached spade lugs |
| MESSAGE LANGUAGE | English |
| ALTERNATE LANGUAGES | Spanish and French |
| INTERCHANGEABLE PLATES | Included |
| NUMBER OF MESSAGE PLATES | 3 |
| BUTTON VISIBILITY | Illuminated for enhanced visibility |
| INDICATOR TYPE | LED illumination |
| ACCESS CONTROL COMPATIBILITY | Yes |
| EXIT CONTROL | Request-to-exit operation |
| SUITABLE FOR | Commercial access control systems |
| INDOOR APPLICATION | Yes |
| COMMERCIAL USE | Yes |
| PUSHBUTTON STYLE | Large square button |
| BUTTON OPERATION | Manual press |
| FACEPLATE FINISH | Stainless steel finish |
| CERTIFICATION | ETL Listed |
| UL COMPLIANCE | Conforms to UL 294 |
| SAFETY STANDARD | UL Standard 294 |
| POWER REQUIREMENT | 12~24VDC |
| CURRENT RATING | 50A @ 24VAC |
| LED POWER SOURCE | 12~24VDC supply |
| MOUNTING PLATE INCLUDED | Yes |
| INSTALLATION HARDWARE | Single-gang stainless-steel plate included |
| LANGUAGE OPTIONS | English, Spanish, French |
| SWITCHING DEVICE | Illuminated exit pushbutton |
| EXIT LABEL | PUSH TO EXIT |
| ELECTRICAL CONNECTION | Pre-wired leads with spade connectors |
| DESIGN | Square illuminated exit button |
| CONSTRUCTION | Durable stainless-steel faceplate |
| STATUS INDICATION | LED illuminated button |
| ACCESSORY INCLUDED | Three interchangeable language plates |
| PRODUCT CATEGORY | Access Control Accessory |
| PRIMARY USE | Door release request-to-exit activation |
| MANUAL ACTIVATION | Yes |
| LOW-VOLTAGE OPERATION | Yes |
SD-7202GC-PEQ Square Illuminated Pushbutton Request-to-Exit Plate from SECO-LARM is a durable and reliable exit control solution designed for commercial access control systems. Featuring a large illuminated "PUSH TO EXIT" button, this request-to-exit (REX) plate improves visibility while providing dependable operation for high-traffic entry and exit points. Its stainless-steel single-gang faceplate and long-life LED illumination make it ideal for office buildings, schools, healthcare facilities, retail stores, and other secured environments.
Highly Visible and Easy to Install
The SD-7202GC-PEQ includes interchangeable message plates in English, Spanish, and French, allowing installers to quickly adapt the unit to multilingual environments. Designed for fast installation, it comes with five color-coded 12-inch wire leads equipped with easy-to-attach spade lugs. The integrated LED provides more than 50,000 hours of illumination while operating directly from 12~24VDC without requiring additional resistors.
- Large illuminated "PUSH TO EXIT" pushbutton
- Interchangeable English, Spanish, and French message plates included
- LED rated for over 50,000 hours of continuous illumination
- Operates on 12~24VDC with no external resistors required
- Five color-coded 12-inch wire leads with spade lugs for quick installation
Designed for Commercial Access Control
Certified to ETL standards and conforming to UL 294, this illuminated exit button is built for dependable performance in professional security installations. The heavy-duty pushbutton is rated at 50A @ 24VAC, making it suitable for integration with electric locks, maglocks, access controllers, and door release systems. The included stainless-steel single-gang mounting plate provides a clean, professional appearance while ensuring long-lasting durability.
- Commercial office buildings
- Educational and healthcare facilities
- Retail stores and shopping centers
- Access-controlled entry and exit doors
Security professionals looking for a high-visibility illuminated request-to-exit button can rely on the SD-7202GC-PEQ from SECO-LARM for dependable performance, multilingual flexibility, and easy integration with modern access control systems.
Technical Specifications
- Model: SD-7202GC-PEQ
- Product Type: Square Illuminated Request-to-Exit Plate
- Certification: ETL Listed, Conforms to UL 294
- Pushbutton Rating: 50A @ 24VAC
- Operating Voltage: 12~24VDC
- LED Life: Over 50,000 hours
- Message Plates: English, Spanish, and French included
- Wiring: Five 12-inch color-coded wire leads with spade lugs
- Faceplate: Stainless-steel single-gang plate included
