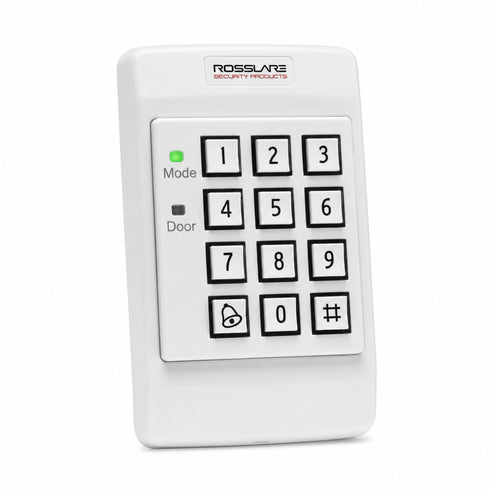

AC-D32 Standalone Proximity and PIN Access Controller for 500 Users Indoor Security

Rosslare AC-D32 Standalone Proximity & PIN Controller is a versatile access control solution designed for residential and commercial applications requiring secure and reliable entry management. Supporting up to 500 users, this standalone controller combines a built-in 125 kHz EM proximity reader with PIN code authentication, allowing access via card, PIN, or both for enhanced security and convenience.

Advanced Access Control with Flexible User Management

The AC-D32 offers multiple user levels and operating modes, making it suitable for a wide range of security environments. With support for Normal, Secure, and Master user levels and operational modes including Normal, Bypass, and Secure, administrators can easily customize access permissions to meet site requirements. The controller features lock strike relay outputs, Request-to-Exit (REX) input support, and auxiliary relay functions for expanded system integration.

• Supports up to 500 users
• Access via proximity card, PIN code, or both
• Built-in 125 kHz EM RFID proximity reader
• Compatible with all 26-Bit EM proximity cards
• Three user levels: Normal, Secure, and Master
• Three operating modes: Normal, Bypass, and Secure

Reliable Security Features and Easy Installation

Designed for dependable indoor operation, the AC-D32 includes built-in tamper protection for both the enclosure and wall mounting surface. Dual tri-colored LEDs and an internal buzzer provide clear visual and audible status indications. Installation is simplified with the included mounting template, security screw, and security screw tool. When paired with the optional BL-D40 accessory, the controller can support bell, chime, siren, and strobe functions.

• Internal case and wall tamper detection
• Dual tri-colored LED indicators and internal buzzer
• Request-to-Exit (REX) input support
• Auxiliary relay output for expanded functionality
• Includes mounting template and security hardware

Ideal for Residential and Commercial Applications

The Rosslare AC-D32 is well suited for office buildings, apartment complexes, gated entrances, storage facilities, and other indoor access control installations. Its compact design, flexible authentication options, and user-friendly programming make it an excellent choice for security professionals and installers seeking a dependable standalone access controller.

• Office and commercial building access control
• Apartment and residential entry systems
• Storage facilities and restricted areas
• Indoor security and access management applications

The Rosslare AC-D32 delivers reliable standalone access control with card and PIN authentication, robust tamper protection, and support for up to 500 users, making it a practical solution for a variety of indoor security installations.

Technical Specifications

• Model: AC-D32
• Operating Voltage: 12–16 VDC regulated power supply
• Current Consumption: 40 mA standby, 90 mA maximum
• User Capacity: Up to 500 users
• Card Technology: 125 kHz ASK EM RFID
• Card Compatibility: All 26-Bit EM proximity cards
• Maximum Read Range: 90 mm (3.5 in)
• Relay Outputs: Lock Strike Relay (3.5A), Auxiliary Relay Form C (1A)
• Inputs: REX, Auxiliary Input, Monitor Mode, Input Mode
• Indicators: Two tri-colored LEDs and internal buzzer
• User Levels: Normal, Secure, Master
• Operating Modes: Normal, Bypass, Secure
• RFI Protection: >20 V/m up to 1000 MHz
• Dimensions: 4.8 x 2.95 x 0.94 in
• Environment: Indoor Use
• Warranty: 2-Year Limited Manufacturer Warranty
