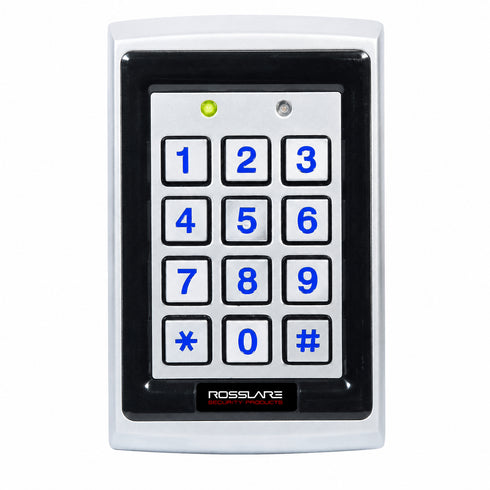

AYC-Q64B Outdoor RFID PIN Access Reader Controller 125kHz Weather Resistant Keypad
Professional outdoor access control reader and keypad designed for secure entry applications in commercial and industrial environments. Supports 125 kHz RFID credentials and PIN authentication with selectable Wiegand 26 Bit or Clock and Data output. Rugged anti vandal metal construction with blue backlit keypad ensures reliable operation in harsh indoor and outdoor conditions. Convertible functionality allows operation as a reader or standalone controller supporting up to 500 users when paired with compatible intelligent power supply units. Alfa Iris LLC is a trusted provider of professional CCTV surveillance and smart security systems, delivering advanced solutions for industrial, commercial, and high security environments.
- Supports 125 kHz RFID cards and 4 to 8 digit PIN authentication
- Weather resistant IP65 anti vandal metal housing for outdoor installation
- Convertible reader and standalone controller supporting up to 500 users
- Blue backlit keypad with tri color LEDs and integrated sounder
- Selectable Wiegand 26 Bit or Clock and Data communication output
Supports both 125 kHz EM RFID credentials and 4 to 8-digit PIN codes for flexible dual-authentication access control.
Operates as a standard proximity reader or converts into a standalone 500-user controller when paired with Rosslare PS-x25T intelligent power supply units.
Features a rugged anti-vandal metal housing with epoxy-filled sealed construction for reliable operation in harsh indoor and outdoor environments.
Equipped with large blue backlit metal keys that provide excellent visibility and easy nighttime operation.
Offers IP65-rated weather resistance, making it suitable for exposed exterior installations in commercial and industrial settings.
Includes dual tri-color LED indicators and a built-in sounder for intuitive programming feedback and user operation status.
Supports multiple output formats including Wiegand 26-Bit and Clock & Data for broad compatibility with access control systems.
Provides optical back tamper and cover tamper detection outputs to enhance security against unauthorized device removal or interference.
Delivers a maximum read range of up to 45 mm (1.8 inches) for convenient credential presentation and reliable performance.
Allows secure operation modes including Normal, Bypass, and Secure configurations to meet varying site security requirements.
Supports code-only, card-only, or combined card plus PIN authentication for customizable access management.
Designed with a user-friendly programming interface using keypad, LED indicators, and audible feedback for simplified setup and administration.
Operates on a flexible 5–16VDC input range, making integration easy across a wide variety of existing access control infrastructures.
Ideal for commercial buildings, gated facilities, industrial sites, warehouses, and high-security entry points requiring durable credential-based access control.
| MODEL NAME | Rosslare AYC-Q64B Anti-Vandal PROX & PIN Reader |
| BRAND | Rosslare |
| MODEL NUMBER | AYC-Q64B |
| PRODUCT TYPE | Convertible Proximity & PIN Reader / Standalone Controller |
| RFID FREQUENCY | 125 kHz EM RFID |
| CARD COMPATIBILITY | EM 26-Bit RFID Cards & Tags |
| CREDENTIAL TYPES | PIN Code and RFID Card |
| PIN LENGTH | 4 to 8 Digits |
| USER CAPACITY | 500 Users |
| OPERATING MODE | Reader or Standalone Controller |
| CONTROLLER TYPE | Convertible Access Control Reader |
| COMPATIBLE POWER SUPPLY | Rosslare PS-x25T Intelligent Power Supply |
| INPUT VOLTAGE | 5–16 VDC |
| INPUT CURRENT | 90 mA at 12VDC |
| MAX INPUT CURRENT | 130 mA at 16VDC |
| READ RANGE | Up to 45 mm (1.8 in.) |
| MODULATION TYPE | ASK at 125 kHz |
| READER FORMAT | Wiegand 26-Bit / Clock & Data |
| CARD FORMAT | Selectable Wiegand 26-Bit or Clock & Data |
| KEYPAD TYPE | 3x4 Backlit Metal Keypad |
| KEYPAD ILLUMINATION | Blue Backlit Keys |
| KEY MATERIAL | Metal |
| HOUSING MATERIAL | Metal Epoxy-Filled Enclosure |
| ENCLOSURE TYPE | Fully Sealed Rugged Housing |
| DESIGN STYLE | Anti-Vandal Slim Design |
| WEATHER RESISTANCE | Suitable for Indoor and Outdoor Use |
| IP RATING | IP65 |
| ENVIRONMENTAL PROTECTION | Dustproof and Water Resistant |
| INSTALLATION LOCATION | Indoor or Outdoor |
| ANTI-VANDAL PROTECTION | Yes |
| TAMPER DETECTION | Optical Back and Cover Tamper Detection |
| TAMPER OUTPUT | O.C. Active Low, 32mA Max Sink Current |
| LED INDICATORS | Dual Tri-Color LEDs |
| AUDIO INDICATOR | Built-In Sounder / Buzzer |
| LED CONTROL | Dry Contact N.O. |
| PROGRAMMING METHOD | Keypad Programming with LED & Sounder Feedback |
| MENU TYPE | User-Friendly Keypad Menu |
| SECURITY MODES | Normal, Bypass, Secure |
| USER LEVELS | Normal, Secure, Master |
| ACCESS MODES | Card Only, PIN Only, Card + PIN |
| CREDENTIAL COMBINATION | Dual Code/Card or Code + Card |
| FACILITY CODE | Programmable |
| OUTPUT TYPE | Multi-Format Reader Output |
| CONTROLLER CONVERSION | Automatic with PS-x25T Power Supply |
| RELAY SUPPORT | Secure Relays Through PS-x25T |
| APPLICATION | Access Control Systems |
| USE CASE | Commercial and Residential Entry Control |
| MOUNTING STYLE | Surface Mount |
| OPERATING ENVIRONMENT | Harsh Indoor & Outdoor Environments |
| CONSTRUCTION TYPE | Heavy-Duty Anti-Vandal Construction |
| SEALING TYPE | Epoxy Potted and Fully Sealed |
| DIMENSIONS | 120 x 76 x 21 mm (4.7 x 3 x 0.8 in.) |
| COLOR | Metallic Finish with Blue Illumination |
| INDICATOR TYPE | Visual and Audible Indicators |
| BACKLIGHT TYPE | Blue LED Backlighting |
| COMMUNICATION OUTPUT | Wiegand / Clock & Data |
| ACCESS CONTROL SUPPORT | Supports Standard Controllers |
| DEFAULT OPERATION | Multi-Format Reader |
| CONVERTIBLE FUNCTION | Reader to Standalone Controller |
| RELAY INTEGRATION | Compatible with Intelligent Relay Units |
| PROXIMITY TECHNOLOGY | EM RFID Proximity |
| RFID TYPE | 125 kHz EM Type |
| VISIBILITY | Highly Visible Illuminated Keypad |
| ACCESS SECURITY | Enhanced PIN & Card Authentication |
| MANUFACTURER WARRANTY | 5-Year Limited Warranty |
| SKU | ROS-AYC-Q64B |
| NSID | 25290 |
| PRODUCT CATEGORY | Access Control Reader & Keypad |
| SUPPORTED INSTALLATIONS | Standalone or Networked Systems |
| OPERATING INTERFACE | Keypad, LEDs, and Sounder |
| PROTECTION FEATURES | Optical Tamper Protection |
| OUTDOOR SUITABILITY | Yes |
| COMMERCIAL GRADE | Yes |
| METAL KEYPAD | Yes |
| BUILT-IN BUZZER | Yes |
| BLUE ILLUMINATED KEYS | Yes |
| ACCESS TECHNOLOGY | RFID & PIN Combination Access |
Rosslare Q64B Anti-Vandal PROX & PIN Reader is a rugged and versatile access control solution designed for both indoor and outdoor installations. Featuring support for 125 kHz EM RFID credentials and 4 to 8-digit PIN codes, this reader delivers secure dual-authentication access control for commercial buildings, gated communities, industrial sites, and residential properties. Its convertible design allows operation as a standard reader or as a 500-user standalone controller when paired with Rosslare intelligent power supply units.
Durable Anti-Vandal Design for Harsh Environments
Built with a sealed metallic epoxy-filled housing and illuminated blue metal keypad, the Rosslare Q64B is engineered for reliable performance in demanding environments. The IP65-rated weather-resistant construction protects against dust, rain, and vandalism, making it ideal for outdoor installations. Dual tri-colored LEDs and an integrated buzzer provide clear visual and audio feedback during operation and programming.
- Supports 125 kHz EM RFID cards and tags
- Accepts 4 to 8-digit PIN credentials
- Convertible reader or standalone 500-user controller
- Blue backlit anti-vandal metal keypad
- IP65-rated weather-resistant housing
Flexible Integration with Access Control Systems
The Q64B operates as a multi-format reader supporting Wiegand 26-Bit and Clock & Data outputs, ensuring compatibility with a wide range of commercial access control systems. When connected to Rosslare’s PS-x25T intelligent power supply family, it automatically converts into a fully functional standalone controller with secure relay management and support for up to 500 users.
- Compatible with standard access controllers
- Selectable Wiegand 26-Bit or Clock & Data output
- Supports code only, card only, or code + card authentication
- Programmable facility codes and security modes
- Built-in tamper detection for enhanced security
Reliable Security for Commercial and Residential Applications
Designed for professional installers and security integrators, the Rosslare Q64B provides dependable access control for office buildings, apartment complexes, warehouses, parking gates, and perimeter security applications. Its durable construction, flexible operation modes, and advanced credential support make it an excellent choice for modern security systems.
- Commercial office and warehouse access control
- Apartment buildings and gated communities
- Industrial facilities and perimeter entry points
- Outdoor gates and secured entrances
Security professionals looking for a durable outdoor RFID and PIN reader can rely on the Rosslare Q64B for dependable performance, vandal-resistant protection, and seamless integration with professional access control systems.
Technical Specifications
- Model: AYC-Q64B
- Credential Support: 125 kHz EM RFID Cards & PIN Codes
- PIN Length: 4 to 8 Digits
- Controller Capacity: 500 Users
- Output Formats: Wiegand 26-Bit / Clock & Data
- Operating Voltage: 5–16VDC
- Current Consumption: 90 mA at 12VDC
- Maximum Read Range: 45 mm (1.8 in.)
- Tamper Protection: Optical Back and Cover Tamper Detection
- Audio/Visual Indicators: Dual Tri-Color LEDs and Built-in Buzzer
- Construction: Epoxy Potted Metal Housing with Backlit Metal Keys
- Weather Rating: IP65
- Dimensions: 120 x 76 x 21 mm (4.7 x 3 x 0.8 in.)
- Warranty: 5-Year Limited Manufacturer Warranty
