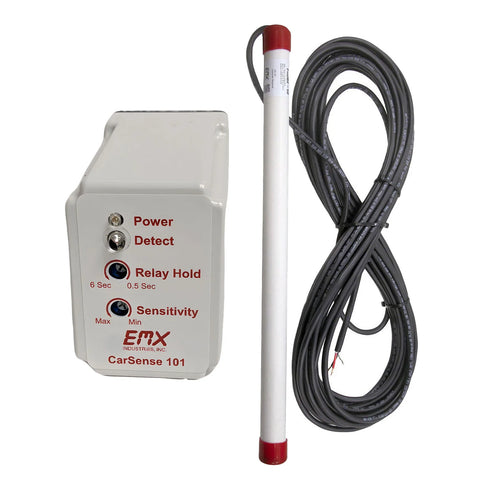

EMX 2101 CS101 Vehicle Motion Detector and Probe System for Gate Access

EMX CS101 CarSense 101 Vehicle Motion Detector is a reliable vehicle detection system designed for access control, security, and safety applications. The system consists of a compact control module with an 11-pin connector and a buried sensing probe available with 50', 100', 150', or 200' lead lengths. Ideal for automatic gates, overhead doors, parking barriers, and traffic management systems, the CS101 accurately detects moving vehicles while remaining protected below ground for long-term performance.

Reliable Vehicle Detection for Security and Access Control

The EMX CS101 provides dependable vehicle motion detection for a variety of applications. It can activate warning lights in blind driving areas, trigger alarms or surveillance equipment when unauthorized vehicle movement is detected, and provide free-exit detection for automatic gates and barrier systems. Its low standby current consumption makes it an excellent solution for solar-powered installations, while surge protection ensures dependable operation in demanding environments.

• Detects moving vehicles for security and access control
• Ideal for automatic gates, overhead doors, and parking barriers
• Available sensing probe lead lengths: 50', 100', 150', or 200'
• Low 2.5mA standby current for energy-efficient and solar-powered systems
• Front-panel controls and indicators for easy setup and adjustment
• Built-in surge protection for enhanced reliability
• Made in the USA

Easy Installation and Flexible Integration

Designed for quick installation, the control module features a compact relay-style housing with accessible front-panel controls for sensitivity and off-delay adjustments. The buried PVC sensing probe is fully sealed for direct burial, providing reliable operation in outdoor environments while remaining protected from tampering and weather. Compatible with a wide range of gate operators, security systems, and access control panels, the CS101 easily integrates into new or existing installations.

• Automatic gate and gate operator systems
• Commercial and residential access control
• Parking gates and barrier gate operators
• Vehicle security monitoring and alarm activation
• Traffic warning and safety systems

The EMX CS101 CarSense 101 Vehicle Motion Detector delivers dependable vehicle detection, simple installation, and versatile integration for professional access control and security applications. Its low power consumption, adjustable sensitivity, and rugged buried probe design make it an excellent choice for commercial, industrial, and residential vehicle detection systems.

Technical Specifications

• Model: EMX CS101 CarSense 101
• System Components: Control Module and Buried Sensing Probe
• Probe Lead Length Options: 50', 100', 150', or 200'
• Power Supply: 9–41 VDC, 6–29 VAC, or 110 VAC
• Power Supply Tolerance: ±20%
• Standby Current: 2.5mA maximum
• Detection Current: 50mA maximum
• Relay Type: DPDT
• Relay Rating: 1A at 24VDC / 120VAC
• Sensitivity: Adjustable High / Low with continuous control
• Off Delay: Adjustable from 1 to 5 seconds
• Operating Temperature: -40°F to 170°F (Control Unit and Probe)
• Indicators: Green Power LED and Red Detect LED
• Surge Protection: MOV, neon, and silicon protection devices
• Control Housing: Break-resistant polycarbonate (2.2" H × 1.6" W × 3.25" D)
• Connector: Standard 11-pin (86CP11)
• Probe Construction: PVC waterproof housing with shielded direct-burial cable
• Country of Manufacture: Made in USA
