Z5R6552X 5MP Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
The Z5R6552X IP Dome Camera delivers exceptional 5MP resolution with advanced image processing for clear visuals in any lighting condition. Featuring a motorized zoom lens with auto focus, 3D noise reduction, and true day and night functionality, this camera ensures reliable monitoring around the clock. Designed with IP67 weatherproof and IK10 vandal-resistant housing, it is ideal for both indoor and outdoor surveillance. The camera supports H.265 compression, SD card recording, ONVIF compatibility, and PoE power, offering flexible installation and efficient operation for professional security applications.
- 5MP high-resolution CMOS sensor for superior image quality
- Motorized 2.8–8mm lens with auto focus for flexible coverage
- IR illumination up to 30 meters for clear night vision
- IP67 and IK10 rated for weather and vandal resistance
- Supports H.265 compression and ONVIF Profile S integration
Delivers high-resolution surveillance with a 5MP CMOS image sensor (2592×1920) for crisp and detailed video capture.
Supports advanced H.265/HEVC and H.264 video compression for efficient storage and bandwidth usage.
Equipped with a 2.8–8mm motorized zoom lens and auto focus capability for versatile viewing angles and ease of installation.
Features 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB for enhanced image clarity in challenging lighting conditions.
Integrated IR LEDs provide up to 30 meters of night vision, ensuring reliable performance in complete darkness.
Designed for 24/7 operation with day & night functionality through a removable IR-cut filter.
Boasts vandal-resistant IK10 and IP67 weatherproof housing for protection in harsh environments.
Compliant with ONVIF Profile S for seamless integration with third-party systems and devices.
Allows up to 7 simultaneous users with multi-streaming support for flexible monitoring options.
Supports SD card recording for local video storage (SD card not included).
Offers a wide field of view with horizontal angles from 90.6° to 53.3° and vertical angles from 66.8° to 39.8°.
Operates reliably in extreme temperatures from -30°C to +50°C, suitable for various climates.
Dual power support with DC12V and PoE (Max 10W) for flexible installation scenarios.
Compact and lightweight design with dimensions Ø115 × 91 mm and a weight of 435g.
Backed by CE and FCC certifications and includes a 2-year warranty for added peace of mind.
| MODEL NAME | Z5R6552X 5MP Day & Night Auto Focus IR Vandal Resistant IP Dome Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS (2592×1920) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS TYPE | Motorized Zoom & Auto Focus (2.8–8mm, F1.6) |
| VIEWING ANGLE | 90.6°–53.3° (H), 66.8°–39.8° (V), 114.3°–66.4° (D) |
| WDR | 2D WDR, DWDR up to 100dB |
| NOISE REDUCTION | 3D MCTF |
| DAY & NIGHT FUNCTION | IR Cut Removable |
| IR RANGE | 30m (850nm) |
| MIN. ILLUMINATION | 0.05 Lux (Color), 0.007 Lux (B/W), 0 Lux (IR) |
| MAX IR DISTANCE | 30m |
| SENSOR SIZE | 1/2.7" CMOS |
| RESOLUTION OPTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| MAX FRAME RATE | Up to 20 fps @ 2592×1920 |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 10W |
| DIMENSIONS | Ø115 × 91 mm |
| WEIGHT | 435g |
| VANDAL RESISTANCE | IK10 |
| WEATHERPROOF RATING | IP67 |
| ONVIF SUPPORT | Profile S |
| USERS | 7 simultaneous users, multi-streaming |
| SD CARD SUPPORT | Yes (card not included) |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R6552X 5MP Day & Night Auto Focus IR Vandal Resistant IP Dome Camera from LILIN delivers high-resolution surveillance with advanced imaging technologies and robust construction. This turret-style IP camera features a 5MP CMOS sensor and motorized zoom lens, ideal for demanding security environments requiring clarity, durability, and adaptability.
High-Performance Imaging and Night Vision
The Z5R6552X provides exceptional video quality with H.265/HEVC & H.264 compression and supports multiple resolutions and streaming for optimized bandwidth. Equipped with IR LEDs up to 30m, it ensures visibility in complete darkness. Advanced features like 3D Noise Reduction (MCTF) and DWDR up to 100dB enhance image clarity in challenging lighting.
- 5MP CMOS image sensor (2592×1920 resolution)
- Motorized 2.8–8mm zoom lens with auto focus
- 3D Noise Reduction (MCTF) and 2D/DWDR support
- IR LED range up to 30 meters (850nm wavelength)
- ONVIF Profile S compatibility and multi-streaming
Durable and Secure for Any Environment
Built with IK10 vandal resistance and IP67 weatherproof housing, the Z5R6552X is designed for outdoor or indoor use under harsh conditions. Its removable IR cut filter supports day/night switching, while support for SD card recording provides local storage options. Power is supplied via DC12V or PoE for flexible installation.
- Vandal Resistant (IK10), Weatherproof (IP67)
- Supports up to 7 simultaneous users
- SD card recording capability (card not included)
- Power input: DC12V / PoE, Max 10W
- Operating temperature: -30°C ~ +50°C
Security integrators and surveillance professionals will find the Z5R6552X from LILIN a reliable solution for high-risk, high-traffic environments. Its versatile imaging options and rugged design make it ideal for commercial, industrial, and public sector deployments.
Technical Specifications
- Model: Z5R6552X
- Image Sensor: 1/2.7" CMOS, 5MP
- Min. Illumination: 0.05 Lux (Color), 0.007 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–8mm motorized, F1.6
- Angle of View: H: 90.6°–53.3°, V: 66.8°–39.8°, D: 114.3°–66.4°
- IR Range: 30 meters
- Video Compression: H.265, H.264, MJPEG
- Resolution Options: 5MP to CIF
- Frame Rate: Up to 20 fps @ 2592×1920
- Power: DC12V / PoE, Max 10W
- Dimensions: Ø115 × 91 mm
- Weight: 435g
- Certifications: CE, FCC
- Warranty: 2 Years
Related products
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: IP Bullet Camera
VENDOR: LILIN
P2R6552E2-I is a 5MP dome camera designed for professional surveillance, delivering clear high-definition video even in low light. Equipped with advanced H.265 compression, this camera ensures efficient bandwidth use while maintaining superior image quality. Its robust aluminum housing provides IP67...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: IP Turret Camera
VENDOR: LILIN

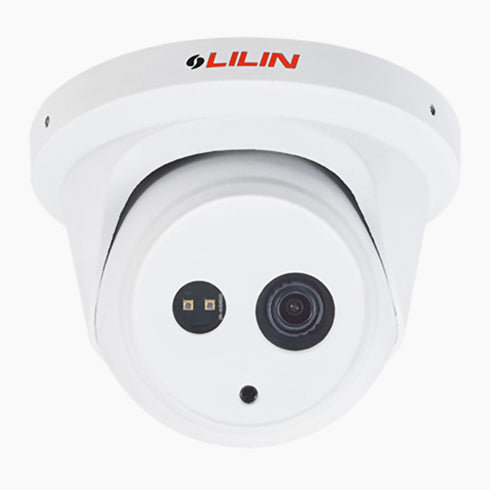

The P2R6522E2 IP turret camera delivers clear full HD 1080p video with advanced H.265 compression for efficient streaming. Designed for all-day performance, it features an IR cut filter for true day and night functionality, providing up to 30 meters of...
