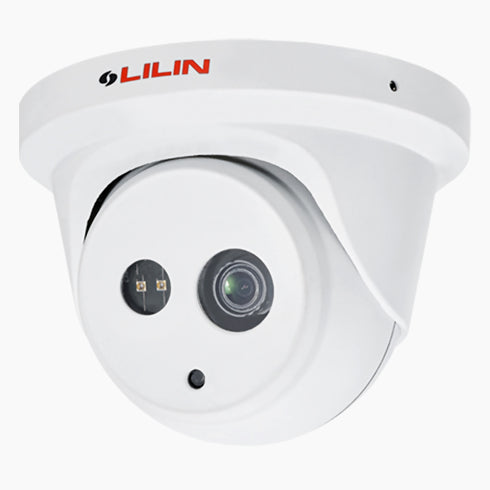

Z5R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
This professional 2MP IP turret camera delivers crystal clear 1080P video with superior low-light performance. Featuring a motorized zoom lens, automatic focus, and IR illumination up to 30 meters, it ensures detailed monitoring day and night. Designed with vandal-resistant IK10 housing and IP67 weatherproof protection, it’s ideal for both indoor and outdoor surveillance. Advanced features such as H.265 compression, 3D noise reduction, and multi-streaming enhance performance and efficiency, making it perfect for security installations requiring reliability and clarity.
- 2MP resolution with H.265 compression for clear, efficient video
- Motorized 2.8–8mm lens with auto focus
- IR range up to 30 meters for night vision
- IK10 vandal resistant and IP67 weatherproof rating
- Supports PoE and multi-streaming for flexible installation
Delivers Full HD 1080p resolution using a 2MP CMOS image sensor for high-quality video surveillance.
Supports advanced H.265/HEVC and H.264 compression to reduce bandwidth usage and storage costs.
Features a motorized 2.8–8mm zoom lens with auto focus for flexible and precise viewing angle adjustments.
Incorporates 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB for improved image clarity in varying lighting conditions.
Equipped with IR LEDs providing night vision up to 30 meters, enhancing visibility in complete darkness.
Day & Night functionality with removable IR cut filter ensures true color rendering during daylight and high performance in low light.
Built to withstand harsh environments with IK10 vandal resistance and IP67 weatherproof rating.
Compliant with ONVIF Profile S, allowing seamless integration with third-party systems.
Supports up to 7 simultaneous users with multi-streaming for efficient video distribution.
Includes integrated support for the LILIN Pro mobile app, compatible with iOS and Android platforms.
Operates in extreme temperatures from -30°C to +50°C, suitable for diverse installations.
Dual power options: DC12V or PoE, providing flexible installation scenarios with a maximum power consumption of 9.1W.
Compact and lightweight design with dimensions Ø115 × 91 mm and 435g weight for easy mounting.
Certified by CE and FCC, ensuring compliance with international safety and performance standards.
Comes with a 2-year warranty for added peace of mind and product reliability.
| MODEL NAME | Z5R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 2MP CMOS image sensor (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | Motorized Zoom & Auto Focus Lens (2.8–8mm), F1.6 |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| WDR | 2D WDR, DWDR up to 100dB |
| IR RANGE | IR LEDs with 30m range (850nm) |
| DAY & NIGHT FUNCTION | IR cut removable |
| VANDAL RESISTANCE | IK10 |
| WEATHERPROOF RATING | IP67 |
| ONVIF SUPPORT | Profile S |
| SIMULTANEOUS USERS | 7 |
| MULTI-STREAMING | Supported |
| MOBILE APP SUPPORT | LILIN Pro (iOS, Android) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 96°–59° (H), 52.2°–33.1° (V), 112.4°–68.3° (D) |
| SENSOR SIZE | 1/2.7" |
| RESOLUTIONS SUPPORTED | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 30 fps @ 1080p |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9.1W |
| DIMENSIONS | Ø115 × 91 mm |
| WEIGHT | 435g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera from LILIN delivers professional-grade surveillance with high-definition 2MP resolution and robust environmental protection. Designed for both indoor and outdoor use, this IP turret camera features motorized zoom and auto-focus capabilities, ensuring optimal image clarity in diverse lighting conditions.
Advanced Imaging and Day/Night Performance
Equipped with a 2MP CMOS sensor and supporting H.265/HEVC & H.264 video compression, the Z5R6522X provides efficient bandwidth usage without compromising image quality. The camera includes 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB for enhanced clarity. Its IR LEDs offer a 30-meter range for excellent visibility in complete darkness, aided by a removable IR-cut filter for true Day & Night functionality.
- 2MP resolution (1920x1080) with H.265 compression
- Motorized 2.8–8mm lens with auto-focus
- IR night vision up to 30 meters
- Weatherproof IP67 and Vandal Resistant IK10
- Supports ONVIF Profile S for integration
- 7 simultaneous users with multi-streaming
- LILIN Pro mobile app support (iOS/Android)
Versatile and Secure Surveillance Solution
The Z5R6522X is ideal for commercial, industrial, and public security environments. It operates reliably in extreme temperatures and integrates easily with existing IP systems. The camera supports both DC12V and PoE power input, simplifying installation and reducing cabling requirements. With rugged construction and advanced features, it meets the needs of modern surveillance deployments.
- Model: Z5R6522X
- Sensor: 1/2.7" CMOS, 2MP
- Lens: 2.8–8mm motorized, F1.6
- Field of View: 96°–59° (H), 52.2°–33.1° (V), 112.4°–68.3° (D)
- Min. Illumination: 0.01 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR)
- Video Compression: H.265, H.264, MJPEG
- Resolution: 2MP / 1.3MP / 1MP / D1 / VGA / CIF
- Frame Rate: up to 30 fps @ 1080p
- Power: DC12V / PoE, Max 9.1W
- Operating Temperature: -30°C ~ +50°C
- Dimensions: Ø115 × 91 mm
- Weight: 435g
- Certifications: CE, FCC
- Warranty: 2 Years
Related products
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: IP Bullet Camera
VENDOR: LILIN
P2R6552E2-I is a 5MP dome camera designed for professional surveillance, delivering clear high-definition video even in low light. Equipped with advanced H.265 compression, this camera ensures efficient bandwidth use while maintaining superior image quality. Its robust aluminum housing provides IP67...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: IP Turret Camera
VENDOR: LILIN
The P2R6522E2 IP turret camera delivers clear full HD 1080p video with advanced H.265 compression for efficient streaming. Designed for all-day performance, it features an IR cut filter for true day and night functionality, providing up to 30 meters of...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: IP Turret Camera
VENDOR: LILIN

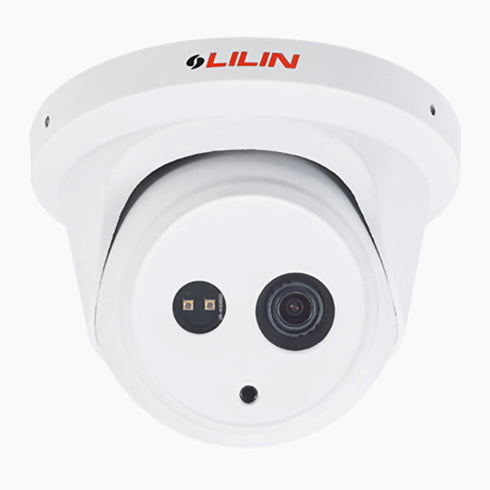

<p>The P2R6522E4 is a 2MP dome IP camera designed for demanding surveillance environments. It delivers Full HD resolution with exceptional clarity, supporting H.265/H.264 compression for optimized bandwidth. Equipped with a 4mm fixed lens and up to 30m infrared illumination, it...
