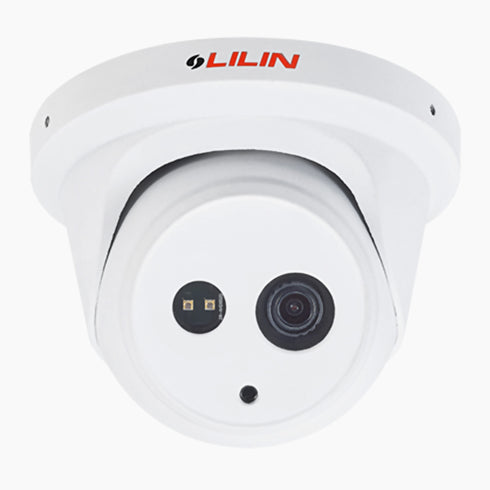

Z2R6552X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z2R6552X is a 5MP day and night dome IP camera engineered for reliable, high-definition surveillance in challenging environments. It features a 1/2.8" CMOS sensor that delivers crystal-clear images up to 2592×1944 resolution. With a motorized 2.8–8mm autofocus lens, HDR 120dB, and advanced noise reduction, it ensures superior image quality in both bright and low-light conditions. This camera supports intelligent video analytics, tamper detection, and remote monitoring through ONVIF compatibility, making it ideal for professional security systems requiring performance and durability.
- 5MP resolution with 1/2.8" CMOS sensor
- Motorized 2.8–8mm autofocus lens
- HDR 120dB and 3D noise reduction
- 30m IR range with day and night functionality
- IP67 weatherproof and IK10 vandal resistant
Delivers crystal-clear 5MP resolution with a CMOS sensor, supporting Full HD up to 2592×1944 for superior image detail.
Utilizes advanced H.265/HEVC and H.264 video compression to optimize bandwidth and storage efficiency.
Equipped with a motorized 2.8–8mm zoom lens and auto focus functionality for flexible and precise viewing adjustments.
Supports Smart H.264/H.265 encoding for improved compression efficiency during motion events.
Integrates 3D Noise Reduction (MCTF), 2D Wide Dynamic Range, and HDR 120dB to enhance image clarity in varying lighting conditions.
Features intelligent video analytics including Digital PTZ, IVS, and Smart Event detection for proactive surveillance.
Detects tampering, motion, and network loss, ensuring constant monitoring and operational alerts.
Built-in IR LEDs provide up to 30 meters of night vision with 850nm infrared wavelength for clear nighttime imaging.
Day & Night capability with removable IR cut filter for seamless transitions between lighting environments.
Complies with ONVIF Profiles S and T for broad compatibility with third-party systems and devices.
Encased in a vandal resistant IK10-rated housing and IP67 weatherproof design for harsh outdoor environments.
Low-light performance down to 0.01 Lux (Color) and 0.005 Lux (B/W), with true 0 Lux under IR for complete darkness surveillance.
Operates reliably in extreme temperatures ranging from -40°C to +50°C, suitable for diverse climates.
Supports flexible power input via DC12V or PoE, with a maximum power consumption of 9.8W.
Certified by CE and FCC standards, ensuring regulatory compliance and quality assurance.
| MODEL NAME | Z2R6552X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| MAX RESOLUTION | 5MP (2592×1944) @ 25 FPS |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| LENS | 2.8–8mm motorized, F1.6 |
| FOCUS | Auto Focus |
| ZOOM | Motorized Zoom |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| IR DISTANCE | 30m (850nm) |
| DAY & NIGHT | IR cut removable |
| WIDE DYNAMIC RANGE | 2D WDR, HDR 120dB |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DIGITAL ZOOM | Digital PTZ |
| SMART FEATURES | IVS, Smart Event |
| EVENT DETECTION | Tampering / Motion / Network Lost Detection |
| ONVIF SUPPORT | Profiles S/T supported |
| VIEW ANGLE (H) | 95.3°–51.8° |
| VIEW ANGLE (V) | 69.4°–38.6° |
| VIEW ANGLE (D) | 124.2°–64.6° |
| WEATHERPROOF | IP67 |
| VANDAL RESISTANT | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9.8W |
| DIMENSIONS | Ø115 × 91 mm |
| WEIGHT | 435g |
| CERTIFICATIONS | CE, FCC |
Z2R6552X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera from LILIN delivers high-definition surveillance with advanced imaging technology and smart features. Designed for both day and night monitoring, this camera features a 5MP CMOS sensor, motorized zoom lens, and infrared illumination up to 30 meters, making it ideal for critical security installations.
High-Resolution Imaging and Intelligent Features
Equipped with a 2.8–8mm motorized auto-focus lens, the Z2R6552X provides crystal-clear video at resolutions up to 2592×1944. It supports H.265/H.264 compression to optimize bandwidth without compromising video quality. Integrated 3D noise reduction, 2D WDR, and HDR (120dB) ensure clarity in varied lighting conditions. Additional smart functionalities include digital PTZ, intelligent video surveillance (IVS), and tampering, motion, and network loss detection.
- 5MP CMOS, Full HD 2592×1944 resolution
- H.265/HEVC & H.264 compression
- 2.8–8mm motorized zoom lens with auto-focus
- Smart H.264/H.265 encoding
- 3D Noise Reduction, 2D WDR, HDR 120dB
- Digital PTZ and intelligent video analysis
- IR LEDs for 30m night vision (850nm)
- Weatherproof IP67 and vandal resistant IK10 housing
- ONVIF Profiles S/T compatibility
Reliable in Harsh Environments
Built to perform in extreme temperatures from -40°C to +50°C, the Z2R6552X ensures dependable operation in outdoor settings. Its IP67-rated housing protects against water and dust, while IK10 certification resists vandalism. The camera is powered via DC12V or PoE, drawing a maximum of 9.8W, making installation flexible and convenient for security integrators.
- Temperature Range: -40°C ~ +50°C
- Power Supply: DC12V / PoE, Max 9.8W
- Infrared Distance: Up to 30 meters
- Compact Dimensions: Ø115 × 91 mm
- Weight: 435g
- Complies with CE and FCC standards
Professionals looking for a durable, high-performance IP camera will find the Z2R6552X from LILIN to be a reliable choice for a wide range of surveillance applications including commercial buildings, public infrastructure, and critical access points.
