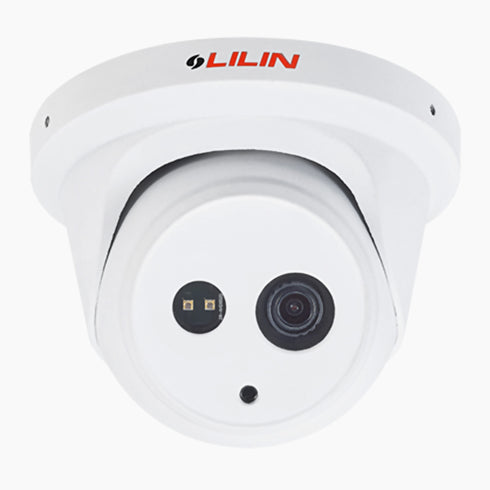

Z2R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z2R6522X delivers superior 1080p HD surveillance with a high-performance 2MP CMOS sensor and advanced H.265 compression. Featuring motorized zoom and auto focus, it ensures clear details for diverse monitoring needs. The camera supports day and night operation with IR illumination up to 30 meters, providing optimal visibility even in complete darkness. With intelligent video analytics, weatherproof IP67 rating, and vandal-resistant IK10 design, this camera is ideal for reliable security in both indoor and outdoor environments.
- 2MP CMOS sensor with 1080p resolution at 60 FPS
- Motorized 2.8–8mm zoom lens with auto focus
- IR night vision up to 30 meters range
- Weatherproof IP67 and vandal resistant IK10 design
- Smart H.265 compression with advanced event detection
Delivers Full HD 1080p resolution at 60 frames per second for crisp and smooth video capture.
Equipped with a 2MP 1/2.8" CMOS sensor that ensures high image quality with 1945×1097 effective pixels.
Supports H.265/HEVC and H.264 compression for efficient video storage and bandwidth savings.
Features a motorized 2.8–8mm zoom lens with auto focus for flexible and precise viewing angles.
Offers advanced image enhancements including 3D Noise Reduction (MCTF), 2D WDR, and 120dB HDR for improved clarity in challenging lighting.
Includes IR LEDs with a 30-meter range, enabling clear night vision with Day & Night functionality using a removable IR cut filter.
Supports intelligent video features such as Digital PTZ, IVS, and Smart Event detection including tampering, motion, and network loss.
Complies with ONVIF Profiles S and T, ensuring compatibility with a wide range of NVRs and VMS platforms.
Encased in a weatherproof IP67 and vandal resistant IK10 rated housing, suitable for harsh environments.
Operates reliably in extreme temperatures from -40°C to +50°C, ideal for both indoor and outdoor installations.
Dual power options via DC12V or PoE with a maximum power consumption of 9.8W for installation flexibility.
Compact form factor with dimensions of Ø115 × 91 mm and a weight of 435g for discreet surveillance setup.
Certified with CE and FCC standards for safety and compliance in international markets.
| MODEL NAME | Z2R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 2MP CMOS, 1945×1097 pixels |
| RESOLUTION | 1920×1080 @ 60 FPS |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART CODEC | Smart H.264/H.265 supported |
| FRAME RATE | 60 FPS |
| MIN. ILLUMINATION | 0.007 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| LENS | 2.8–8mm motorized, F1.6 |
| FOCUS | Auto Focus |
| ZOOM | Motorized Zoom |
| ANGLE OF VIEW | 108.1°–56.7° (H), 57.6°–31.6° (V), 130.4°–64.8° (D) |
| IR DISTANCE | 30m |
| IR WAVELENGTH | 850nm |
| DAY & NIGHT | IR cut removable |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DYNAMIC RANGE | 2D WDR, HDR 120dB |
| DIGITAL PTZ | Supported |
| SMART FUNCTIONS | IVS, Smart Event |
| EVENT DETECTION | Tampering, Motion, Network Lost Detection |
| ONVIF | Profiles S/T supported |
| INGRESS PROTECTION | IP67 |
| VANDAL RESISTANCE | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9.8W |
| DIMENSIONS | Ø115 × 91 mm |
| WEIGHT | 435g |
| CERTIFICATIONS | CE, FCC |
Z2R6522X 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera from LILIN delivers high-definition surveillance with robust features tailored for challenging environments. With a 2MP CMOS sensor and Full HD 1080p @ 60FPS capability, it ensures clear and smooth video quality for demanding security applications.
Advanced Imaging and Smart Surveillance
Equipped with a motorized zoom and auto focus lens (2.8–8mm), the Z2R6522X offers flexibility in field of view and precise focus control. It supports Smart H.264/H.265 compression, 3D noise reduction, and HDR 120dB for enhanced clarity in variable lighting. With smart detection capabilities including tampering, motion, and network loss detection, this camera is ideal for critical security environments.
- 2MP CMOS sensor, 1080p resolution at 60FPS
- Motorized zoom lens (2.8–8mm) with auto focus
- Smart H.264/H.265 video compression
- 3D Noise Reduction (MCTF), HDR 120dB
- IVS, digital PTZ, and smart event support
- IR night vision up to 30m (850nm)
- Day & Night with removable IR cut filter
- ONVIF Profiles S/T compliance
- Weatherproof (IP67) and Vandal Resistant (IK10)
Reliable Performance and Integration
Designed for diverse installation scenarios, the Z2R6522X is ONVIF compatible and supports both DC12V and PoE power inputs. Its compact form factor, weatherproof housing, and robust build make it suitable for outdoor surveillance in commercial, industrial, and public safety environments.
- Low-light performance: 0.007 Lux (Color), 0.002 Lux (B/W), 0 Lux with IR
- Viewing angles: 108.1°–56.7° (H), 57.6°–31.6° (V), 130.4°–64.8° (D)
- IR range: Up to 30 meters
- Operating temperature: -40°C to +50°C
- Power: DC12V / PoE, Max 9.8W
- Dimensions: Ø115 × 91 mm
- Weight: 435g
- Certifications: CE, FCC
Security professionals seeking a dependable and high-performance dome IP camera can rely on the Z2R6522X from LILIN for accurate monitoring and durable outdoor operation.
