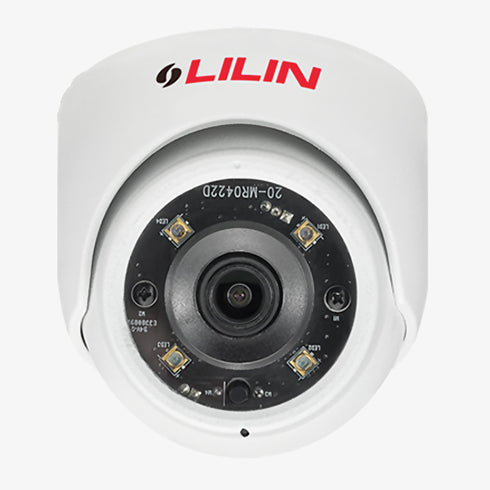

P2R6852E4 5MP Day & Night Fixed IR IP Mini Dome Camera
The P2R6852E2 5MP Day and Night Fixed IR Mini Dome IP Camera offers high-definition surveillance with reliable performance in any lighting condition. It features a 5MP CMOS sensor, H.265/H.264 compression, and HDR up to 120dB for superior image clarity. With a fixed 2.8mm lens, IR range of 30m, and built-in microphone, this compact IP camera is designed for indoor and outdoor use. Its IP67 and IK10 ratings ensure durability in challenging environments, while ONVIF support and smart video analytics enhance system integration and efficiency.
- 5MP CMOS sensor delivers detailed, high-resolution video
- Advanced HDR and noise reduction ensure clear imaging
- IR LEDs provide up to 30m night vision capability
- Weatherproof and vandal-resistant design with IP67, IK10 ratings
- Supports ONVIF Profiles S and T for system compatibility
Delivers ultra-clear imaging with a 5MP CMOS sensor (2592×1944 resolution) for high-detail surveillance footage.
Supports advanced H.265/HEVC and H.264 video compression to optimize bandwidth and storage efficiency.
Equipped with a fixed 2.8mm F1.6 lens offering a wide 116.5° diagonal field of view for maximum coverage.
Features Smart H.264/H.265 technology for intelligent bandwidth management based on scene complexity.
Utilizes 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB for enhanced image clarity in challenging lighting conditions.
Infrared LEDs provide up to 30 meters of night vision with 850nm wavelength and 60° IR beam angle.
Day & Night functionality with a removable IR-cut filter ensures accurate color reproduction during daylight and clear night vision.
Built-in microphone enables one-way audio recording using G.711, PCM, or AAC codecs.
Constructed with IP67 weatherproof and IK10 vandal-resistant housing for durability in harsh environments.
ONVIF Profiles S & T supported for seamless integration with third-party video management systems.
Includes Digital PTZ and Intelligent Video Surveillance (IVS) features for flexible monitoring and smart event detection.
Compatible with the LILIN Pro mobile app for remote viewing and control on iOS and Android devices.
Operates reliably in extreme temperatures from -40°C to +50°C, suitable for diverse installation locations.
Offers dual power options with DC12V or Power over Ethernet (PoE), consuming a maximum of 6.7W.
Backed by a 3-year warranty and certified by CE and FCC standards for quality assurance.
| MODEL NAME | P2R6852E2 5MP Day & Night Fixed IR IP Mini Dome Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS (2592×1944) |
| LENS | Fixed 2.8mm, F1.6 |
| ANGLE OF VIEW | 92.8° (H), 68.8° (V), 116.5° (D) |
| VIDEO COMPRESSION | H.265 (HEVC), H.264, MJPEG |
| SMART CODEC SUPPORT | Smart H.264/H.265 |
| FRAME RATE | 25 fps @ 2592×1944 (Normal & HDR mode) |
| DYNAMIC RANGE | HDR up to 120dB |
| WIDE DYNAMIC RANGE | 2D WDR |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DAY & NIGHT FUNCTION | IR cut removable (ICR) |
| IR SPECIFICATION | IR LEDs (850nm) with 30m range, 60° coverage |
| MINIMUM ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR On) |
| DIGITAL PTZ | Supported |
| INTELLIGENT VIDEO ANALYTICS | IVS, Smart Events |
| AUDIO | Built-in Microphone, One-way Audio (G.711 / PCM / AAC) |
| NETWORK PROTOCOLS | ONVIF Profiles S & T supported |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE, Max 6.7W |
| HOUSING | IP67 Weatherproof, IK10 Vandal Resistant |
| DIMENSIONS | Ø67 × 67 mm |
| WEIGHT | 265g |
| RESOLUTION OPTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
P2R6852E2 5MP Day & Night Fixed IR IP Mini Dome Camera from LILIN offers advanced surveillance with high-definition imaging and smart video technology. Designed for both indoor and outdoor environments, this compact mini dome camera delivers sharp, clear footage with a 5MP CMOS image sensor and H.265/H.264 compression for efficient bandwidth use. Its 2.8mm fixed lens provides wide-angle coverage, while integrated IR LEDs ensure visibility up to 30 meters, even in complete darkness.
Engineered for Reliable Surveillance
Built to perform in all lighting conditions, the P2R6852E2 features 3D noise reduction, 2D WDR, and HDR up to 120dB for enhanced clarity. Its Day & Night function with removable IR cut filter ensures true color images by day and crisp monochrome at night. With a rugged IP67 weatherproof and IK10 vandal-resistant housing, this camera is ideal for challenging environments such as commercial properties, public buildings, and residential complexes.
- 5MP CMOS image sensor (2592×1944)
- Fixed 2.8mm Lens, F1.6 with 92.8° horizontal field of view
- IR LEDs with 30m range (850nm, 60°)
- Smart H.264/H.265 compression support
- 3D Noise Reduction (MCTF), 2D WDR, HDR up to 120dB
- Built-in microphone with one-way audio (G.711 / PCM / AAC)
- ONVIF Profiles S & T supported
- Digital PTZ, IVS, and smart event detection
- Integrated support for LILIN Pro mobile app (iOS, Android)
Installation-Friendly and Fully Compatible
The P2R6852E2 supports DC12V or PoE power input, ensuring flexible deployment across modern surveillance infrastructures. Its lightweight and compact form factor simplifies mounting, while compatibility with ONVIF standards allows seamless integration into existing systems. Whether securing entrances, hallways, or open areas, this camera delivers dependable performance in a variety of professional settings.
- Commercial and residential buildings
- Retail stores and office complexes
- Parking lots and perimeter monitoring
Professionals seeking high-performance IP surveillance cameras can trust the P2R6852E2 from LILIN to deliver robust features and reliable monitoring. Available through trusted USA CCTV and security systems dealers.
Technical Specifications
- Model: P2R6852E2
- Min. Illumination: 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR)
- Lens: Fixed 2.8mm, F1.6
- Angle of View: 92.8°(H), 68.8°(V), 116.5°(D)
- Max IR Distance: 30m
- Sensor: 1/2.8" CMOS, 5MP
- Video Compression: H.265, H.264, MJPEG
- Resolution: 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF
- Frame Rate: 25 fps @ 2592×1944 (Normal & HDR mode)
- Audio: Built-in Mic, One-way Audio
- Operating Temp: -40°C ~ +50°C
- Power: DC12V / PoE, Max 6.7W
- Dimensions: Ø67 × 67 mm
- Weight: 265g
- Certifications: CE, FCC
- Warranty: 3 Years
