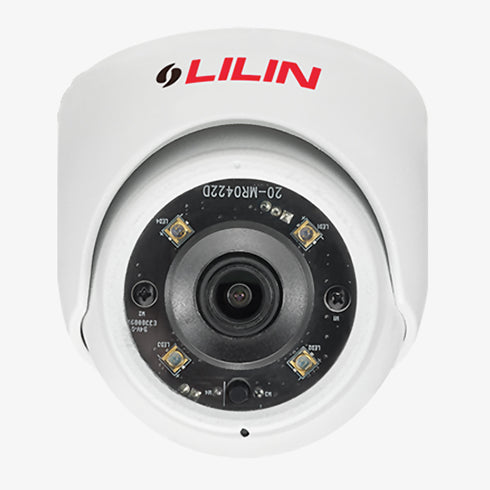

P2R6822E2 1080P Day & Night Fixed IR IP Mini Dome Camera
<p>The P2R6822E2 is a compact 2MP IP turret camera designed for reliable day and night surveillance. Featuring a 1/2.8" CMOS sensor, it delivers Full HD 1080p resolution with H.265/H.264 compression for efficient video storage. Equipped with IR LEDs up to 30 meters, it ensures clear imaging in complete darkness. The camera supports digital PTZ, smart analytics, and multiple video profiles for flexible integration. Its IP67 and IK10 ratings provide superior weather and vandal resistance, making it ideal for both indoor and outdoor applications.</p> <ul> <li>Full HD 1080p resolution with 2MP CMOS sensor</li> <li>30m IR night vision with removable IR cut filter</li> <li>Wide 104° horizontal field of view</li> <li>IP67 weatherproof and IK10 vandal resistant housing</li> <li>Supports Smart H.265/H.264 and ONVIF S & T</li> </ul>
Captures high-definition video with a Full HD 2MP CMOS image sensor (1920×1080) for clear surveillance footage.
Supports H.265/HEVC and H.264 video compression to optimize storage and streaming efficiency.
Equipped with a fixed 2.8mm wide-angle lens (F1.6) for broad coverage and sharp image clarity.
Smart H.264/H.265 functionality enhances video quality while reducing bandwidth usage.
Delivers superior image clarity in varying lighting with 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.
Built-in IR LEDs provide night vision up to 30 meters (850nm, 60°) for round-the-clock surveillance.
Day & Night functionality with removable IR cut filter ensures accurate color reproduction in daylight and visibility in darkness.
Features a built-in microphone and one-way audio support using G.711 / PCM / AAC codecs for enhanced monitoring.
Designed with IP67 weatherproof and IK10 vandal-resistant housing for reliable outdoor use.
Compatible with ONVIF Profiles S & T for seamless integration with third-party systems.
Supports digital PTZ, intelligent video surveillance (IVS), and smart event detection for proactive security.
Fully integrates with the LILIN Pro mobile app for remote viewing and management on iOS and Android devices.
Operates in extreme temperatures from -40°C to +50°C, suitable for harsh environments.
Offers flexible power options with DC12V and PoE support, consuming a maximum of 7.5W.
Backed by a 3-year warranty and certified with CE, FCC, and UL standards for quality assurance.
| MODEL NAME | P2R6822E2 1080P Day & Night Fixed IR IP Mini Dome Camera |
| PRODUCT TYPE | IP Turret Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" CMOS, 2MP |
| MAX RESOLUTION | 1920×1080 |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 |
| LENS | Fixed 2.8mm, F1.6 |
| ANGLE OF VIEW | 104°(H), 58°(V), 119°(D) |
| MIN. ILLUMINATION | 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| IR DISTANCE | 30m |
| IR WAVELENGTH | 850nm |
| IR BEAM ANGLE | 60° |
| DAY & NIGHT | IR cut removable |
| HDR | Up to 120dB |
| WDR | 2D WDR |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| AUDIO | Built-in microphone, One-way Audio (G.711 / PCM / AAC) |
| ONVIF | Profiles S & T supported |
| DIGITAL PTZ | Supported |
| IVS / SMART EVENTS | Supported |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| FRAME RATE | 60 fps @ 1920×1080 (Normal), 30 fps @ 1920×1080 (HDR) |
| RESOLUTION OPTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 7.5W |
| DIMENSIONS | Ø67 × 67 mm |
| WEIGHT | 265g |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| CERTIFICATIONS | CE, FCC, UL |
| WARRANTY | 3 Years |
P2R6822E2 1080P Day & Night Fixed IR IP Mini Dome Camera from LILIN delivers sharp Full HD surveillance with a compact, vandal-resistant design. Equipped with a 2MP CMOS sensor and 2.8mm fixed lens, this camera ensures wide-angle visibility and exceptional performance in both day and night environments. Featuring H.265 video compression, advanced noise reduction, and built-in audio, it's ideal for security setups requiring reliability and clarity.
Engineered for Day & Night Surveillance
The P2R6822E2 is optimized for 24/7 monitoring with IR LEDs providing 30m range and a removable IR cut filter for accurate color in daylight. Its IP67 weatherproof and IK10 vandal-resistant housing make it suitable for outdoor and high-risk areas. The camera supports smart events, digital PTZ, and mobile app integration for flexible control and real-time alerts.
- Full HD 2MP resolution (1920×1080)
- Fixed 2.8mm lens with 104° horizontal view
- 30m IR range with Day/Night IR-cut filter
- H.265/H.264 compression with Smart Codec
- 3D Noise Reduction, 2D WDR, HDR up to 120dB
- Built-in microphone with one-way audio
- Weatherproof (IP67) and vandal resistant (IK10)
- Supports ONVIF Profiles S & T
Reliable Integration and Smart Features
Compatible with DC12V or PoE power sources, the P2R6822E2 integrates smoothly into existing IP systems. It supports digital PTZ and intelligent video surveillance (IVS) for enhanced monitoring and is accessible via the LILIN Pro mobile app on iOS and Android platforms. This camera is CE, FCC, and UL certified, offering peace of mind for professional installers.
- Commercial and industrial outdoor security
- Retail and public surveillance systems
- Smart home or office IP camera setups
Security integrators seeking durable and high-performance IP cameras can rely on the P2R6822E2 from LILIN for consistent imaging and flexible deployment in diverse environments. Backed by a 3-year warranty and supported by USA-based CCTV distributors.
Technical Specifications
- Model: P2R6822E2
- Image Sensor: 1/2.8" CMOS, 2MP
- Min. Illumination: 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR)
- Lens: 2.8mm fixed, F1.6
- Angle of View: 104°(H), 58°(V), 119°(D)
- IR Range: 30m (850nm, 60°)
- Video Compression: H.265, H.264, MJPEG
- Resolution: 2MP / 1.3MP / 1MP / D1 / VGA / CIF
- Frame Rate: 60 fps @ 1080p (Normal), 30 fps (HDR)
- Audio: Built-in Mic, One-way (G.711 / PCM / AAC)
- Operating Temp: -40°C to +50°C
- Power Input: DC12V / PoE, Max 7.5W
- Dimensions: Ø67 × 67 mm
- Weight: 265g
- Certifications: CE, FCC, UL
- Warranty: 3 Years
