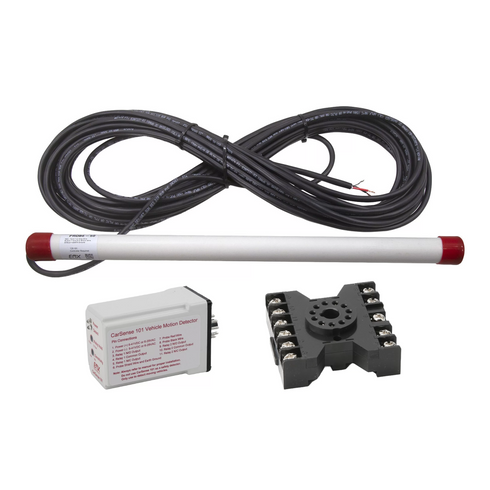

EMX 1815-1 Probe-150 Carsense 101 Sensing Probe 150 Lead
This vehicle sensing probe provides reliable motion detection for security access control and safety applications. Designed for direct burial installation it detects approaching or moving vehicles along roadways gates and parking areas. The long lead allows flexible placement while the rugged housing protects against environmental exposure. Simple setup and quick device replacement make it ideal for upgrades new installations and integration with control boards operators alarms and monitoring systems.
- Buried probe design enhances security and tamper resistance
- Long lead supports flexible roadway and gate placement
- Low standby current suits solar powered installations
- Adjustable sensitivity and delay for precise detection
- Compatible with access control and alarm systems
Includes a 150-foot lead sensing probe, offering extended coverage for diverse installation environments.
Integrates seamlessly with security systems, gate operators, and door controllers for enhanced automation.
Detects moving vehicles in blind spots to trigger safety mechanisms like warning lights and alarms.
Ideal for security setups—detects vehicle movement and activates alarms or surveillance systems.
Functions as a free exit vehicle detector, perfect for gates, overhead doors, and parking barriers.
Front-mounted controls and indicators provide intuitive access and operation.
Supports a wide power input range (9–41 VDC / 6–29 VAC / 110 VAC), suitable for varied systems.
Low standby current of 2.5mA makes it optimal for solar-powered installations.
Compact relay-type housing with durable, break-resistant polycarbonate construction.
Robust surge protection using MOV, neon, and silicon devices ensures device longevity.
Adjustable sensitivity and off-delay controls offer fine-tuned detection accuracy.
LED indicators provide clear visual status for power and detection modes.
Durable sensing probe features PVC watertight housing with shielded burial-grade cable.
Operates reliably in extreme temperatures from -40°F to 170°F for both control unit and probe.
Easy installation and upgrade process allows quick switching between detection devices.
| MODEL NAME | EMX 1815-1 Probe-150 Carsense 101 Sensing Probe - 150' Lead |
| LEAD LENGTH | 150 feet |
| EASE OF INSTALLATION | Easy to use and install |
| UPGRADEABILITY | Easy upgrade or switch out to new devices |
| CONTROL ACCESS | Quick access to controls |
| PROBE PROTECTION | Buried sensing probe protects against potential intruders |
| APPLICATIONS | Safety, Security, Access control |
| SAFETY FUNCTION | Detects moving vehicles in blind areas and actuates warning lights |
| SECURITY FUNCTION | Detects approaching or moving unauthorized vehicles and triggers alarms or cameras |
| ACCESS CONTROL FUNCTION | Free exit detector for gates, doors, and barriers |
| CONTROL INDICATORS | Mounted on front panel |
| VOLTAGE RANGE (DC) | 9–41 VDC |
| VOLTAGE RANGE (AC) | 6–29 VAC or 110VAC |
| POWER SUPPLY TOLERANCE | +/- 20% from the power rating |
| STAND-BY CURRENT | 2.5 mA maximum |
| DETECT CURRENT | 50 mA maximum |
| RELAY TYPE | DPDT |
| RELAY RATING | 1A 24V DC, 120V AC |
| SENSITIVITY SETTINGS | High, Low adjustment |
| OFF DELAY | 1 to 5 seconds adjustment |
| CONTROL UNIT TEMP RANGE | -40°F to 170°F |
| PROBE TEMP RANGE | -40°F to 170°F |
| POWER ON INDICATOR | High intensity Green LED |
| DETECT INDICATOR | High intensity Red LED |
| SENSITIVITY CONTROL | Continuous adjustment |
| OFF DELAY CONTROL | Continuous adjustment |
| SURGE PROTECTION | MOV, neon, and silicon protection devices |
| CONTROL UNIT HOUSING | Break resistant Polycarbonate |
| CONTROL UNIT DIMENSIONS | H: 2.2" (55mm), W: 1.6" (41mm), D: 3.25" (84mm) |
| CONNECTOR | 86CP11 11-pin connector |
| PROBE HOUSING | PVC water-tight |
| PROBE DIMENSIONS | Length 17", Diameter 1" |
| LEAD-IN CABLE | Shielded, direct burial |
| SUITABLE POWER SOURCE | Excellent for solar power applications |
| CONTROL UNIT TYPE | Relay-type housing |
| USAGE | Vehicle motion detection |
| INTEGRATION | Compatible with security control boards and gate/door operators |
EMX 1815-1 Probe-150 Carsense 101 from Alfa Iris is a highly reliable vehicle motion detector designed for a range of access control, safety, and security applications. With a 150' lead sensing probe, this system integrates seamlessly with security control boards, gate operators, and door access systems to detect vehicle movement efficiently.
Reliable Detection for Safety, Security, and Access Control
The CarSense 101 offers accurate detection of moving vehicles in blind spots, helping prevent accidents and unauthorized movements. Ideal for warning systems, alarms, video triggers, and free exit control, the CS101 enhances the functionality of automated access systems. The control module includes front-mounted indicators and adjustments for easy installation and operation.
- Detects moving vehicles in driveways and blind spots
- Triggers warning lights, alarms, cameras, or gates
- Free exit solution for gates and overhead doors
- Quick access to controls with 11-pin connector
- Easy to upgrade or replace existing systems
Optimized for Harsh Environments and Versatile Power Input
Designed for durability, the EMX 1815-1 sensing probe features a watertight PVC housing for underground installation. It operates in extreme temperatures, making it suitable for outdoor and industrial settings. The system supports a wide range of power inputs and includes surge protection and low standby current, ideal for solar-powered applications.
- Probe: 17" length, 1" diameter, direct burial cable
- Operating Temp: -40°F to 170°F (probe and control unit)
- Power Input: 9–41 VDC / 6–29 VAC or 110VAC
- Standby Current: 2.5mA (ideal for solar use)
- Relay Output: DPDT, rated 1A @ 24VDC / 120VAC
Security installers and access control integrators trust the EMX 1815-1 Probe-150 for dependable vehicle detection across commercial, industrial, and residential environments. Available through Alfa Iris and trusted USA distributors.
Technical Specifications
- Model: EMX 1815-1 Probe-150 / CarSense 101
- Power Supply: 9–41 VDC / 6–29 VAC / 110VAC
- Power Tolerance: ±20%
- Standby Current: Max 2.5mA
- Detect Current: Max 50mA
- Relay Type: DPDT
- Relay Rating: 1A @ 24VDC / 120VAC
- Sensitivity: Adjustable (High/Low)
- Off Delay: 1–5 sec adjustable
- Indicators: Green LED (Power), Red LED (Detect)
- Surge Protection: MOV, neon, silicon
- Control Housing: Polycarbonate (2.2" H x 1.6" W x 3.25" D)
- Connector: 86CP11, 11-pin
- Probe Housing: Watertight PVC (17" x 1")
