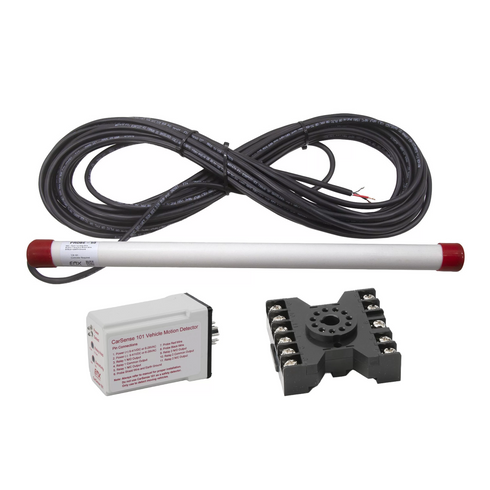

EMX 1810-1 Probe-100 Carsense 101 Sensing Probe with 100 Foot Lead
This vehicle motion sensing probe is designed for reliable detection along roadways and access points. The buried probe enhances safety and security by identifying moving or unauthorized vehicles and triggering connected systems. Its compact control module offers quick access to adjustments and indicators, making installation and upgrades simple. With low power consumption and wide voltage compatibility, it is well suited for continuous operation including solar powered applications. Built for harsh environments, the system delivers dependable performance for access control safety and security needs.
- Buried sensing probe helps detect moving or unauthorized vehicles
- One hundred foot lead allows flexible installation along roadways
- Low standby current supports solar powered applications
- Front panel controls enable quick sensitivity and delay adjustment
- Durable housing designed for demanding outdoor environments
Includes a 100-foot lead sensing probe for versatile installation along driveways or roadways.
Quick and simple installation process designed for easy upgrade or replacement.
Seamlessly integrates with gate operators, door controls, and security systems for comprehensive vehicle detection.
Effectively detects moving vehicles in blind spots to activate warning signals and enhance safety.
Provides reliable detection of unauthorized vehicle movement to trigger alarms or surveillance systems.
Functions as a free exit detector, enabling automated access through gates, doors, and parking barriers.
Front-panel mounted controls and indicators offer fast access and easy system adjustments.
Operates on low standby current (2.5mA), making it suitable for solar-powered installations.
Supports wide power input ranges: 9–41 VDC, 6–29 VAC, or 110 VAC, ensuring flexible system compatibility.
Features durable surge protection using MOV, neon, and silicon components for enhanced longevity.
Compact, break-resistant polycarbonate housing offers rugged durability for outdoor conditions.
Relay type DPDT rated at 1A 24V DC / 120V AC supports diverse system output requirements.
Continuously adjustable sensitivity and off-delay settings allow precise detection tuning.
High-intensity green and red LEDs indicate power and detection status for quick diagnostics.
PVC watertight probe housing with shielded direct burial cable ensures long-term underground performance.
| MODEL NAME | EMX 1810-1 Probe-100 Carsense 101 Sensing Probe - 100' Lead |
| PROBE LEAD LENGTH | 100 feet |
| INSTALLATION | Buried sensing probe |
| UPGRADEABILITY | Easy to upgrade or switch to new devices |
| CONTROL ACCESS | Quick access to controls |
| APPLICATIONS | Safety, Security, Access Control |
| SAFETY FEATURE | Detects moving vehicles in blind areas and actuates warning lights |
| SECURITY FEATURE | Detects approaching or unauthorized vehicle movement and actuates alarms or cameras |
| ACCESS CONTROL FUNCTION | Free exit detector for gates, doors, and parking barriers |
| POWER SUPPLY | 9—41 VDC / 6—29 VAC or 110VAC |
| VOLTAGE TOLERANCE | +/- 20% |
| STAND-BY CURRENT | 2.5 mA maximum |
| DETECT CURRENT | 50 mA maximum |
| RELAY TYPE | DPDT |
| RELAY RATING | 1A 24V DC / 120V AC |
| SENSITIVITY | Adjustable - High/Low |
| OFF DELAY | Adjustable from 1 to 5 seconds |
| TEMPERATURE RANGE (CONTROL UNIT) | -40°F to 170°F |
| TEMPERATURE RANGE (PROBE) | -40°F to 170°F |
| POWER ON INDICATOR | High intensity Green LED |
| DETECT INDICATOR | High intensity Red LED |
| SENSITIVITY CONTROL | Continuous adjustment |
| OFF DELAY CONTROL | Continuous adjustment |
| SURGE PROTECTION | MOV, neon, and silicon protection devices |
| CONTROL UNIT HOUSING | Break resistant Polycarbonate |
| CONTROL UNIT DIMENSIONS | H: 2.2" (55mm), W: 1.6" (41mm), D: 3.25" (84mm) |
| CONNECTOR | 86CP11 11-pin connector |
| PROBE HOUSING | PVC watertight housing |
| PROBE DIMENSIONS | Length: 17", Diameter: 1" |
| LEAD-IN CABLE | Shielded direct burial |
EMX 1810-1 Probe-100 Carsense 101 Sensing Probe - 100' Lead from Alfa Iris is a reliable and easy-to-install vehicle motion detector designed for integration with security control boards, gate operators, and access systems. With a 100' lead sensing probe, this system enhances site safety and vehicle detection capability in various environments.
Advanced Detection for Safety, Security, and Access Control
The CarSense 101 delivers robust detection of moving vehicles to trigger warning lights, alarms, or automated gate functions. Whether protecting blind areas, securing parked vehicle zones, or automating gate access, the CS101 ensures responsive and precise operation with minimal standby power consumption — ideal for solar applications.
- Includes 100' lead sensing probe
- Quick and simple installation and upgrade process
- Protects against unauthorized vehicle access or movement
- Front panel-mounted controls and indicators
- Rugged buried probe resists tampering and environmental exposure
Compact, Efficient, and Flexible Power Options
Designed with a small relay-type housing, the CS101 features multiple power input options, low power draw, and continuous sensitivity and off-delay control. Surge protection ensures stable performance in outdoor and high-interference areas, and the unit operates reliably in extreme temperatures.
- Power Input: 9—41 VDC / 6—29 VAC or 110VAC
- Standby Current: 2.5mA (ideal for solar-powered systems)
- Relay: DPDT, rated at 1A 24V DC / 120V AC
- Continuous adjustment: Sensitivity and off-delay (1–5 seconds)
- Indicators: Green LED (Power), Red LED (Detection)
- Temperature Range: -40° F to 170° F (Control Unit & Probe)
- Housing: Break-resistant polycarbonate (2.2" H x 1.6" W x 3.25" D)
- Probe: 17" long PVC watertight housing with shielded burial cable
Installers, integrators, and security professionals can trust the EMX Carsense 101 from Alfa Iris for dependable vehicle detection in residential, commercial, and industrial access control applications.
