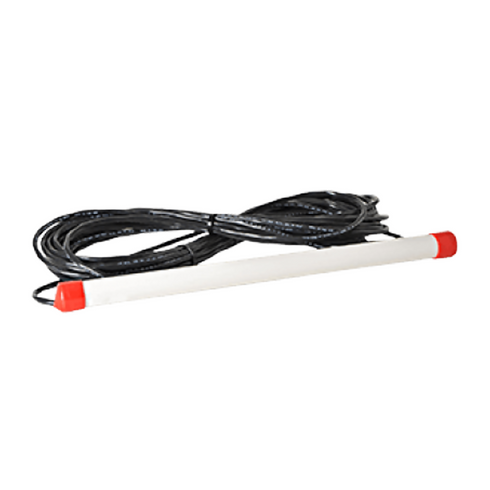

EMX 1805-1 Probe-50 Carsense 101 Sensing Probe 50 Foot Lead
The EMX 1805-1 Probe-50 Carsense 101 sensing probe with 50 foot lead is designed for reliable underground vehicle motion detection in access control and security applications. The buried probe enhances safety by detecting moving vehicles in blind areas and supports alarms cameras and automated gates. Its compact control module allows quick access to settings while low standby current supports solar powered installations and long term operation. Built for harsh environments it delivers dependable performance across wide temperature ranges. :contentReference[oaicite:1]{index=1}
- Buried sensing probe enhances security and protects against tampering
- Fifty foot direct burial lead supports flexible installation layouts
- Low standby current ideal for solar powered systems
- Adjustable sensitivity and off delay for precise detection control
- Compatible with gates doors and security control boards
Includes a 50-foot lead sensing probe for versatile installation along driveways or entry paths.
Seamlessly integrates with security control boards, gate and door operators for flexible applications.
Detects moving vehicles in blind areas to activate safety mechanisms like warning lights.
Triggers alarms or video systems upon detection of unauthorized vehicle movement for enhanced security.
Acts as a free exit detector for automated gates, doors, and parking barriers to streamline access control.
Equipped with front-mounted controls and indicators for quick and intuitive user interface.
Features a low 2.5 mA standby current, ideal for solar-powered installations and energy efficiency.
Offers continuous sensitivity and off-delay adjustments to fine-tune detection response.
Built with surge protection using MOV, neon, and silicon devices to guard against voltage spikes.
Encased in a break-resistant polycarbonate housing for long-lasting durability in harsh environments.
Operates across a wide voltage range (9–41 VDC / 6–29 VAC / 110 VAC) with +/-20% tolerance for power stability.
High and low sensitivity settings available to accommodate varied installation requirements.
LED indicators clearly display power status and vehicle detection in real time.
Weatherproof PVC probe housing with shielded burial cable ensures reliable underground performance.
Temperature-rated for extreme environments from -40°F to 170°F, suitable for all-season use.
| MODEL NAME | EMX 1805-1 Probe-50 Carsense 101 Sensing Probe - 50' Lead |
| LEAD LENGTH | 50 feet |
| INSTALLATION | Easy to use and install; buried sensing probe |
| UPGRADEABILITY | Easy upgrade or switch out to new devices |
| CONTROL ACCESS | Quick access to controls |
| INTRUSION PROTECTION | Buried sensing probe protects against intruders |
| APPLICATION - SAFETY | Detects moving vehicles in blind areas, actuates warning lights |
| APPLICATION - SECURITY | Detects approaching or unauthorized vehicle movement, activates alarms or cameras |
| APPLICATION - ACCESS CONTROL | Acts as a free exit vehicle detector |
| FRONT PANEL | Controls and indicators mounted on front panel |
| POWER SUPPLY | 9–41 VDC / 6–29 VAC or 110VAC |
| POWER SUPPLY TOLERANCE | ±20% from power rating |
| STANDBY CURRENT | 2.5mA maximum |
| DETECT CURRENT | 50mA maximum |
| RELAY TYPE | DPDT |
| RELAY RATING | 1A 24V DC / 120V AC |
| SENSITIVITY | High, Low adjustment |
| OFF DELAY | 1 to 5 seconds adjustment |
| CONTROL UNIT TEMP RANGE | -40°F to 170°F |
| PROBE TEMP RANGE | -40°F to 170°F |
| POWER ON INDICATOR | High intensity Green LED |
| DETECT INDICATOR | High intensity Red LED |
| SENSITIVITY CONTROL | Continuous adjustment |
| OFF DELAY CONTROL | Continuous adjustment |
| SURGE PROTECTION | Includes MOV, neon and silicon protection devices |
| CONTROL UNIT HOUSING | Break resistant Polycarbonate (H:2.2", W:1.6", D:3.25") |
| CONNECTOR | 86CP11 11 pin connector |
| PROBE HOUSING | PVC watertight housing (Length 17", Diameter 1") |
| CABLE TYPE | Shielded direct burial lead-in cable |
| SUITABILITY | Ideal for solar power applications |
EMX 1805-1 Probe-50 Carsense 101 Sensing Probe from Alfa Iris offers a high-performance vehicle motion detection system with a durable 50' lead buried sensing probe. Ideal for use with gate operators, security systems, and automated access controls, the CS101 provides dependable detection for moving vehicles in driveways, parking areas, and restricted zones.
Reliable Vehicle Detection for Safety and Security
The Carsense 101 unit includes a control module with an 11-pin connector and a robust sensing probe designed for easy installation. It detects vehicle motion for applications like triggering alarms, activating cameras, or initiating automatic gate operations. Its rugged, weather-resistant construction ensures longevity and reliability even in extreme environmental conditions.
- Includes buried probe with 50' direct burial lead-in cable
- Detects moving vehicles to improve safety and access control
- Works as a free-exit detector for gates, doors, and barriers
- Quick and simple installation and configuration
- Seamless integration with existing access control systems
Efficient Design and Flexible Power Options
Operating on 9–41 VDC or 6–29 VAC (optional 110VAC), the CS101 boasts low standby current usage, making it ideal for solar-powered setups. The front panel provides easy access to controls and indicators, while adjustable sensitivity and delay settings enhance operational flexibility. Surge protection and rugged housing make this unit a smart choice for high-reliability installations.
- Standby Current: 2.5mA max
- Detect Current: 50mA max
- Relay: DPDT, 1A @ 24VDC / 120VAC
- Adjustable sensitivity and off-delay
- Operating Temp: -40°F to 170°F
- LED indicators for power and detection
- Polycarbonate control housing; water-tight PVC probe
- Connector: 86CP11 11-pin connector
Installers and security professionals looking for a robust vehicle motion detection solution can rely on the EMX Carsense 101 with 50' probe to deliver accurate performance, easy integration, and long-term durability. Available through trusted USA access control and vehicle sensing product distributors.
