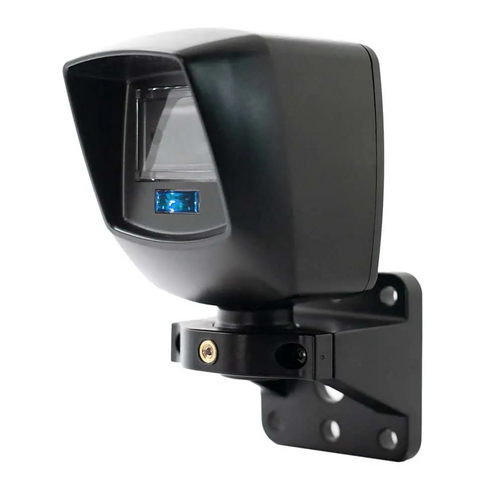

EMX 1200-1 MRD-1P Radar Presence Sensor Adjustable Detection 1 to 30 Feet
The MRD-1P radar presence sensor delivers precise vehicle and pedestrian detection for gate and barrier applications. Using advanced radar technology, it accurately identifies obstructions within a configurable range of 1 to 30 feet, maintaining reliable performance in rain, snow, fog, and ice. A full feature menu with pushbuttons and a clear display allows easy setup and customization, while the durable all weather housing and detachable screw terminals simplify installation and long term operation. :contentReference[oaicite:0]{index=0}
- Accurate radar detection for vehicles and pedestrians at access points
- Adjustable detection range from 1 to 30 feet for flexible installations
- Reliable operation in rain, snow, fog, and icy conditions
- Form C relay outputs with configurable presence and pulse functions
- Detachable screw terminals and adjustable mount for easy installation
You Save: $999.84 (84%)
Delivers accurate radar-based detection for vehicles and pedestrians with a configurable range from 1 ft to 30 ft (0.3 – 10 m).
Employs precision measurement capabilities down to 0.04″ (1 mm), ensuring high detection accuracy.
Operates reliably in all weather conditions, including rain, snow, ice, and fog, for consistent performance.
Features durable, all-weather housing designed to withstand harsh environmental conditions.
Equipped with a full-feature menu interface, including intuitive pushbuttons and a 3-digit display for easy configuration.
Includes Form C and solid-state relay outputs for flexible signaling options such as presence and pulse detection.
Supports pulse-on-entry and pulse-on-exit modes, offering versatile integration for access control systems.
Adjustable ball and socket mount allows precise sensor alignment and simplified installation.
Visual beam shape guidance aids in accurate sensor positioning during setup.
Detachable screw terminal block simplifies wiring and reduces installation time.
Presence relay activates on obstruction detection with configurable NO and NC terminals.
Pulse relay can be configured for customized output behavior including hold and pulse durations.
Fast response time enhances operational efficiency at gates and barrier arms.
Ideal for improving safety and efficiency in vehicle and pedestrian access zones.
Manufactured by EMX Industries, a trusted leader in advanced detection technology.
| MODEL NAME | EMX 1200-1 MRD-1P Radar Presence Sensor |
| SENSOR TYPE | Radar Presence Sensor |
| DETECTION TECHNOLOGY | Microwave radar |
| DETECTION RANGE | 1 ft to 30 ft (0.3 m – 10 m) |
| PRECISION | 0.04″ (1 mm) |
| MOUNTING TYPE | Adjustable ball & socket mount |
| WEATHER RESISTANCE | All-weather design (rain, snow, fog, ice) |
| TERMINAL TYPE | Detachable screw terminals |
| DISPLAY INTERFACE | 3-digit display with pushbuttons |
| MENU CONTROL | Full-featured menu for customization |
| SIGNALING OUTPUT | Form C relay outputs |
| RELAY TYPES | Solid-state for pulse-on-entry/exit and presence detection |
| PRESENCE RELAY FUNCTION | NC opens / NO closes when obstruction is present |
| PULSE RELAY CONFIGURATION | Pulse on Entry, Pulse on Exit, or none |
| CONFIGURABLE TIMES | Adjustable hold and pulse durations |
| TYPICAL APPLICATIONS | Vehicle and pedestrian detection near barrier arms |
| RESPONSE TIME | Fast detection response |
| INSTALLATION GUIDANCE | Visual beam shape guidance |
| WIRING SIMPLICITY | Easy wiring with detachable terminals |
| SUITABLE ENVIRONMENTS | Outdoor and harsh conditions |
| MEASUREMENT UNITS | Feet/meters with millimeter precision |
| DEVICE DURABILITY | Rugged, durable construction |
| USER INTERFACE | Pushbuttons for menu navigation |
| OPERATION MODE | Configurable for entry/exit/presence |
| RELAY OUTPUT OPTIONS | Pulse and presence signals |
EMX 1200-1 MRD-1P Radar Presence Sensor from EMX Industries delivers high-precision detection in both pedestrian and vehicular applications. Engineered for durability and accuracy, this sensor ensures optimal performance in a wide range of weather conditions, making it ideal for use near barrier arms and entry points.
High Accuracy and Rugged Design
The MRD-1P uses advanced radar technology with a configurable detection range from 1 ft to 30 ft (0.3–10 m), and precision measurement down to 0.04″ (1 mm). Its durable construction withstands rain, snow, ice, and fog, ensuring uninterrupted operation in harsh environments. Designed with an adjustable ball & socket mount and detachable screw terminals, the MRD-1P is easy to install and fine-tune in the field.
- Highly accurate radar presence detection
- Adjustable detection range: 1 to 30 ft (0.3–10 m)
- Precision measurement: down to 0.04″ (1 mm)
- All-weather performance: rain, snow, fog, ice
- Durable outdoor housing and mounting system
Customizable Outputs and User-Friendly Interface
The sensor offers flexible Form C and solid-state relay outputs for presence detection and pulse signaling (entry or exit). A full-featured menu system with intuitive pushbuttons and a 3-digit display allows for quick configuration and diagnostics. The built-in beam shape guide ensures accurate alignment during setup.
- Form C presence relay: NO/NC terminals react to obstructions
- Pulse relay: configurable for pulse-on-entry, pulse-on-exit, or none
- Customizable hold and pulse times
- 3-digit display with pushbutton navigation
- Detachable screw terminal block for easy wiring
Security and access professionals seeking versatile, all-weather radar sensors can rely on the MRD-1P from EMX Industries to enhance perimeter protection and vehicle detection efficiency. Ideal for integration into barrier gate systems and automated entry solutions.
Technical Specifications
- Model: MRD-1P
- Detection Range: 1 ft – 30 ft (0.3 – 10 m)
- Precision: 0.04″ (1 mm)
- Weather Resistance: Rain, snow, fog, ice
- Relay Outputs: Presence and Pulse (Form C, solid-state)
- Interface: 3-digit display, pushbutton controls
- Installation: Adjustable mount, detachable terminals
