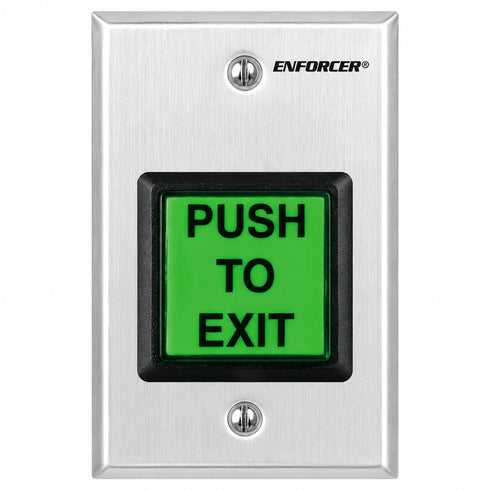

SD-7202GC-PTQ Square Illuminated Pushbutton Request to Exit Plate with Adjustable Timer

SD-7202GC-PTQ Square Illuminated Pushbutton Request-to-Exit Plate with Timer from Alfa Iris is a professional-grade request-to-exit (REX) push button designed for commercial access control systems. Featuring a large illuminated "PUSH TO EXIT" button, an integrated adjustable timer, and audible buzzer output, it provides reliable and user-friendly exit control for offices, retail stores, healthcare facilities, schools, and secured buildings. The interchangeable English, Spanish, and French faceplates make it ideal for multilingual installations. :contentReference[oaicite:0]{index=0}

Reliable Exit Control with Adjustable Timer

The SD-7202GC-PTQ operates on 12~24VDC without requiring external resistors and includes a built-in adjustable timer with output ranging from 1 to 180 seconds. Its illuminated push button delivers over 50,000 hours of LED life, while the integrated buzzer provides audible status indication for enhanced user awareness. Designed with a brushed stainless-steel single-gang faceplate, it offers long-lasting durability for high-traffic environments. :contentReference[oaicite:1]{index=1}

• Large illuminated "PUSH TO EXIT" pushbutton
• Adjustable timer output from 1 to 180 seconds
• Integrated buzzer for audible status indication
• Interchangeable English, Spanish, and French message plates
• Operates on 12~24VDC without external resistors
• LED rated for over 50,000 hours of illumination
• 3A switching capacity for dependable performance
• Stainless-steel single-gang mounting plate included

Ideal for Commercial Access Control Applications

Designed for seamless integration with electric locks, maglocks, door strikes, and access control systems, this illuminated exit button is well suited for commercial, industrial, educational, and healthcare facilities. The included color-coded wire leads with spade lugs simplify installation while the durable construction ensures reliable long-term operation. :contentReference[oaicite:2]{index=2}

• Commercial office buildings
• Retail stores and shopping centers
• Healthcare facilities and hospitals
• Schools and universities
• Industrial facilities and warehouses
• Access-controlled entry and exit doors

For installers and security professionals seeking a timed illuminated request-to-exit button, the SD-7202GC-PTQ from Alfa Iris delivers dependable operation, flexible multilingual support, and easy integration with modern access control systems. Available through trusted USA access control and security equipment dealers. :contentReference[oaicite:3]{index=3}

Technical Specifications

• Model: SD-7202GC-PTQ
• Device Type: Illuminated Request-to-Exit Pushbutton with Timer
• Operating Voltage: 12~24VDC
• Current Rating: 3A @ 24VAC
• Timer Output: Adjustable 1–180 seconds
• Buzzer Output: Yes
• LED Indicator: Illuminated pushbutton (50,000+ hour life)
• Faceplate: Brushed stainless steel, single-gang
• Included Languages: English, Spanish, French interchangeable plates
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Dimensions: 4-1/2" × 2-3/4" × 2-3/4" (114 × 70 × 70 mm)
• Weight: 4.7 oz (133 g)
• Certifications: ETL Listed, conforms to UL 294
