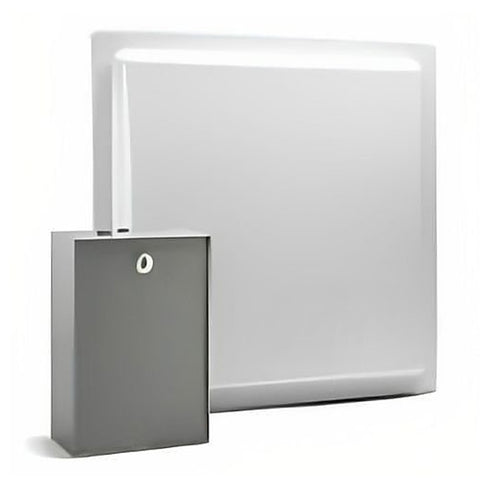

DK Prox 1815-350 Long Range AVI Reader Automated Vehicle Identification System
DK Prox 1815-350 is an advanced long-range Automated Vehicle Identification system designed for hands-free access control. With an adjustable read range of 8 to 25 feet, it ensures smooth and efficient vehicle entry at gates or barriers. The unit supports passive tags, eliminating battery maintenance, and operates on the reliable UHF frequency band for superior performance. Built for outdoor environments, it delivers consistent operation across extreme temperatures, making it ideal for parking facilities, gated communities, and commercial vehicle access control points.
- Adjustable read range up to 25 feet for flexible installations
- Hands-free vehicle identification using passive UHF tags
- Rugged design suitable for extreme temperatures and outdoor use
- Compatible with standard proximity and AVI tag formats
- Ideal for parking, gate, and commercial access control systems
Enables automated vehicle identification with long-range passive tag reading for seamless access control.
Adjustable read range from 8 to 25 feet (2.4 – 7.6 meters), allowing for customized detection distances.
Supports hands-free gate operation for authorized vehicles, enhancing convenience and efficiency.
Operates with passive windshield, headlight, or license plate tags—no batteries required for tag functionality.
Secure mounting options for entry lanes, gateposts, or barriers ensure stable and reliable installation.
Utilizes frequency-hopping UHF band (902–928 MHz) to minimize signal interference and maximize performance.
Compatible with dual technology cards, supporting both DK Prox and AVI systems for broader integration.
Delivers LED feedback and high-speed response times for effective user interaction and quick system operation.
Offers timing or trigger-based operating modes, adaptable to various application requirements.
Output format set to 26-bit Wiegand for easy integration with standard access control systems.
Powered by a 12VDC regulated input, drawing 3.0A, ensuring stable electrical performance.
Wide operating temperature range from -35°C to +65°C (-31°F to +149°F), ideal for extreme environments.
Designed for parking access, gated communities, and commercial vehicle entry points.
Built for high reliability in outdoor deployments, ensuring long-term, maintenance-free operation.
| MODEL NAME | DK Prox 1815-350 Long Range AVI Reader |
| PRODUCT TYPE | Proximity Reader |
| VENDOR | Active Pro Aero |
| IDENTIFICATION SYSTEM | Automated Vehicle Identification (AVI) |
| READ RANGE | Adjustable from 8′ to 25′ (2.4 – 7.6 m) |
| APPLICATION TYPE | Hands-free gate operation for authorized vehicles |
| TAGS TYPE | Passive Windshield / Headlight / License Plate (no batteries) |
| MOUNTING LOCATION | Entry lanes, posts, or gates |
| OPERATING FREQUENCY | 902–928 MHz (UHF) |
| CARD COMPATIBILITY | Dual technology cards compatible with standard DK Prox and AVI readers |
| LED FEEDBACK | Yes |
| RESPONSE TIME | High-speed |
| OPERATING MODES | Timing or Trigger |
| OUTPUT FORMAT | 26-bit Wiegand |
| INPUT VOLTAGE | 12VDC Regulated, 3.0A |
| OPERATING TEMPERATURE | -35°C to +65°C (-31°F to +149°F) |
| APPLICATIONS | Parking access, gated communities, commercial vehicle entries |
DK Prox 1815-350 Long Range AVI Reader from Active Pro Aero is a high-performance proximity reader designed for seamless automated vehicle identification (AVI). Ideal for hands-free gate operation, it reads passive tags from 8 to 25 feet (2.4 – 7.6 m) and operates reliably in a variety of commercial and residential applications.
Reliable Long-Range Vehicle Access
Using frequency-hopping UHF (902–928 MHz) technology, the DK Prox 1815-350 delivers fast tag recognition and secure gate access. It is compatible with passive windshield, headlight, and license plate tags—eliminating the need for batteries—and integrates smoothly with both standard DK Prox and AVI readers. LED feedback and high-speed response ensure efficiency and user convenience.
- Adjustable read range: 8 to 25 feet (2.4 – 7.6 m)
- Passive tags—no battery required
- LED indicator with rapid response time
- Mountable on entry lanes, posts, or gates
- Supports 26-bit Wiegand output format
Flexible and Weather-Resistant Integration
Built to function in extreme conditions, the DK Prox 1815-350 operates from -35°C to +65°C (-31°F to +149°F). Installers benefit from simple integration into parking systems, gated communities, and commercial access setups. The unit supports both timing and trigger-based modes and runs on 12VDC regulated power.
- Operating Modes: Timing or Trigger
- Voltage: 12VDC Regulated, 3.0A
- Temperature Range: -35°C to +65°C (-31°F to +149°F)
- Tag Types: Windshield, Headlight, License Plate
- Applications: Parking access, gated entries, vehicle control
Security integrators and installers can rely on the DK Prox 1815-350 from Active Pro Aero to deliver robust long-range vehicle identification and seamless integration with modern access control systems across diverse environments.
Technical Specifications
- Model: 1815-350
- Read Range: 8′ to 25′ (2.4 – 7.6 m), adjustable
- Operating Modes: Timing or Trigger
- Frequency: 902 – 928 MHz (UHF)
- Output Format: 26-bit Wiegand
- Input Voltage: 12VDC Regulated, 3.0A
- Operating Temperature: -35°C to +65°C (-31°F to +149°F)
- Tag Compatibility: Passive windshield, headlight, license plate
- Mounting: Posts, gates, or entry lanes
