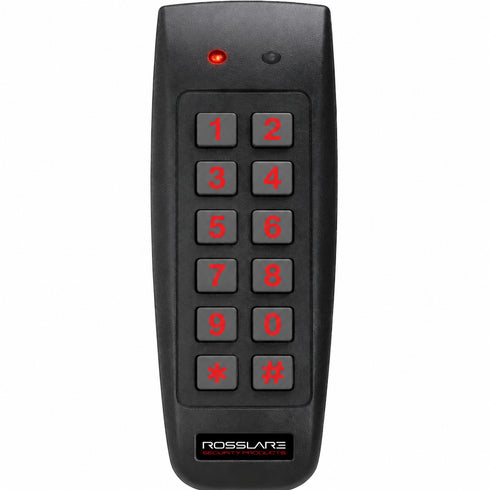

AC-G44 Outdoor Backlit PIN and Proximity Access Controller
The AC G44 outdoor standalone access controller delivers reliable entry management for commercial and industrial security applications. Designed for harsh environments, this weather resistant unit supports PIN and proximity authentication with storage for up to 500 users. The illuminated keypad improves visibility in low light conditions while flexible security modes allow customized access control. Compatible with standard EM cards, this controller supports secure installations requiring durable construction, multiple credential options, and dependable performance for indoor or outdoor entry points.
- Supports up to 500 users with PIN and proximity credentials
- Backlit keypad with programmable 4 to 8 digit PIN codes
- IP65 rated enclosure for indoor and outdoor installations
- Compatible with 125 kHz EM proximity cards
- Dual relay outputs for lock strike and auxiliary control
Supports up to 500 users with flexible credential options including PIN codes, proximity cards, or combined card + PIN authentication for enhanced access security.
Features a built-in 125 kHz proximity reader compatible with all 26-Bit EM cards and a read range of up to 80 mm for convenient user access.
Designed with three programmable user modes including Normal, Secure, and Master User to accommodate different security requirements.
Offers multiple access modes including Normal, Bypass, and Secure operation for customized entry control management.
Equipped with a backlit keypad and illuminated rubber keys that provide easy operation in low-light indoor and outdoor environments.
Built with a rugged epoxy-potted and fully sealed polycarbonate enclosure that delivers reliable operation in harsh weather conditions.
Rated IP65 water resistant, making it suitable for outdoor gate, door, and perimeter access control installations.
Supports both AC and DC power input, operating on 12–24VDC regulated power supplies or 16–24VAC transformers for flexible system integration.
Includes dual Form C relay outputs for lock strike and auxiliary device control, supporting a wide range of access hardware configurations.
Provides programmable auxiliary input modes and Request-to-Exit (REX) support for advanced door monitoring and exit functionality.
Features dual tri-color LED indicators and an integrated sounder to provide clear visual and audible system status notifications.
Includes an optical back tamper sensor that enhances security by detecting unauthorized attempts to remove or interfere with the unit.
Compatible with Rosslare BL-D40 alarm, chime, and strobe enunciator accessories for expanded notification and alert capabilities.
Designed for mullion and gang box installations, simplifying retrofit and new access control deployments in commercial environments.
Backed by a 5-year limited manufacturer warranty, delivering dependable long-term performance and peace of mind.
| MODEL NAME | Rosslare AC-G44 Mullion Backlit PIN & PROX Standalone Controller |
| MANUFACTURER | Rosslare Security Products |
| PRODUCT TYPE | Standalone Access Control Controller |
| APPLICATION | Indoor and outdoor access control systems |
| INSTALLATION TYPE | Mullion mount / Gang Box compatible |
| USER CAPACITY | Up to 500 users |
| ACCESS METHODS | PIN code and proximity card |
| OPERATING VOLTAGE | 12 to 24 VDC regulated power supply |
| AC INPUT VOLTAGE | 16 to 24 VAC transformer |
| STANDBY CURRENT | 95 mA at 12 VDC |
| MAXIMUM CURRENT | 160 mA at 12 VDC |
| LOCK STRIKE RELAY | 2A Form C, N.O. and N.C. |
| AUXILIARY RELAY | 2A Form C, N.O. and N.C. |
| REX INPUT | N.O. Dry Contact |
| AUXILIARY INPUT | N.O. Dry Contact with 10 programmable modes |
| PROXIMITY READER TYPE | 125 kHz ASK modulation |
| CARD COMPATIBILITY | All 26-Bit EM cards |
| MAXIMUM READ RANGE | 80 mm (3.15 in.) |
| KEYPAD TYPE | 2x6 backlit keypad |
| PIN CODE LENGTH | 4 to 8 digits programmable |
| USER LEVELS | Normal, Secure, Master User |
| ACCESS MODES | Normal, Bypass, Secure |
| SECURE MODE | Requires both PIN and PROX credential |
| NORMAL MODE | Single PIN code authentication |
| MASTER USER MODE | Administrative programming access |
| SMART ENROLLMENT | Supports smart enroll and delete technology |
| PROGRAMMING METHOD | Local keypad programming |
| LED INDICATORS | Dual tri-color LED indicators |
| BUILT-IN SOUNDER | Yes |
| AUDIO/VISUAL INTERFACE | Compatible with BL-D40 bell, chime, and siren unit |
| EXIT BUTTON COMPATIBILITY | Compatible with EX-01 Push to Exit button |
| TAMPER SENSOR | Optical back tamper sensor |
| ENCLOSURE MATERIAL | Rugged polycarbonate enclosure |
| ENCLOSURE TYPE | Epoxy potted and fully sealed |
| KEYPAD ILLUMINATION | Red illuminated rubber keys |
| WEATHER RESISTANCE | Suitable for harsh outdoor environments |
| IP RATING | IP65 Water Resistant |
| RFI PROTECTION | Greater than 20 V/m up to 1000 MHz |
| DIMENSIONS | 5.33 x 1.74 x 1.12 in. |
| POWER SOURCE OPTIONS | Transformer (AC) or regulated power supply (DC) |
| CREDENTIAL TYPE | PIN, card, or PIN + card |
| DUAL AUTHENTICATION | Supports code + card authentication |
| MOUNTING HARDWARE | Installation kit included |
| MOUNTING TEMPLATE | Included |
| DOOR CONTROL | Single door standalone operation |
| OUTPUT TYPE | Lock strike and auxiliary relay outputs |
| PROGRAMMABLE INPUTS | 10 configurable auxiliary input modes |
| OPERATING ENVIRONMENT | Indoor and outdoor use |
| SECURITY LEVEL | Commercial-grade standalone access control |
| DOOR MONITORING | Auxiliary monitoring input supported |
| INSTALLATION COMPATIBILITY | Suitable for Gang Box installations |
| ACCESS CONTROL TYPE | Standalone keypad and proximity controller |
| FORM FACTOR | Mullion style slim design |
| HOUSING FINISH | Black rugged enclosure |
| USER MANAGEMENT | Supports adding and deleting users locally |
| READ TECHNOLOGY | EM proximity card technology |
| RELAY CONTACT TYPE | Normally Open and Normally Closed |
| ACCESS INDICATION | LED and sounder notification |
| OUTDOOR SUITABILITY | Fully sealed weather-resistant construction |
| DOOR RELEASE SUPPORT | Compatible with electric lock strikes |
| SECURITY AUTHENTICATION | Single or dual-factor authentication |
| ENVIRONMENTAL PROTECTION | Dust and water resistant enclosure |
| VISUAL STATUS INDICATORS | Tri-color LEDs for system status |
| SOUNDER FUNCTION | Audible operation feedback |
| PROGRAMMING ACCESS | Via integrated keypad |
| ACCESS LEVEL CONTROL | Three configurable access levels |
| CARD FREQUENCY | 125 kHz |
| INSTALLATION ENVIRONMENT | Commercial and residential applications |
| PROTECTION TYPE | Epoxy sealed electronics |
| SYSTEM TYPE | Standalone access control solution |
| ACCESS CONTROL USERS | 500 code/card combinations |
| OPERATING METHOD | PIN entry and proximity card verification |
| CONTROLLER STYLE | Backlit mullion keypad controller |
| DOOR HARDWARE COMPATIBILITY | Works with electric locking devices |
| ALARM INTERFACE | Supports BL-D40 alarm and chime interface |
| WARRANTY | 5-Year Limited Product Warranty |
| CERTIFICATIONS | IP65 Certified |
Rosslare AC-G44 Mullion Backlit PIN & PROX Standalone Controller is a durable and cost-effective access control solution designed for both indoor and outdoor applications. Supporting up to 500 users, this standalone controller combines PIN and proximity authentication for enhanced security in commercial buildings, gated communities, offices, and industrial facilities. With its rugged IP65-rated weather-resistant housing, the AC-G44 delivers dependable performance in harsh environments while maintaining simple installation and programming.
Reliable Access Control for Indoor & Outdoor Installations
The Rosslare AC-G44 offers flexible access management with support for PIN codes, proximity cards, or combined PIN + card authentication. Its illuminated keypad and sealed polycarbonate enclosure make it ideal for outdoor entry points, pedestrian gates, and secured commercial entrances. Featuring multiple user and security modes, this controller is engineered to meet varying security requirements while remaining easy to configure using Rosslare’s Smart Enroll and Delete technology.
- Supports up to 500 users
- Backlit keypad with proximity card reader
- Three user modes: Normal, Secure, and Master
- Three security modes: Normal, Bypass, and Secure
- Programmable 4- to 8-digit PIN codes
- Compatible with 26-Bit EM proximity cards
Built for Harsh Outdoor Environments
Designed with a fully sealed epoxy-potted enclosure, the AC-G44 is suitable for demanding outdoor installations exposed to rain, humidity, and dust. The unit includes dual relay outputs, tamper detection, built-in sounder, and tri-color LED indicators for enhanced monitoring and operation. Its compatibility with accessories such as the BL-D40 alarm/chime unit and EX-01 push-to-exit button makes integration into access control systems simple and efficient.
- IP65-rated weather-resistant construction
- Optical back tamper sensor for added security
- Dual Form C relay outputs for lock and auxiliary control
- Built-in sounder and tri-color LED status indicators
- Supports REX and auxiliary dry contact inputs
Flexible Power and Easy Integration
The AC-G44 operates on either 12-24VDC or 16-24VAC, providing flexibility for a wide range of access control installations. With support for gang box mounting and included installation hardware, technicians can complete installations quickly and efficiently. This controller is ideal for commercial access systems, gated properties, apartment buildings, and industrial facilities requiring dependable standalone access management.
- Commercial building entry systems
- Gated communities and apartment complexes
- Industrial and warehouse access control
- Outdoor pedestrian gate applications
Security professionals and installers looking for a reliable standalone PIN and proximity controller can depend on the Rosslare AC-G44 for durable construction, flexible authentication options, and dependable outdoor performance. Ideal for integration into modern access control systems requiring secure and weather-resistant operation.
Technical Specifications
- Model: AC-G44
- User Capacity: 500 users
- Authentication: PIN code and/or proximity card
- PIN Length: 4 to 8 digits
- Operating Voltage: 12-24VDC or 16-24VAC
- Current Consumption: 95mA standby, 160mA maximum at 12VDC
- Relay Outputs: 2A Form C lock strike and auxiliary relays
- Proximity Reader Frequency: 125 kHz ASK modulation
- Card Compatibility: 26-Bit EM cards
- Tamper Protection: Optical back tamper sensor
- Construction: Epoxy-potted sealed polycarbonate enclosure
- Environmental Rating: IP65 weather resistant
- Dimensions: 5.33 x 1.74 x 1.12 in.
- Warranty: 5-Year Limited Manufacturer Warranty
