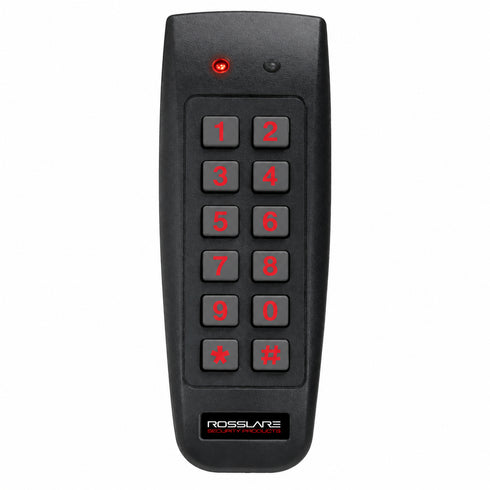

AC-G43 Outdoor Backlit PIN Standalone Access Controller 500 Users 12V to 24V IP65

Rosslare AC-G43 Mullion Backlit PIN Standalone Controller is a durable and cost-effective access control solution designed for both indoor and outdoor installations. Supporting up to 500 users, this standalone controller combines PIN access and proximity card compatibility, making it ideal for commercial buildings, gated communities, offices, and secure entry applications. With its rugged IP65 weather-resistant housing, the AC-G43 delivers reliable performance in harsh environmental conditions.

Reliable Standalone Access Control for Indoor and Outdoor Use

The Rosslare AC-G43 features illuminated rubber keys for easy nighttime operation and supports both PIN code entry and 125 kHz EM proximity credentials. Designed for flexible security configurations, it offers multiple user and security levels including Normal, Secure, and Master modes. The fully sealed polycarbonate enclosure protects the unit from water, dust, and vandalism, making it an excellent choice for exterior entry points and high-traffic environments.

• Supports up to 500 users with smart enroll and delete technology
• Backlit keypad with programmable 4- to 8-digit PIN codes
• Compatible with all 26-Bit EM 125 kHz proximity cards
• IP65-rated weather-resistant housing for outdoor installations
• Three user modes: Normal, Secure, and Master User

Flexible Security Features and Easy Integration

Designed for seamless integration into commercial access systems, the AC-G43 includes dual relay outputs for lock strike and auxiliary control, as well as programmable input modes for request-to-exit and monitoring functions. Built-in LED indicators and an integrated sounder provide clear visual and audible status notifications. The controller is compatible with Rosslare accessories including the BL-D40 alarm and EX-01 push-to-exit button.

• Dual Form-C relay outputs for lock and auxiliary control
• Optical tamper sensor for additional security
• Supports transformer AC or regulated DC power input
• Programmable security modes: Normal, Bypass, and Secure
• Built-in sounder and tri-color LED indicators

Ideal for Commercial and Perimeter Access Applications

The Rosslare AC-G43 is ideal for controlling access to office buildings, apartment complexes, gated entrances, storage facilities, and industrial properties. Its slim mullion design allows installation on narrow door frames and gate posts while maintaining professional aesthetics and dependable operation.

• Commercial office and warehouse entry points
• Apartment and gated community pedestrian gates
• Industrial facilities and outdoor perimeter doors
• Standalone access control retrofit projects

Security professionals and installers seeking a dependable outdoor standalone keypad and proximity controller can rely on the Rosslare AC-G43 for long-lasting performance, flexible programming, and easy integration into modern access control systems.

Technical Specifications

• Model: AC-G43
• User Capacity: 500 users
• Credential Support: PIN codes and 125 kHz EM proximity cards
• PIN Length: 4 to 8 digits
• Operating Voltage: 12-24 VDC or 16-24 VAC
• Current Consumption: 75 mA standby / 125 mA maximum at 12VDC
• Relay Outputs: 2A Form C Lock Strike and Auxiliary relays
• Inputs: REX and Auxiliary dry contact inputs
• Tamper Protection: Optical back tamper sensor
• Indicators: Two tri-color LEDs with built-in sounder
• Housing: Epoxy-potted sealed polycarbonate enclosure
• Weather Rating: IP65 water resistant
• Dimensions: 5.33 x 1.74 x 1.12 in.
• Warranty: 5-Year Limited Manufacturer Warranty
