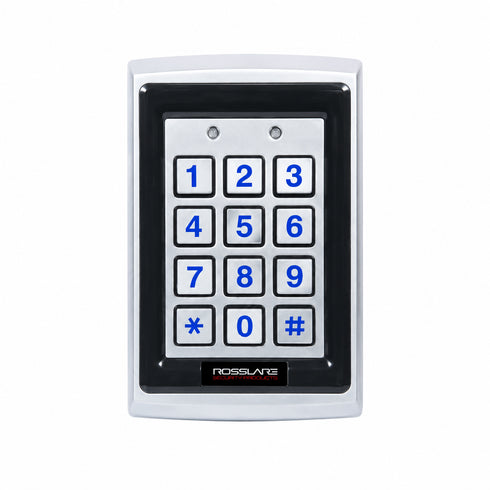

AYC-Q60 Convertible Anti Vandal Backlit Prox and PIN Reader
The AYCQ60 Convertible Anti Vandal Backlit Prox and PIN Reader delivers secure access control for commercial and industrial environments. Designed for indoor and outdoor operation, this reader supports multiple proximity card formats and PIN authentication options for enhanced security. The durable anti vandal housing, backlit piezoelectric keypad, and integrated tamper detection provide dependable performance in demanding installations. Compatible with standalone controller functionality, it supports up to 500 users and offers flexible security modes for advanced access management applications.
- Supports proximity card and PIN authentication
- Weather resistant design for indoor outdoor installation
- Backlit piezoelectric keypad with dual color LEDs
- Standalone controller supports up to 500 users
- Integrated tamper detection for added protection
Supports both HID Genuine Technology™ Prox cards and Rosslare EM proximity credentials, offering flexible compatibility with existing access control systems.
Functions as both a multi-format proximity reader and a standalone 500-user controller for versatile access management applications.
Allows secure entry using PIN codes, proximity cards, or combined card + PIN authentication for enhanced security control.
Features durable anti-vandal construction with weather-resistant performance suitable for indoor and outdoor installations.
Equipped with unique backlit piezoelectric keys that improve visibility and usability in low-light environments.
Includes dual tri-colored LED indicators and an integrated sounder for intuitive system status feedback and programming guidance.
Supports multiple output formats including Wiegand 26-Bit, Clock & Data, and Wiegand + PIN for broad system integration.
Offers flexible PIN code configuration with fixed 4, 5, or 6-digit lengths, or variable lengths from 4 to 8 digits.
Provides advanced tamper protection with optical back and cover tamper detection outputs for improved security monitoring.
Automatically recognizes Rosslare PS-x5 intelligent power supplies, enabling seamless conversion into a secure standalone controller.
Features three selectable security modes including Bypass, Normal, and Secure modes to match different operational requirements.
Operates within a wide 5–16 VDC voltage range, making integration with various access control systems simple and reliable.
Designed to withstand harsh environments with an operating temperature range from -35°C to 66°C (-31°F to 151°F).
Delivers compact installation flexibility with a slim profile measuring 120 x 76 x 22 mm for clean mounting in tight spaces.
| MODEL NAME | Rosslare AYC-Q60 Convertible Anti Vandal Backlit Go Prox & PIN Reader |
| BRAND | Rosslare |
| PRODUCT TYPE | Convertible Proximity Card Reader and Standalone Controller |
| SKU | ROS-AYC-Q60 |
| NSID | 25288 |
| READER TECHNOLOGY | 125 kHz HID Prox and Rosslare PROX EM |
| CARD COMPATIBILITY | HID Prox Cards/Tags and Rosslare EM Cards |
| FREQUENCY | 125 kHz |
| OUTPUT FORMAT | Wiegand, Clock & Data |
| WIEGAND SUPPORT | 26-Bit Wiegand and custom HID bit output |
| PIN ENTRY | Integrated Backlit Keypad |
| KEYPAD TYPE | Piezoelectric Anti-Vandal Keys |
| BACKLIGHTING | Yes |
| STANDALONE CONTROLLER MODE | Yes |
| MAXIMUM USERS | 500 Users |
| ENTRY METHODS | Card Only, PIN Only, or Card + PIN |
| PIN LENGTH OPTIONS | 4, 5, 6 Digits or Flexible 4–8 Digits |
| SECURITY LEVELS | Bypass, Normal, Secure |
| SECURE MODE | Card + PIN Required |
| NORMAL MODE | Card or PIN Required |
| BYPASS MODE | Free Entry Access |
| OPERATING VOLTAGE RANGE | 5–16 VDC |
| INPUT CURRENT | 100 mA |
| MAX INPUT CURRENT | 140 mA |
| READ RANGE | 9 cm (3.5 in.) |
| CONTROL INPUT | Dry Contact N.O. |
| OPERATING TEMPERATURE | -35°C to 66°C (-31°F to 151°F) |
| DIMENSIONS | 120 x 76 x 22 mm (4.72 x 3 x 0.96 in.) |
| LED INDICATORS | 2 Tri-Colored LEDs |
| SOUNDER | Integral Sounder Included |
| TAMPER DETECTION | Back and Cover Optical Tamper Detection |
| TAMPER OUTPUT | Dedicated Tamper Output |
| INSTALLATION TYPE | Surface Mount |
| APPLICATION | Access Control Systems |
| USAGE ENVIRONMENT | Indoor and Outdoor |
| WEATHER RESISTANCE | All-Weather Operation |
| ANTI-VANDAL DESIGN | Yes |
| MENU PROGRAMMING | User-Friendly Keypad Menu System |
| PROGRAMMING INDICATORS | LED and Sounder Guided |
| POWER SUPPLY COMPATIBILITY | Rosslare PS-x5 Intelligent Power Supply Family |
| AUTO DETECTION | Automatic Power Supply Recognition |
| CONTROLLER RELAYS | Secure Relays Included |
| CARD DATA OUTPUT | Configurable Wiegand and Clock & Data |
| HID SUPPORT | Uses Genuine HID Technology™ |
| EM CARD SUPPORT | Rosslare EM Proximity Cards Supported |
| CONTROLLER FUNCTIONALITY | Integrated Standalone Access Controller |
| READER FUNCTIONALITY | Multi-Format Proximity Reader |
| DESIGN STYLE | Smooth and Attractive Modern Design |
| KEYPAD FEEDBACK | Audible and Visual Feedback |
| ACCESS CONTROL TYPE | Electronic Access Control Reader |
| MOUNTING LOCATION | Doors, Gates, and Entry Points |
| COMMUNICATION INTERFACE | Wiegand and Clock & Data |
| KEYPAD MATERIAL | Piezoelectric Metal Keys |
| CARD READING TYPE | Contactless Proximity Reading |
| CONTROLLER CAPACITY | 500 Credential Storage Capacity |
| ENTRY AUTHENTICATION | Single or Dual Factor Authentication |
| OUTDOOR SUITABILITY | Yes |
| INDOOR SUITABILITY | Yes |
| OPERATING MODE | Reader Mode or Controller Mode |
| ACCESS LEVEL OPTIONS | Selectable Security Levels |
| SOUND ALERTS | Built-In Audible Notifications |
| VISUAL ALERTS | LED Status Indicators |
| ENVIRONMENTAL RATING | Designed for Harsh Conditions |
| SYSTEM INTEGRATION | Compatible with Standard Access Control Systems |
| FORM FACTOR | Slim Rectangular Reader |
| HOUSING CONSTRUCTION | Durable Anti-Vandal Housing |
| ACCESS METHOD FLEXIBILITY | Card, PIN, or Combined Authentication |
| READER OUTPUT TYPE | Multi-Format Output |
| INSTALLATION ENVIRONMENT | Commercial and Industrial Access Points |
| CONTROLLER SECURITY | Secure Relay Operation |
| USER INTERFACE | Keypad, LEDs, and Sounder |
| MANUFACTURER | Rosslare Security Products |
| DEVICE CATEGORY | Access Control Reader/Controller |
| TECHNOLOGY TYPE | Proximity RFID Access Control |
| INSTALLATION APPLICATION | Commercial Security Systems |
| CREDENTIAL SUPPORT | HID and EM Credentials |
| ANTI-TAMPER FEATURE | Optical Tamper Monitoring |
| RELAY SECURITY | Secure Relay Integration |
| PRODUCT FUNCTION | Reader and Controller Combination Unit |
| COMMERCIAL USE | Yes |
| INDUSTRIAL USE | Yes |
| SMART POWER SUPPORT | Compatible with Intelligent Power Supplies |
| READER STYLE | Convertible Multi-Application Reader |
| ACCESS CONTROL SUPPORT | Multi-Application Security Installations |
Rosslare AYCQ60 Convertible Anti Vandal Backlit Go Prox & PIN Reader is a versatile access control solution designed for secure indoor and outdoor installations. This advanced reader and standalone controller combines HID Genuine Technology™ compatibility with Rosslare EM proximity support, allowing seamless integration into commercial, industrial, and residential access control systems. Built with a vandal-resistant housing and weather-resistant design, the AYCQ60 delivers reliable operation in demanding environments.
Advanced Multi-Format Access Control Solution
The Rosslare AYCQ60 supports both 125 kHz HID Prox cards and Rosslare EM proximity credentials, making it ideal for upgrading or expanding existing access control systems. In reader mode, it outputs credential data in multiple formats including Wiegand 26-Bit and Clock & Data. When paired with Rosslare intelligent power supplies, the unit converts into a standalone controller supporting up to 500 users with PIN and/or card authentication.
- Supports HID Prox Cards/Tags (125 kHz FSK)
- Compatible with Rosslare EM proximity cards
- Multi-format output including Wiegand 26-Bit and Clock & Data
- Standalone controller functionality for up to 500 users
- PIN and/or proximity card authentication
Durable Anti-Vandal and Weather-Resistant Design
Designed for high-traffic and exposed installations, the AYCQ60 features a rugged anti-vandal housing with optical tamper detection for enhanced security. The unit includes unique backlit piezoelectric keys, dual tri-colored LEDs, and an integrated sounder for intuitive user feedback and easy programming. Its weather-resistant construction ensures dependable operation in both indoor and outdoor environments.
- Anti-vandal construction for enhanced durability
- Weather-resistant for indoor and outdoor applications
- Backlit piezoelectric keypad for low-light visibility
- Dual tri-colored LEDs and built-in sounder
- Optical tamper detection on cover and back
Flexible Security Modes and Easy Integration
The Rosslare AYCQ60 provides flexible security operation modes including Bypass, Normal, and Secure access levels. Installers can configure fixed PIN lengths of 4, 5, or 6 digits, or flexible PIN lengths from 4 to 8 digits. With support for dry contact inputs and intelligent power supply integration, this reader is ideal for commercial buildings, gated communities, industrial facilities, and secured entry points.
- Three controller security modes for flexible access management
- Configurable PIN lengths from 4 to 8 digits
- Compatible with Rosslare PS-x5 intelligent power supplies
- Suitable for commercial and industrial access control systems
- Ideal for gates, offices, apartments, and secured facilities
Security professionals and installers seeking a rugged multi-format proximity reader and keypad controller can rely on the Rosslare AYCQ60 for dependable performance, advanced functionality, and easy integration into modern access control systems.
Technical Specifications
- Model: AYCQ60
- Technology: HID Prox & Rosslare EM Proximity
- Frequency: 125 kHz
- User Capacity: Up to 500 users
- PIN Length: 4–8 digits configurable
- Operating Voltage: 5–16 VDC
- Input Current: 100 mA
- Maximum Input Current: 140 mA
- Read Range: 9 cm (3.5 in.)
- Control Input: Dry Contact N.O.
- Operating Temperature: -35°C to 66°C (-31°F to 151°F)
- Dimensions: 120 x 76 x 22 mm (4.72 x 3 x 0.96 in.)
