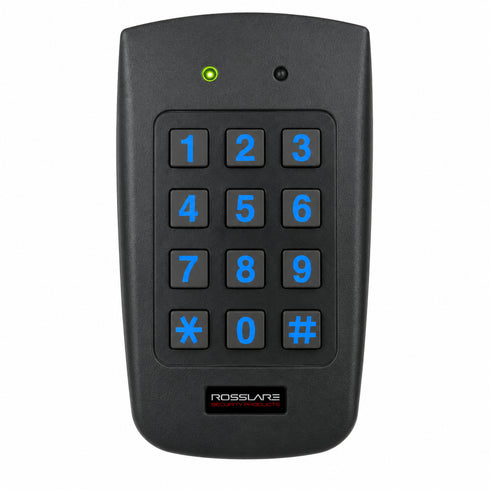

AYC-F60 Rosslare 125kHz PIN Proximity Access Reader
Professional standalone access control reader designed for secure indoor and outdoor entry management applications. Supports 125kHz proximity credentials with keypad authentication for enhanced security control. Built with weather resistant IP65 protection, illuminated piezoelectric keypad, and multi format compatibility for commercial and industrial installations. Features support for up to 500 users, tri colored LED indicators, integrated sounder alerts, tamper detection, and flexible security modes including card only, PIN only, or combined authentication operation. Ideal for gates, secured doors, warehouses, offices, and high traffic facilities requiring dependable access management performance.
- Supports 500 users with standalone secure access control operation
- Compatible with 125kHz proximity cards and HID credential formats
- IP65 weather resistant housing for indoor and outdoor installations
- Backlit piezoelectric keypad with dual tri colored LED indicators
- Supports card only, PIN only, or card plus PIN authentication
Supports advanced multi-application access control functionality, making it ideal for intelligent and secure entry management installations.
Features a sleek and modern design with durable all-weather construction suitable for both indoor and outdoor environments.
Equipped with dual tri-colored LED indicators and an integrated sounder for clear programming and operational feedback.
Includes unique backlit piezoelectric keypad keys that enhance visibility and durability in low-light conditions.
Provides a user-friendly menu interface using keypad commands, LED indicators, and audible alerts for simplified setup and operation.
Built with back and cover optical tamper detection along with tamper output functionality for enhanced security monitoring.
Operates by default as a multi-format reader supporting Rosslare PROX, HID Genuine Technology formats, Wiegand 26-Bit, and Clock & Data communication.
Automatically detects Rosslare PS-x5 intelligent power supplies, enabling conversion into a standalone 500-user controller with secure relay outputs.
Offers three selectable security modes including free entry bypass mode, standard card or PIN authentication, and high-security card plus PIN verification.
Supports 125 kHz proximity cards and dual-technology ISO credentials including clamshell cards and key tags.
Delivers reliable reading performance with a maximum proximity card read range of up to 60 mm (2.36 inches).
Designed for long cable runs with support for up to 150 meters (500 feet) between the reader and host controller using 18 AWG cable.
Engineered for harsh environments with IP65-rated weather resistance, epoxy potting, and an operating temperature range from -30°C to 65°C.
Consumes low power with a 5–16 VDC operating voltage range, 100 mA standby current, and 140 mA maximum input current.
Ideal for commercial buildings, industrial facilities, gated properties, and secure access control systems requiring durable PIN and proximity authentication.
| MODEL NAME | Rosslare AYC-F60 goPROX PIN/Proximity Reader |
| BRAND | Rosslare Security Products |
| PRODUCT TYPE | PIN/Proximity Reader with Standalone Controller Capability |
| USER CAPACITY | 500 Users |
| FREQUENCY | 125 kHz |
| CARD RANGE | 60 mm (2.36 in.) |
| KEYPAD TYPE | Backlit Piezoelectric Keys |
| SECURITY LEVELS | 3 Levels: Bypass, Normal, Secure |
| OUTDOOR RATING | IP65 Weather Resistant |
| APPLICATION | Access Control Systems for Indoor and Outdoor Installations |
| OPERATION MODE | Reader Mode and Standalone Controller Mode |
| COMPATIBLE CARD TYPES | 125 kHz ISO Cards, Clamshell Cards, and Tags |
| SUPPORTED CARD FORMATS | Rosslare PROX, HID Genuine Technology |
| TRANSMISSION FORMAT | Wiegand 26-Bit and Clock & Data |
| OPERATING VOLTAGE | 5–16 VDC |
| STANDBY CURRENT | 100 mA |
| MAXIMUM CURRENT | 140 mA |
| LED INDICATORS | Dual Tri-Colored LEDs |
| SOUNDER | Integral Sounder Included |
| PROGRAMMING METHOD | Menu-Based via Keypad, LEDs, and Sounder |
| TAMPER DETECTION | Back and Cover Optical Tamper Detection |
| TAMPER OUTPUT | Open Collector, Active Low |
| MAX TAMPER SINK CURRENT | 32 mA |
| LED CONTROL INPUT | Dry Contact N.O. |
| HOST CONTROLLER DISTANCE | Up to 150 m (500 ft) |
| CABLE REQUIREMENT | 18 AWG Cable Recommended |
| CONTROLLER SUPPORT | Supports Rosslare PS-x5 Intelligent Power Supply Family |
| RELAY SUPPORT | Secure Relay Integration |
| ENTRY MODES | Card Only, PIN Only, or Card + PIN |
| BYPASS MODE | Free Entry Access |
| NORMAL MODE | Card or PIN Required |
| SECURE MODE | Card and PIN Required |
| OPERATING TEMPERATURE | -30°C to 65°C |
| OPERATING HUMIDITY | 0% to 95% Non-Condensing |
| WEATHER RESISTANCE | Epoxy Potted and Weather Resistant |
| INDOOR/OUTDOOR USE | Suitable for Indoor and Outdoor Applications |
| DESIGN | Slim and Attractive Modern Design |
| KEYPAD ILLUMINATION | Backlit Keys for Low-Light Operation |
| MOUNTING STYLE | Surface Mount |
| DIMENSIONS | 4.72" L x 3" W x 0.87" H |
| PACKAGE DIMENSIONS | 5 x 4 x 2 inches |
| WEIGHT | 1.05 lbs |
| ITEM WEIGHT | 1 lb |
| MODEL NUMBER | AYCF60 |
| ASIN | B00WIQOW2G |
| DATE FIRST AVAILABLE | April 22, 2015 |
| MANUFACTURER | Rosslare Security Products |
| READER TECHNOLOGY | Proximity RFID Reader |
| COMMUNICATION FORMAT | Clock & Data / Wiegand |
| READER TYPE | Multi-Format Reader |
| PROXIMITY TECHNOLOGY | EM/HID Prox |
| ACCESS CONTROL TYPE | Electronic Access Control |
| INSTALLATION ENVIRONMENT | Commercial and Residential Security Systems |
| DOOR ACCESS METHOD | RFID Card and PIN Authentication |
| VISUAL FEEDBACK | LED Status Indicators |
| AUDIO FEEDBACK | Built-In Sounder Notifications |
| MENU SYSTEM | User-Friendly Guided Menu |
| RELAY SECURITY | Secure Relay Output Support |
| WIRING INTERFACE | Standard Access Control Wiring |
| POWER SUPPLY COMPATIBILITY | Compatible with Intelligent Power Supplies |
| RESPONSE INDICATION | LED and Audible Alerts |
| TAMPER SECURITY | Optical Tamper Alarm Protection |
| CARD COMPATIBILITY | Supports HID and Rosslare Cards |
| USER INTERFACE | Keypad with LED/Sounder Guidance |
| ENCLOSURE TYPE | Weather-Sealed Housing |
| INSTALLATION TYPE | Wall Mounted Access Reader |
| INDUSTRY USE | Commercial Security and Access Control |
| ACCESS AUTHENTICATION | Multi-Factor Authentication Support |
| CONTROLLER FUNCTIONALITY | Standalone 500-User Controller Capability |
| ENVIRONMENTAL PROTECTION | Suitable for Harsh Outdoor Conditions |
| SYSTEM INTEGRATION | Compatible with Existing Access Control Systems |
| PRODUCT CATEGORY | Security Access-Control Keypads |
| BEST SELLERS RANK | #450 in Security Access-Control Keypads |
| CUSTOMER RATING | 5.0 out of 5 Stars |
| REVIEW COUNT | 1 Global Rating |
| CERTIFICATION LEVEL | IP65 Rated Protection |
| POWER TYPE | Low Voltage DC Powered |
| ACCESS LEVEL OPTIONS | Selectable Security Modes |
| KEYPAD MATERIAL | Piezoelectric Touch Keys |
| STATUS MONITORING | Visual and Audible Status Feedback |
| INTEGRATED FEATURES | Reader, Keypad, LEDs, Sounder, Tamper Detection |
| SECURITY APPLICATION | Controlled Door Entry Systems |
| RFID TECHNOLOGY | 125 kHz Proximity RFID |
| CARD RECOGNITION | Automatic Format Recognition |
| HOUSING PROTECTION | Epoxy Potted Sealed Housing |
| READER FUNCTION | PIN and RFID Credential Authentication |
| SYSTEM TYPE | Electronic Door Access Security Device |
Rosslare AYC-F60 goPROX PIN/Proximity Reader from Rosslare Security Products is a professional-grade access control reader and standalone controller designed for secure indoor and outdoor installations. Supporting up to 500 users, this advanced reader combines PIN authentication and 125kHz proximity card technology, making it ideal for commercial buildings, gated communities, offices, warehouses, and industrial facilities. Its durable IP65 weather-resistant construction ensures dependable operation in demanding environments.
Advanced Multi-Format Access Control Performance
The AYC-F60 goPROX supports multiple card technologies including Rosslare PROX and HID-compatible formats, delivering flexible integration with existing access control systems. Featuring unique backlit piezoelectric keypad keys, dual tri-colored LEDs, and an integrated sounder, the unit offers intuitive operation and programming feedback for installers and users alike.
- Supports up to 500 users in standalone controller mode
- 125kHz proximity reader compatible with EM/HID PROX cards
- Multi-format output including Wiegand 26-Bit and Clock & Data
- Unique backlit piezoelectric keypad for durability and visibility
- Dual tri-colored LEDs with integrated sounder indicators
Secure and Weather-Resistant Design
Built for both indoor and outdoor applications, the Rosslare AYC-F60 features a sealed IP65-rated housing with optical tamper detection for enhanced security. The device supports three configurable security levels including card-only, PIN-only, or card + PIN authentication for higher security installations.
- IP65 weather-resistant housing for outdoor use
- Optical tamper detection for added security
- Three security modes: card, PIN, or card + PIN
- Compatible with Rosslare intelligent power supply systems
- Reliable operation in harsh weather conditions
Ideal for Commercial and Industrial Applications
The AYC-F60 is designed for seamless integration into modern access control systems and supports long cable runs up to 500 feet. Security professionals and installers appreciate its reliable performance, flexible compatibility, and low-maintenance operation in high-traffic environments.
- Commercial office buildings and warehouses
- Apartment complexes and gated communities
- Industrial facilities and secured perimeters
- Indoor and outdoor access control systems
Professionals seeking a secure and weather-resistant PIN/proximity reader can rely on the Rosslare AYC-F60 goPROX for dependable access control performance, flexible integration, and advanced security features suitable for modern commercial installations.
Technical Specifications
- Model: AYC-F60
- User Capacity: 500 Users
- Frequency: 125kHz
- Card Compatibility: EM/HID PROX Cards
- Output Formats: Wiegand 26-Bit, Clock & Data
- Operating Voltage: 5–16 VDC
- Standby Current: 100 mA
- Maximum Current: 140 mA
- Maximum Read Range: 60 mm (2.36 in.)
- Indicators: Two Tri-Colored LEDs and Integrated Sounder
- Security Levels: Card Only, PIN Only, Card + PIN
- Operating Temperature: -30°C to 65°C
- Humidity: 0% to 95% Non-Condensing
- Outdoor Rating: IP65 Weather-Resistant
- Dimensions: 4.72" L x 3" W x 0.87" H
- Weight: 1.05 lbs
