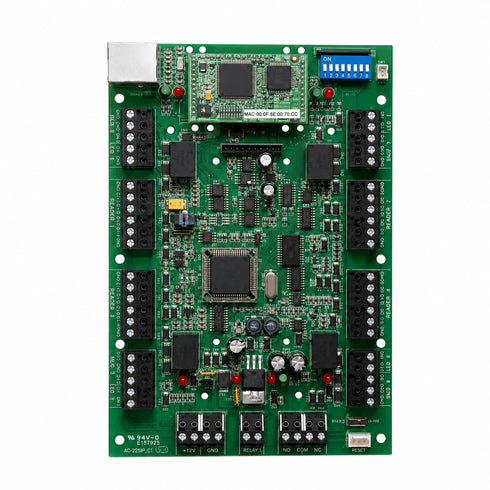

AC-425IP-PCBA Expandable Networked Access Control PCBA Four Reader TCP IP
AC425IP expandable networked access control printed circuit board assembly designed for secure commercial and industrial entry management. Supports four reader ports with TCP IP connectivity and Ethernet communication for centralized control. Features programmable relay outputs, supervised inputs, credential capacity for up to 30000 users, and event storage for monitoring activity. Built for scalable security deployments requiring reliable access management and integration with advanced control platforms.
- Supports four reader ports
- TCP IP and Ethernet connectivity
- Stores up to 30000 credentials
- Four programmable relay outputs
- Event logging for 20000 records
Supports up to 4 reader ports with 6-wire connectivity, enabling flexible multi-door access control management.
Expandable networked access controller designed for scalable security installations in commercial and enterprise environments.
Features TCP/IP communication with a built-in 10/100 Ethernet port for reliable network integration.
Operates with Rosslare's AxTraxNG™ Server platform for centralized access control monitoring and management.
Stores up to 30,000 active credentials including card and PIN users for high-capacity deployments.
Maintains an event log capacity of 20,000 records to support security auditing and activity tracking.
Equipped with 4 supervised high-impedance inputs for secure monitoring of connected devices and sensors.
Includes 4 fully programmable relay outputs rated at 5A @ 30VDC with normally open and normally closed configurations.
Provides 12VDC output voltage with a maximum current draw of 245 mA for dependable system performance.
Features LED control output and tamper input functionality to improve system security and status monitoring.
Designed as a Printed Circuit Board Assembly (PCBA) for custom enclosure integration and installation flexibility.
Certified to CE and FCC standards for compliance with safety, EMC, radio interference, and regulatory requirements.
Built for professional access control environments requiring reliable network communication and expandable infrastructure.
| MODEL NAME | Rosslare AC-425IP Expandable Networked Access Control for PCBA Only - 4 Readers - TCP/IP |
| BRAND | Rosslare |
| SKU | RSL-AC-425IP-PCBA |
| PRODUCT TYPE | Printed Circuit Board Assembly Access Control Panel |
| ACCESS CONTROL TYPE | Expandable Networked Access Control |
| READER SUPPORT | 4 Reader Ports |
| READER WIRING | 6-wire reader connections |
| OUTPUT VOLTAGE | 12 VDC |
| MAX CURRENT | 245 mA |
| LED CONTROL OUTPUT | Supported |
| TAMPER INPUT | Included |
| INPUT TYPE | Supervised High-Impedance Inputs |
| INPUT QUANTITY | 4 Inputs |
| MAX INPUT VOLTAGE | 5 VDC |
| OUTPUT TYPE | Programmable Relay Outputs |
| OUTPUT QUANTITY | 4 Outputs |
| RELAY TYPE | N.O. and N.C. |
| RELAY RATING | 5A @ 30VDC |
| RELAY PROGRAMMING | Fully Programmable |
| INTERFACE TYPE | TCP/IP |
| ETHERNET SUPPORT | 10/100 Ethernet Port |
| NETWORKING PLATFORM | Rosslare AxTraxNG Server |
| ACTIVE USERS SUPPORTED | 30,000 Credentials (Card & PIN) |
| CREDENTIAL TYPES | Card and PIN |
| EVENT LOG CAPACITY | 20,000 Events |
| HOUSING TYPE | PCBA Only |
| NETWORK TYPE | TCP/IP Network |
| COMMUNICATION METHOD | Ethernet |
| PCB FORMAT | Printed Circuit Board Assembly |
| SAFETY CERTIFICATION | CE Safety Certified |
| EMC CERTIFICATION | ENC Certified |
| RFI COMPLIANCE | Supported |
| LVD COMPLIANCE | RED 2014/53/EU |
| FCC COMPLIANCE | CFR47 Part 15B |
| WIDTH | 14.3 in. |
| HEIGHT | 10.4 in. |
| DEPTH | 3.4 in. |
| DIMENSIONS | 14.3 x 10.4 x 3.4 in. |
| WEIGHT | 3.4 kg (7.5 lb) |
| INSTALLATION TYPE | Networked Access Control System Integration |
| ACCESS EXPANSION | Expandable System |
| SERVER COMPATIBILITY | AxTraxNG Server Compatible |
| CONTROL PANEL TYPE | Network Access Controller |
| APPLICATION | Commercial Access Control |
| USER MANAGEMENT | Credential-Based Access |
| CARD SUPPORT | Supported |
| PIN SUPPORT | Supported |
| MONITORING CAPABILITY | Event Logging |
| ACCESS EVENT STORAGE | 20,000 Event Capacity |
| POWER INPUT TYPE | DC Power |
| BOARD CONFIGURATION | PCBA Board Only |
| NETWORK PORT SPEED | 10/100 Mbps |
| EXPANSION SUPPORT | Yes |
| ACCESS MANAGEMENT TYPE | Centralized Server Management |
| DOOR CONTROL SUPPORT | 4 Reader Controlled Access Points |
| SECURITY INTEGRATION | Network Security Infrastructure |
| INPUT MONITORING | Supervised Input Monitoring |
| OUTPUT CONFIGURATION | Relay Controlled Outputs |
| COMMERCIAL USE | Yes |
| PROTOCOL SUPPORT | TCP/IP |
| SYSTEM TYPE | Multi-Reader Networked Controller |
| STATUS INDICATION | LED Control Output |
Rosslare AC-425IP Expandable Networked Access Control Panel from Rosslare is a powerful TCP/IP networked access control solution designed for commercial and enterprise security environments. Supporting up to 4 reader ports with expandable architecture, this controller delivers reliable performance for office buildings, industrial facilities, commercial properties, and secured entry applications requiring centralized credential management and event monitoring.
Advanced Networked Access Control Performance
Built for scalable deployments, the AC-425IP integrates seamlessly with Rosslare AxTraxNG™ Server software, providing centralized control for credential management, monitoring, and reporting. The panel supports up to 30,000 active credentials and stores 20,000 event logs, making it ideal for high-traffic access control environments. With integrated TCP/IP connectivity and multiple programmable relay outputs, installers can deploy secure and flexible entry management systems with confidence.
- Supports 4 reader ports (6-wire configuration)
- TCP/IP communication with 10/100 Ethernet connectivity
- Handles up to 30,000 active Card & PIN credentials
- Stores up to 20,000 access events
- 4 programmable relay outputs rated 5A @ 30VDC
- 4 supervised high-impedance inputs
- LED control output and tamper input support
Designed for Commercial Security Integration
The Rosslare AC-425IP printed circuit board assembly is engineered for professional access control installations where scalability, security, and network connectivity are essential. Its expandable architecture allows seamless integration into commercial access control systems while maintaining reliable operation and compliance with major industry certifications.
- Commercial office access management
- Industrial facility entry control
- Enterprise security deployments
- Apartment and multi-tenant property access systems
- Centralized credential management applications
Security professionals looking for a network-ready access control controller can rely on the Rosslare AC-425IP to deliver dependable performance, scalable integration, and advanced credential management capabilities for demanding security installations.
Technical Specifications
- Model: AC-425IP
- Type: Printed Circuit Board Assembly (PCBA)
- Reader Capacity: 4 reader ports (6-wire)
- Operating Voltage: 12 VDC
- Maximum Current Consumption: 245 mA
- Inputs: 4 supervised high-impedance inputs
- Maximum Input Voltage: 5 VDC
- Outputs: 4 programmable relay outputs (N.O. / N.C.)
- Relay Rating: 5A @ 30VDC
- Communication Interface: TCP/IP
- Network Port: 10/100 Ethernet
- Software Platform: Rosslare AxTraxNG™ Server
- User Capacity: 30,000 active credentials
- Event Log Capacity: 20,000 events
- Tamper Input: Supported
- Housing: Printed Circuit Board Assembly Only
- Certifications: CE (Safety, EMC, RFI, LVD RED 2014/53/EU), FCC CFR47 Part 15B
- Dimensions: 14.3 × 10.4 × 3.4 in.
- Weight: 3.4 kg (7.5 lb)
