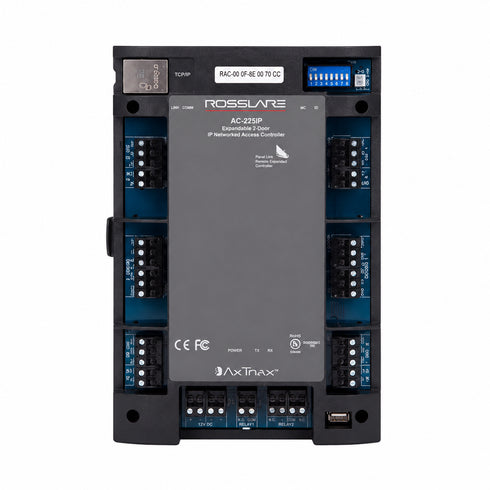

AC-225IP-DIN Network Access Control Panel Two Reader TCP IP
Advanced network access control solution designed for secure entry management in commercial and industrial environments. Supports two reader connections with expansion capability, credential management, event tracking, TCP IP communication, supervised inputs, relay outputs, and multi user authentication. Built for reliable performance with DIN rail mounting support, protective housing, server connectivity, and scalable access management for high security installations.
- Supports up to 30000 credentials
- Two reader connectivity expandable design
- TCP IP network communication
- Event storage up to 20000 records
- DIN housing secure installation support
Supports up to 2 reader ports with expansion capability up to 4 readers, providing flexible access control scalability for growing security installations.
Handles up to 30,000 active user credentials in offline mode, enabling reliable management of large facilities and organizations.
Stores up to 20,000 event history entries per computer for detailed activity tracking and audit reporting.
Features TCP/IP network connectivity with an onboard RJ-45 Ethernet port for streamlined communication and centralized access management.
Designed with DIN rail housing and wall mount compatibility for versatile installation in commercial and industrial environments.
Supports multi-user authentication to enhance security protection and strengthen access verification procedures.
Compatible with a wide range of Wiegand and PIN formats, allowing integration with multiple reader technologies.
Includes 4 supervised high impedance inputs with expansion support up to 12 inputs using compatible expansion modules.
Equipped with 4 Form C 5 Amp relay outputs, expandable up to 8 outputs for increased control functionality.
Operates on 12 VDC power with LED control output and tamper input support for enhanced monitoring capabilities.
Integrates with Rosslare AxTraxNG™ Server platform for advanced networked access control administration.
Built with protective housing and expansion slot support to simplify upgrades and long-term system expansion.
Engineered for dependable operation in temperatures ranging from 32°F to 120°F, supporting reliable indoor installation performance.
Certified to CE and FCC standards, helping ensure compliance with recognized safety and communication requirements.
| MODEL NAME | Rosslare AC-225IP-DIN Expandable Networked Access Control Panel |
| BRAND | Rosslare |
| SKU | RSL-AC-225IP-DIN |
| PRODUCT TYPE | Network Control Panel / DIN Housing |
| ACCESS CONTROL TYPE | Expandable Networked Access Control System |
| MOUNTING TYPE | DIN Rail Mount / Wall Mount |
| HOUSING TYPE | DIN Housing |
| READER PORTS | 2 Reader Ports |
| MAXIMUM READERS | Supports up to 4 Readers |
| USER CAPACITY | 30,000 Active Credentials (Card & PIN) |
| OFFLINE USER SUPPORT | Supports up to 30,000 Users in Offline Mode |
| SERVER CAPACITY | Unlimited Server-Based Capacity |
| EVENT HISTORY | 20,000 Event Entries Per Computer |
| EVENT LOG CAPACITY | 20,000 Events |
| AUTHENTICATION TYPE | Multi-User Authentication |
| SECURITY LEVEL | High-Level Security |
| SUPPORTED FORMATS | Wiegand and PIN Formats |
| INPUT TYPE | 4 Supervised High Impedance Inputs |
| EXPANDED INPUT SUPPORT | 8 or 12 Inputs with Expansion Boards |
| INPUT VOLTAGE MAX | 5 VDC |
| OUTPUT TYPE | 4 Form C Relay Outputs |
| RELAY RATING | 5 Amp Relay Outputs |
| EXPANDED OUTPUT SUPPORT | 8 Outputs with Expansion Boards |
| OUTPUT VOLTAGE | 12 VDC |
| MAX CURRENT | 245 mA |
| LED CONTROL | LED Control Output Included |
| TAMPER INPUT | Integrated Tamper Input |
| NETWORK INTERFACE | TCP/IP |
| ETHERNET SUPPORT | 10/100 Ethernet Port |
| RJ-45 CONNECTOR | Onboard RJ-45 Connector |
| SERIAL PORT SUPPORT | Integrated Network Communication |
| NETWORK MANAGEMENT | Rosslare AxTraxNG Server Compatible |
| EXPANSION SUPPORT | Supports MD-D02B Expansion Board |
| ADDITIONAL EXPANSION | Supports MD-IO84B Expansion Board |
| EXPANSION SLOT | 1 Expansion Slot Available |
| ENCLOSURE TYPE | Protective Cover Enclosure |
| INSTALLATION ENVIRONMENT | Indoor Access Control Applications |
| DIMENSIONS | 7.6 x 5.4 x 1.5 Inches |
| WEIGHT | 0.36 kg (12.7 oz) |
| OPERATING TEMPERATURE MIN | 0°C (32°F) |
| OPERATING TEMPERATURE MAX | 49°C (120°F) |
| CREDENTIAL TYPES | Card and PIN Credentials |
| COMMUNICATION TYPE | IP Network Communication |
| NETWORK PROTOCOL | TCP/IP Protocol |
| SECURITY COMPLIANCE | CE Certified |
| FCC COMPLIANCE | CFR47 Part 15B |
| RFI CERTIFICATION | Compliant |
| LVD CERTIFICATION | Certified |
| RED COMPLIANCE | RED 2014/53/EU |
| ENC CERTIFICATION | Certified |
| SAFETY APPROVAL | CE Safety Approved |
| APPLICATION | Commercial Access Control Systems |
| DOOR MANAGEMENT | Supports Multi-Reader Door Management |
| NETWORK EXPANSION | Expandable System Architecture |
| SERVER INTEGRATION | Compatible with Centralized Management |
| INPUT MONITORING | Supervised Input Monitoring |
| OUTPUT CONTROL | Relay-Based Output Control |
| PROTECTIVE DESIGN | Protective Cover Included |
| RAIL COMPATIBILITY | DIN Rail Compatible |
| SYSTEM TYPE | Expandable Access Controller |
| DEPLOYMENT TYPE | Networked Security Deployment |
Rosslare AC-225IP-DIN Expandable Networked Access Control Panel is designed to deliver reliable and scalable access management for commercial and industrial security installations. Supporting up to 2 readers out of the box and expandable up to 4 readers, this networked controller provides secure access control through TCP/IP communication, making it ideal for office buildings, commercial facilities, industrial sites, and enterprise environments.
Scalable Networked Access Control Performance
Built for flexibility and security, the AC-225IP-DIN supports 30,000 active user credentials in offline mode and maintains an event history of up to 20,000 records. Featuring multi-user authentication capabilities and compatibility with multiple Wiegand and PIN formats, it provides secure and efficient entry management while integrating seamlessly with network infrastructure.
- Supports 2 reader ports, expandable up to 4 readers
- 30,000 active credentials capacity (Card & PIN)
- 20,000 event log storage capacity
- TCP/IP communication with onboard RJ-45 Ethernet connection
- Multi-user authentication for enhanced security
- Compatible with multiple Wiegand and PIN formats
Designed for Flexible Integration
Engineered with a DIN rail housing and wall-mount compatibility, the controller simplifies installation while supporting future expansion through optional expansion modules. Integrated with Rosslare AxTraxNG™ Server, it provides centralized management for access control environments requiring reliability, scalability, and streamlined administration.
- Commercial office buildings
- Industrial facilities and warehouses
- Enterprise access control deployments
- Security management systems requiring centralized administration
Security professionals and installers seeking a network-ready expandable access control solution can rely on the Rosslare AC-225IP-DIN for dependable operation, scalable growth, and seamless integration into modern access control systems.
Technical Specifications
- Model: AC-225IP-DIN
- Type: Network Control Panel / DIN Housing
- Reader Support: 2 Reader Ports (Expandable to 4 Readers)
- Power Output: 12VDC
- Maximum Current: 245 mA
- Inputs: 4 Supervised High Impedance Inputs (Expandable to 8 or 12)
- Maximum Input Voltage: 5VDC
- Outputs: 4 Form C 5 Amp Relay Outputs (Expandable to 8)
- Communication Interface: TCP/IP
- Network Port: Onboard RJ-45 Connector
- Ethernet: 10/100 Ethernet Port
- User Capacity: 30,000 Credentials
- Event Storage: 20,000 Events
- Housing: DIN Rail / Wall Mount Protective Cover
- Expansion Support: 1 Expansion Slot for MD Expansion Boards
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Dimensions: 7.6 x 5.4 x 1.5 Inches
- Weight: 0.36 kg (12.7 oz)
- Compliance: CE, FCC CFR47 Part 15B, RED 2014/53/EU
