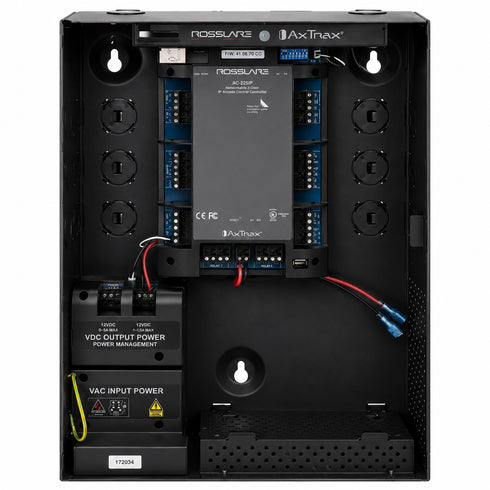

AC-215IP-BU ROSSLARE Two Door IP Access Control Panel
The AC 215IP BU intelligent two reader network access controller delivers reliable access management for commercial and institutional applications. Designed for flexible installations, this controller supports full online and offline operation with advanced automation features, credential storage, event logging, and compatibility with multiple reader and locking hardware formats. Its compact DIN rail housing allows easy integration into professional security systems and scalable access control deployments.
- Supports two readers with TCP IP network connectivity
- Stores 30000 credentials and 30000 PIN codes
- Offline event logging with 20000 FIFO records
- Compatible with multiple Wiegand reader formats
- Supports fail safe and fail secure locking devices
Supports two readers in a compact IP-based access control panel designed for commercial and institutional security applications.
Powered by Rosslare’s AxTraxNG server software, delivering advanced access management and automation capabilities over TCP/IP networks.
Features a built-in 10/100 Ethernet port for reliable network communication and seamless system integration.
Supports up to 30,000 credentials and 30,000 PIN codes, making it ideal for growing access control environments.
Provides 4 programmable outputs and 4 supervised inputs for flexible door control and peripheral device integration.
Operates in both full online and offline modes to maintain uninterrupted access control during network disruptions.
Stores up to 20,000 offline event records in non-volatile FIFO memory for dependable activity tracking and auditing.
Includes a real-time clock with super-cap backup that maintains accurate timekeeping for up to two weeks during total power loss.
Compatible with Rosslare and third-party Wiegand readers, offering broad support for multiple reader and keypad formats.
Supports a wide variety of locking devices including maglocks, electric strikes, deadbolts, and fail-safe or fail-secure locking hardware.
Offers advanced access management with support for 128 access groups, 128 access areas, 128 time zones, and 64 holiday schedules.
Designed with a compact DIN-rail housing for easy installation inside ME-1015 enclosures or custom security cabinets.
Provides scalable and modular expansion capabilities, making it suitable for small to mid-sized professional access control systems.
Ideal for office buildings, schools, healthcare facilities, warehouses, and other commercial security installations requiring intelligent IP access control.
| MODEL NAME | ROSSLARE AC-215IP-BU Intelligent 2-Reader Networked Access Controller |
| ITEM NUMBER | ROS-AC-215IP-BU |
| ALTERNATE PART NUMBER | ROSAC215IPBU |
| SUPPLIER PART NUMBER | AC-215IP-BU |
| PRODUCT TYPE | Two Door IP Access Control Panel |
| ACCESS CONTROL TYPE | Networked Intelligent Controller |
| NUMBER OF READERS | Supports 2 readers |
| COMMUNICATION TYPE | TCP/IP Ethernet |
| ETHERNET PORT | 10/100 Mbps Ethernet |
| SOFTWARE PLATFORM | Powered by AxTraxNG™ Server |
| OPERATING SYSTEM SUPPORT | Microsoft Windows |
| ONLINE OPERATION | Full online functionality supported |
| OFFLINE OPERATION | Full offline functionality supported |
| MAXIMUM CREDENTIALS | 30,000 active credentials |
| PIN CODE CAPACITY | 30,000 PIN codes |
| ACCESS GROUPS | 128 access groups |
| ACCESS AREAS | 128 access areas |
| TIME ZONES | 128 configurable time zones |
| HOLIDAY SETTINGS | 64 holiday schedules |
| SMART LINKS | 32 NG Smart Links for automation |
| EVENT LOG CAPACITY | 20,000 non-volatile FIFO event records |
| EVENT STORAGE TYPE | Non-volatile memory |
| REAL TIME CLOCK | Integrated RTC with super-cap backup |
| CLOCK BACKUP DURATION | Up to 2 weeks without power |
| BATTERY REQUIREMENT | No batteries required |
| INPUTS | 4 programmable inputs |
| OUTPUTS | 4 programmable outputs |
| HOUSING TYPE | Compact DIN rail housing |
| ENCLOSURE COMPATIBILITY | Compatible with ME-1015 power management enclosure |
| MOUNTING OPTIONS | DIN rail or custom enclosure mounting |
| READER COMPATIBILITY | Supports Rosslare and third-party readers |
| READER FORMAT SUPPORT | Wide range of Wiegand formats |
| KEYPAD SUPPORT | Supports PIN keypad formats |
| LOCK HARDWARE SUPPORT | Supports maglocks, electric strikes, deadbolts, and handle locks |
| FAIL SAFE SUPPORT | Supported |
| FAIL SECURE SUPPORT | Supported |
| LOCK CONTROL LOGIC | Built-in configurable lock logic |
| APPLICATION TYPE | Commercial and institutional access control |
| SYSTEM EXPANDABILITY | Modular and expandable architecture |
| NETWORK TYPE | IP-based access control network |
| CONTROLLER TYPE | Entry-level intelligent IP controller |
| AUTOMATION SUPPORT | Integrated automation capability |
| DOOR CONTROL CAPACITY | Supports 2 doors |
| CREDENTIAL MANAGEMENT | Centralized credential management |
| SECURITY MANAGEMENT | Advanced access control management |
| COMMUNICATION INTERFACE | Ethernet LAN connection |
| SYSTEM INTEGRATION | Integrates with Rosslare AxTraxNG systems |
| EVENT BUFFER TYPE | FIFO event handling |
| ACCESS AUTHENTICATION | Credential and PIN authentication |
| TIME MANAGEMENT | Supports scheduled access events |
| AUTOMATION FEATURES | Supports programmable automation links |
| NETWORK PROTOCOL | TCP/IP |
| DATA STORAGE | Internal non-volatile storage memory |
| POWER LOSS PROTECTION | Clock retention during total power loss |
| INDUSTRY APPLICATION | Commercial security systems |
| INSTITUTIONAL APPLICATION | Educational and institutional facilities |
| ACCESS METHOD | Card reader and keypad entry |
| INSTALLATION ENVIRONMENT | Indoor installation |
| PRODUCT SERIES | B Series |
| MANUFACTURER | Rosslare Security |
| PRIMARY FUNCTION | Network access control management |
| SYSTEM MONITORING | Real-time access monitoring |
| DOOR MONITORING | Supports monitored access points |
| ACCESS LEVEL MANAGEMENT | Supports grouped access permissions |
| SCHEDULE MANAGEMENT | Supports time-based scheduling |
| USER MANAGEMENT | Supports large-scale user databases |
| NETWORK MANAGEMENT | Remote IP network connectivity |
| HARDWARE COMPATIBILITY | Compatible with multiple locking devices |
| CONTROLLER ARCHITECTURE | Intelligent distributed controller |
| SYSTEM TYPE | Electronic access control system |
| PROGRAMMABLE FUNCTIONS | Automation and access logic programming |
| EVENT TRACKING | Tracks access and system events |
| DOOR SECURITY SUPPORT | Supports fail-safe and fail-secure locks |
| READER INTERFACE | Dual reader interface support |
| INSTALLATION FLEXIBILITY | Supports enclosure-based installation |
| ACCESS CONTROL SOFTWARE | AxTraxNG™ management platform |
| SECURITY EVENT STORAGE | Offline event storage capability |
| PRODUCT CATEGORY | Access Control Hardware |
AC-215IP-BU Intelligent 2-Reader Networked Access Controller from Rosslare Security delivers advanced access control and automation capabilities for commercial and institutional applications. Powered by Rosslare AxTraxNG™ Server for Microsoft Windows, this intelligent IP controller supports up to 30,000 credentials and 30,000 PIN codes while offering reliable online and offline operation through a built-in 10/100 Ethernet connection. Designed for scalable installations, the compact DIN-rail housing allows easy integration into ME-1015 power management enclosures or custom cabinet solutions.
Advanced Access Control with Flexible Integration
The AC-215IP-BU supports 2 readers, 4 outputs, and 4 supervised inputs, making it ideal for small to mid-sized access control deployments. It works with a wide range of Rosslare and third-party readers using multiple Wiegand and keypad formats. Built-in logic supports various locking devices including electric strikes, deadbolts, maglocks, and fail-safe/fail-secure locking systems.
- Supports 30,000 active credentials and 30,000 PIN codes
- 2-reader controller with 4 inputs and 4 outputs
- 10/100 Ethernet TCP/IP communication
- Compatible with Rosslare and third-party Wiegand readers
- Supports fail-safe and fail-secure locking hardware
Reliable Operation with Offline Event Storage
Engineered for dependable security management, the controller maintains full functionality during communication interruptions with 20,000 non-volatile FIFO event log records. A built-in real-time clock with super-capacitor backup preserves time and scheduling for up to two weeks during total power loss without requiring battery replacements.
- 20,000 offline event log storage capacity
- Real-time clock backup retains time up to 2 weeks
- No backup batteries required
- Supports 128 access groups, 128 areas, and 128 time zones
- 64 holidays and 32 smart automation links supported
Ideal for Commercial and Institutional Installations
The AC-215IP-BU is designed for flexible deployment in office buildings, schools, healthcare facilities, warehouses, and multi-tenant properties. Its modular architecture allows installers to expand systems efficiently while maintaining centralized management through AxTraxNG™ software.
- Commercial office access control systems
- Educational and institutional facilities
- Industrial and warehouse security applications
- Multi-door building management systems
Security integrators seeking a compact and scalable IP access controller can rely on the Rosslare AC-215IP-BU for dependable performance, advanced credential management, and seamless integration with modern access control infrastructure. Available through trusted USA access control and security distributors.
Technical Specifications
- Model: AC-215IP-BU
- Type: Intelligent 2-Reader Networked Access Controller
- Communication: TCP/IP 10/100 Ethernet
- Readers Supported: 2
- Inputs: 4 supervised inputs
- Outputs: 4 programmable outputs
- Credential Capacity: 30,000 users + 30,000 PIN codes
- Event Buffer: 20,000 non-volatile FIFO events
- Access Groups: 128
- Access Areas: 128
- Time Zones: 128
- Holiday Schedules: 64
- Automation Links: 32 NG Smart Links
- Reader Compatibility: Rosslare and third-party Wiegand readers
- Mounting: DIN rail enclosure compatible
