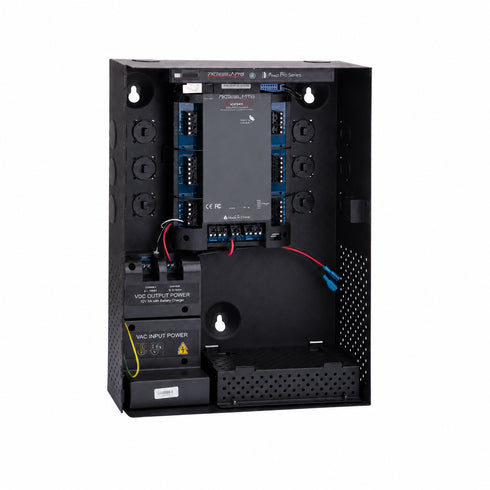

AC-225-BU Expandable Two Reader Networked Access Control Panel Controller

AC-225-BU Expandable 2-Reader Networked Access Control Panel from Rosslare is a powerful and scalable access control solution designed for commercial and enterprise security environments. Engineered for reliable online and offline performance, this advanced networked controller supports up to 30,000 active credentials and PIN codes, making it ideal for office buildings, industrial facilities, educational campuses, and multi-site access control deployments.

Advanced Access Control Performance and Expansion

The AC-225-BU delivers flexible access management with support for 128 access groups, 128 access areas, 128 time zones, 64 holidays, and 32 Smart Links automation functions. Its expandable architecture allows installers to increase system capacity using compatible expansion modules, providing long-term scalability as security requirements evolve.

• Supports 30,000 active credentials and 30,000 PIN codes
• Handles 128 access groups and 128 access areas
• Supports 128 time zones and 64 holiday schedules
• 32 Smart Links automation capabilities
• Full online and offline operational functionality

Reliable Operation with Intelligent Event Management

Designed for uninterrupted security performance, the controller stores up to 20,000 nonvolatile FIFO event records while offline, ensuring event tracking remains intact during network interruptions. A built-in real-time clock with super-cap backup maintains accurate system time for up to 24 hours during total power loss without requiring battery replacements.

• 20,000 offline event log storage capacity
• Nonvolatile FIFO event recording
• Real-time clock backup holds operation up to 24 hours
• No battery replacement required
• Maintains operational reliability during outages

Flexible Integration for Commercial Security Systems

The AC-225-BU Networked Access Control Panel supports a wide range of Wiegand reader formats, keypad configurations, and locking hardware, simplifying integration with existing access control infrastructure. Compatible with electric strikes, deadbolts, magnetic locks, sliding doors, and additional reader expansion modules, it offers installers exceptional deployment flexibility.

• Supports Wiegand reader and keypad formats
• Compatible with electric strikes and maglocks
• Supports deadbolts and sliding door systems
• Expandable using MD-IO84B I/O expansion module
• Expandable using MDD02B 2-reader expansion module

Security integrators and access control professionals can rely on the Rosslare AC-225-BU for scalable performance, intelligent automation, and dependable security management across demanding commercial environments.

Technical Specifications

• Model: AC-225-BU
• Type: Expandable 2-Reader Networked Access Control Panel
• Credential Capacity: 30,000 active credentials
• PIN Code Capacity: 30,000 PIN codes
• Access Groups: 128
• Access Areas: 128
• Time Zones: 128
• Holiday Schedules: 64
• Automation Links: 32 Smart Links
• Offline Event Storage: 20,000 FIFO nonvolatile records
• Expansion Options: MD-IO84B and MDD02B modules
• RTC Backup: Super-cap maintains clock up to 24 hours
• Reader Support: Wiegand reader formats
• Lock Compatibility: Deadbolts, electric strikes, maglocks, and sliding doors
