AC-215IP-DIN (PCBA) Scalable TCP IP Access Control Panel PCBA 2 Reader 30000 Users
Advanced networked access control board designed for scalable commercial and industrial security applications. Supports up to two readers with flexible door configurations and reliable TCP IP communication. Capable of managing 30000 user credentials and storing 20000 event records for efficient monitoring and control. Compatible with centralized management software for secure online and offline operation. Ideal for expanding multi door access systems in professional high security environments.
- Supports up to 1023 networked panels and 2046 doors
- Handles 30000 users with detailed access rights management
- Stores up to 20000 event history records
- Flexible one door and two door configurations supported
- Integrated TCP IP communication with onboard Ethernet port
Supports scalable networked access control for up to 1023 panels and 2046 doors, making it ideal for expanding commercial and enterprise security systems.
Designed as a Printed Circuit Board Assembly (PCBA) only configuration for flexible integration into custom access control enclosures and installations.
Supports two reader ports with multiple door configurations including In/Out, In/In, and Out/Out setups for versatile deployment options.
Manages up to 30,000 users with individualized access rights, providing robust credential administration for large facilities.
Stores up to 20,000 event logs, enabling detailed activity tracking and audit reporting for enhanced security management.
Features onboard TCP/IP communication with an integrated RJ-45 Ethernet connection for reliable network connectivity and remote management.
Compatible with Rosslare’s AxTraxNG™ Server software, delivering advanced access control automation and centralized monitoring capabilities.
Provides both online and offline operation to maintain secure access functionality even during temporary network interruptions.
Includes four supervised high-impedance inputs and four fully programmable relay outputs for expanded integration with alarms, sensors, and locking devices.
Supports multiple communication speed options up to 115200 bps, ensuring compatibility with various network and system configurations.
Operates on 12VDC power with low standby current consumption, helping improve energy efficiency in continuous operation environments.
Built to meet CE and FCC compliance standards for safety, electromagnetic compatibility, and reliable professional-grade performance.
Ideal for office buildings, industrial facilities, educational campuses, multi-site businesses, and other advanced access control applications.
Backed by a 2-year limited warranty for dependable long-term security system operation and peace of mind.
| MODEL NAME | Rosslare AC215IP Scalable Networked Access Control PCBA |
| PRODUCT TYPE | Networked Access Control Panel |
| PART TYPE | Printed Circuit Board Assembly (PCBA) |
| MANUFACTURER | Rosslare Security Products |
| MODEL NUMBER | AC215IP |
| SKU | ROS-AC-215IP-PCBA |
| NSID | 25217 |
| SYSTEM TYPE | Scalable Networked Access Control |
| INSTALLATION TYPE | PCB Assembly Only |
| DOOR SUPPORT | Supports 1 or 2 Doors |
| READER SUPPORT | 2 Reader Ports |
| READER CONFIGURATION | In/Out, In/In, or Out/Out |
| NETWORK CAPACITY | Up to 1023 Panels |
| DOOR CAPACITY | Up to 2046 Doors |
| USER CAPACITY | 30,000 Active Users |
| CREDENTIAL TYPES | Card and PIN |
| EVENT HISTORY | 20,000 Events |
| COMMUNICATION TYPE | TCP/IP |
| ETHERNET PORT | 10/100 Ethernet |
| RJ-45 CONNECTOR | Onboard RJ-45 Port |
| NETWORKING SOFTWARE | Rosslare AxTraxNG™ Server |
| OPERATING MODE | Online and Offline Operation |
| OUTPUT VOLTAGE | 12 VDC |
| OPERATING VOLTAGE | 12 VDC 1.5A |
| POWER SUPPLY | PS-14 Compatible |
| MAX CURRENT | 300 mA |
| STANDBY CURRENT | 120 mA |
| MAX INPUT CURRENT | 370 mA |
| INPUT TYPE | 4 Supervised High-Impedance Inputs |
| INPUT VOLTAGE | 5 VDC Maximum |
| OUTPUT TYPE | 4 Fully Programmable Relay Outputs |
| RELAY CONFIGURATION | N.O. and N.C. |
| RELAY RATING | 5A @ 30 VDC |
| LED CONTROL | D0/D1 LED Control Output |
| TAMPER INPUT | Supported |
| SERIAL COMMUNICATION SPEEDS | 9600, 19200, 57600, 115200 bps |
| SERIAL PORTS | Ethernet Communication Port |
| SYSTEM EXPANSION | Supports Multiple Remote Premises |
| ACCESS CONTROL TYPE | Professional Security Access System |
| SERVER COMPATIBILITY | Microsoft Windows |
| AUTOMATION SUPPORT | Integrated Automation Capability |
| PANEL CONFIGURATION | Scalable Architecture |
| NETWORK TOPOLOGY | Distributed Access Control |
| HOUSING TYPE | PCB Only, No Enclosure Included |
| MOUNTING STYLE | Panel Mount PCB |
| APPLICATION | Commercial Access Control Systems |
| USAGE ENVIRONMENT | Indoor Security Installations |
| SYSTEM SECURITY | High Secure Professional Performance |
| COMMUNICATION METHOD | Ethernet Network Communication |
| PANEL MANAGEMENT | Centralized Network Management |
| SOFTWARE PLATFORM | AxTraxNG™ Management Software |
| ACCESS RIGHTS MANAGEMENT | Per User Access Rights Configuration |
| EVENT MONITORING | Real-Time Event Logging |
| NETWORK PROTOCOL | TCP/IP Ethernet |
| READER INTERFACE | D0/D1 Reader Interface |
| CONTROL OUTPUTS | Programmable Relay Outputs |
| EXPANSION CAPABILITY | Enterprise Scalable System |
| EVENT STORAGE | Internal Event Memory |
| NETWORK INTERFACE | Integrated Ethernet Controller |
| PROTOCOL SUPPORT | IP-Based Networking |
| INSTALLATION BENEFIT | Easy Professional Installation |
| CONTROL PANEL TYPE | Multi-Door Access Controller |
| SYSTEM INTEGRATION | Supports Security Automation |
| COMMERCIAL GRADE | Professional Grade Access Control |
| DATA COMMUNICATION | Networked Data Exchange |
| NETWORK SPEED | 10/100 Mbps Ethernet |
| REMOTE MANAGEMENT | Supports Remote Monitoring |
| CONTROLLER TYPE | Intelligent Access Controller |
| SYSTEM COMPATIBILITY | Rosslare AC215 Systems |
| PANEL OPERATION | Standalone and Networked Modes |
| DOOR MANAGEMENT | Single and Dual Door Management |
| INPUT MONITORING | Supervised Input Monitoring |
| OUTPUT CONTROL | Programmable Device Control |
| SECURITY FEATURES | Tamper Monitoring Support |
| DATABASE CAPACITY | Large User Database Support |
| EVENT BUFFER | 20K Event Buffer Memory |
| COMMERCIAL APPLICATION | Office, Industrial, and Enterprise Buildings |
| CERTIFICATIONS | CE, FCC |
| CE COMPLIANCE | Safety, EMC, RFI, LVD RED 2014/53/EU |
| FCC COMPLIANCE | CFR47 Part 15B |
| WARRANTY | 2-Year Limited Warranty |
| LEAD TIME | Available to Order |
| SYSTEM BENEFIT | Scalable Multi-Site Access Management |
| PROFESSIONAL USE | Commercial Security Installations |
| ACCESS METHOD | Card and PIN Authentication |
| DEVICE CATEGORY | Access Control Hardware |
| PANEL STATUS | Network Enabled Controller |
Rosslare AC215IP Networked Access Control Panel is a scalable and secure 2-reader access control solution designed for commercial and enterprise security applications. Supporting both online and offline operation, this controller easily scales across multiple facilities while delivering reliable performance for modern access management systems. With integrated TCP/IP communication and compatibility with Rosslare’s AxTraxNG™ Server, the AC215IP offers advanced control, monitoring, and automation capabilities for professional installations.
Advanced Networked Access Control Performance
The AC215IP supports up to 30,000 users and stores up to 20,000 events, making it ideal for medium to large-scale facilities. Designed for flexible door management, the panel supports multiple configurations including 1-door In/Out and 2-door In/Out, In/In, or Out/Out setups. Built with onboard Ethernet connectivity and programmable relay outputs, this controller provides dependable integration with commercial security infrastructure.
- Supports up to 30,000 user credentials
- Stores up to 20,000 event logs
- Integrated TCP/IP communication with onboard RJ-45 port
- Supports 1-door and 2-door configurations
- 4 programmable relay outputs rated 5A @ 30VDC
Flexible Integration and Scalable Deployment
Designed for professional access control installations, the Rosslare AC215IP can network up to 1023 panels and manage up to 2046 doors. The controller supports multiple communication speeds and supervised inputs for enhanced monitoring and system flexibility. Its compact PCBA-only design makes it ideal for custom enclosures and advanced security deployments.
- Network up to 1023 panels and 2046 doors
- Compatible with Rosslare AxTraxNG™ management software
- 4 supervised high-impedance inputs
- Supports multiple baud rate communication speeds
- Compact PCB assembly for flexible installations
The Rosslare AC215IP Access Control Panel is an excellent solution for commercial buildings, office facilities, gated properties, industrial sites, and enterprise security systems requiring scalable and reliable access management.
Technical Specifications
- Model: AC215IP
- Type: Printed Circuit Board Assembly (PCBA)
- Reader Ports: 2 Readers
- Communication Interface: TCP/IP
- Ethernet Port: 10/100 RJ-45
- User Capacity: 30,000 Users
- Event History: 20,000 Events
- Inputs: 4 Supervised High-Impedance Inputs
- Outputs: 4 Programmable Relay Outputs (5A @ 30VDC)
- Operating Voltage: 12VDC
- Current Consumption: Standby 120mA / Max 370mA
- Networking Capacity: 1023 Panels / 2046 Doors
- Supported Configurations: 1-Door and 2-Door Modes
- Certifications: CE, FCC
- Warranty: 2-Year Limited Warranty
Related products
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

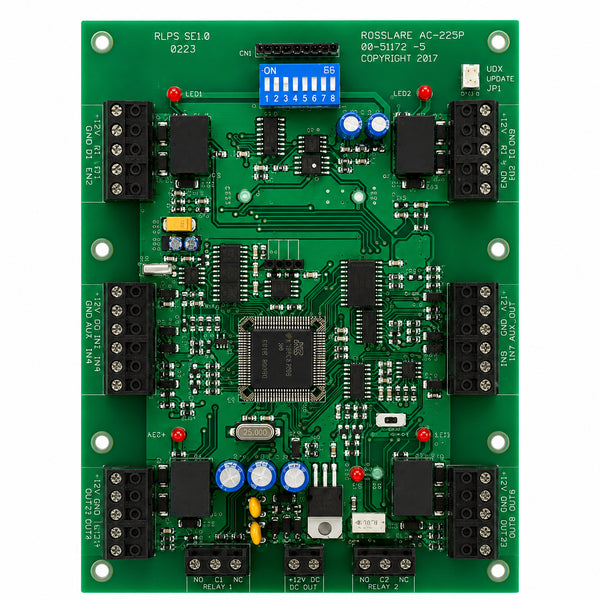

Advanced networked access control solution designed for scalable security management across multiple facilities. Supports two reader connections with flexible door configurations for commercial and industrial environments. Features TCP IP communication, large user capacity, and offline operation capability for reliable access...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare
The AC 215IP BU intelligent two reader network access controller delivers reliable access management for commercial and institutional applications. Designed for flexible installations, this controller supports full online and offline operation with advanced automation features, credential storage, event logging, and...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

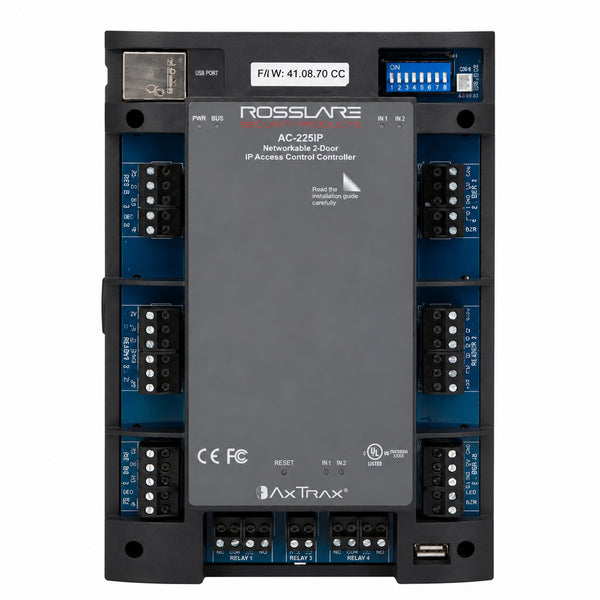

AC225 expandable network access control panel delivers secure and scalable entry management for commercial and industrial environments. Designed for DIN rail or wall mounting, this controller supports up to four readers with expansion modules and manages up to 30000 users...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

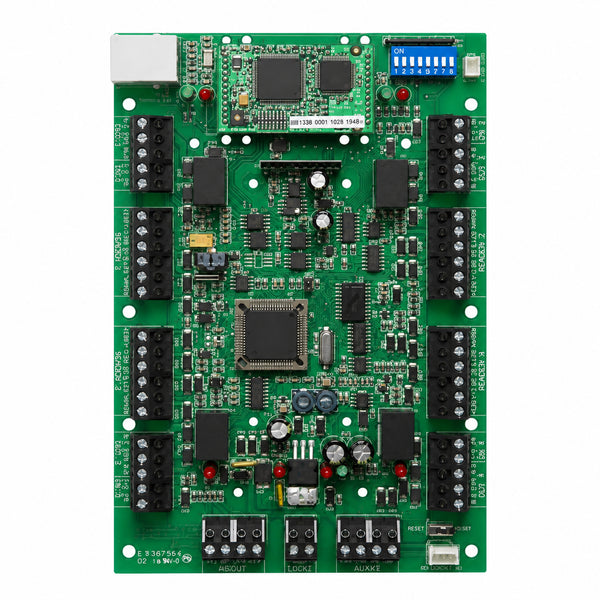

Expandable networked access control PCBA designed for secure multi door management in commercial and industrial environments. Supports up to four reader ports with scalable expansion capabilities for large facilities. Features RS485 communication Ethernet connectivity and support for up to 30000...
