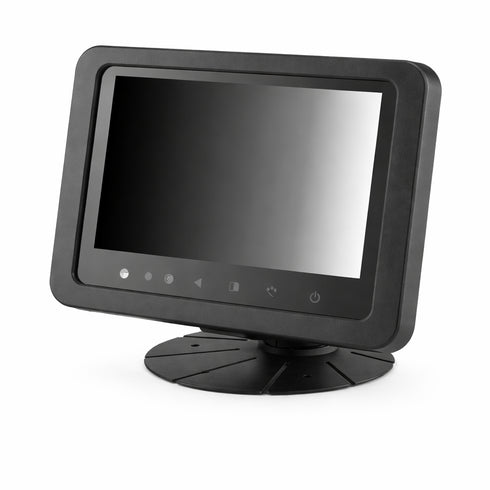

709CNH 7 Inch IP65 Sunlight Readable Capacitive Touchscreen Monitor HDMI VGA DVI AV
This 7 inch industrial touchscreen monitor delivers high brightness visibility for outdoor and harsh environments. With IP65 rated protection, it resists dust and water exposure while maintaining reliable performance. The capacitive multi touch interface ensures smooth and responsive interaction, even through protective layers. Supporting HDMI, VGA, DVI, and AV inputs, it offers flexible connectivity for various systems. Built with durable components and a rugged enclosure, this display is ideal for automation, transportation, kiosks, and field applications requiring dependable operation.
- 1000 nit brightness ensures clear visibility in direct sunlight
- IP65 rated for full dust protection and water resistance
- Capacitive multi touch with responsive and accurate input
- Supports HDMI VGA DVI and AV for versatile connectivity
- Wide voltage range suitable for industrial and vehicle use
Features a rugged IP65 / NEMA4-rated enclosure that provides full protection against dust, water splashes, and harsh industrial environments.
Delivers exceptional 1,000 NIT brightness with a long-life LED backlight, ensuring clear visibility even under direct sunlight conditions.
Incorporates a projected capacitive multi-touch touchscreen for precise, responsive interaction, even through protective glass layers.
Equipped with an automatic ambient light sensor that dynamically adjusts backlight brightness for optimal viewing and power efficiency.
Supports multiple video inputs including HDMI, VGA, DVI (via adapter), and composite AV, enabling flexible connectivity across devices.
Built with a rugged aluminum housing and solid capacitors to enhance durability and ensure long-term reliability in demanding applications.
Offers a wide operating voltage range of 10V to 35V DC, making it suitable for automotive, marine, and industrial power systems.
Includes a built-in waterproof speaker and multiple audio inputs, providing integrated audio capability for diverse use cases.
Features advanced image processing with AISS technology for superior image scaling, clarity, and video performance.
Designed with a compact 7-inch display featuring 1024x600 resolution and a wide viewing angle for clear visuals from multiple perspectives.
Supports plug-and-play compatibility with Windows and Android systems, simplifying setup and integration into existing environments.
Provides versatile mounting options with a 360° copper stand and VESA 50mm mounting support for flexible installation.
Engineered for extreme environments with an operating temperature range from -20°C to 70°C, ensuring stable performance in harsh conditions.
Includes intelligent features such as auto power-on, input memory, mirror/flip image functions, and backup camera auto-switching.
Backed by a 3-year warranty and a 30-day no dead pixel guarantee, ensuring product quality and peace of mind.
| MODEL NAME | 709CNH 7" IP65 Sunlight Readable Capacitive Touchscreen Monitor |
| SCREEN SIZE | 7 inch (Diagonal) |
| ASPECT RATIO | 16:9 |
| RESOLUTION | 1024 x 600 (WXGA) |
| SUPPORTED RESOLUTION | 640 x 480 ~ 1920 x 1080 |
| BRIGHTNESS | 1000 cd/m² (NIT) |
| CONTRAST RATIO | 700:1 |
| VIEWING ANGLE | 150° Horizontal, 145° Vertical |
| RESPONSE TIME | 10/15 ms (Typ.) |
| TOUCHSCREEN TYPE | Projected Capacitive Multi-Touch |
| TOUCH INTERFACE | USB |
| IP RATING | IP65 / NEMA4 (Water & Dust Resistant) |
| SUNLIGHT READABLE | Yes |
| BACKLIGHT | LED Long Life |
| AUTO BRIGHTNESS | Ambient Light Sensor |
| ANTI-GLARE | Anti-Reflective Coating |
| ANTI-FINGERPRINT | Yes |
| VIDEO INPUT HDMI | 1 x HDMI (HDCP) |
| VIDEO INPUT VGA | 1 x VGA (15-pin D-SUB) |
| VIDEO INPUT DVI | Via HDMI Adapter |
| VIDEO INPUT AV | 2 x Composite |
| AUDIO INPUT | 3 Channels |
| SPEAKER | Built-in Waterproof Speaker |
| IMAGE PROCESSOR | High Performance Signal Processor |
| IMAGE SCALING | AISS Technology |
| POWER INPUT RANGE | DC 10V ~ 35V |
| POWER SUPPLY | DC 12V |
| POWER CONSUMPTION | ≤ 10W |
| OPERATING TEMPERATURE | -20°C ~ 70°C |
| STORAGE TEMPERATURE | -30°C ~ 80°C |
| MTBF | > 55,000 Hours |
| DIMENSIONS | 205.2 x 139.5 x 28.7 mm |
| WEIGHT | 2.64 lb |
| MOUNTING | VESA 50mm |
| STAND | 360° Copper Monitor Stand |
| ENCLOSURE | Rugged Aluminum Casing |
| CONNECTOR TYPE | 26-Pin Heavy Duty Locking |
| AUTO POWER ON | Signal Detection |
| INPUT MEMORY | Last Input & Power Settings |
| REMOTE CONTROL | IR Remote Included |
| DISPLAY MODES | Mirror & Vertical Flip |
| BUTTON LOCK | Disable Front Buttons & OSD |
| BACKUP CAMERA SUPPORT | AV2 Auto Switching |
| TOUCH SUPPORT OS | Windows 7+, Android |
| MULTI-MONITOR SUPPORT | Yes |
| CERTIFICATIONS | FCC, CE, E13 |
| AUTOMOTIVE CERTIFICATION | E-Mark Certified |
| COMPLIANCE | ROHS, REACH, ECE R118-03 |
| WARRANTY | 3 Years |
| PIXEL POLICY | 30-Day No Dead Pixel Guarantee |
| APPLICATION | Industrial, Automotive, Outdoor, Marine |
| USE CASE | POS, Kiosks, Automation, Monitoring |
| DURABILITY | Industrial Grade Components |
| ENVIRONMENT RESISTANCE | Dustproof & Water Resistant |
| TOUCH TECHNOLOGY | Capacitive (Human Skin Detection) |
| PROTECTIVE GLASS SUPPORT | Yes |
| SIGNAL COMPATIBILITY | Analog & Digital |
| CABLE OPTIONS | Multiple Lengths Available |
| POWER OPTIONS | AC Adapter / Car Adapter |
| INSTALLATION TYPE | Panel / Stand Mount |
| INDUSTRY USE | Transportation, Military, Broadcast |
| DISPLAY TYPE | LCD |
| DOT RESOLUTION | 1,843,200 dots |
| SIGNAL PROCESSING | Advanced Image Scaling |
| SYSTEM INTEGRATION | Compatible with Automation Systems |
| STRUCTURE | Compact Rugged Design |
| RELIABILITY | Continuous Operation Rated |
| FILE REFERENCE | Specification Source |
709CNH 7" IP65 Sunlight Readable Capacitive Touchscreen Monitor from Alfa Iris is a rugged, high-performance display engineered for outdoor and industrial environments. Featuring a 1000 NIT ultra-bright panel and IP65-rated water and dust resistance, this compact monitor delivers reliable visibility even under direct sunlight. Its projected capacitive touchscreen ensures precise and responsive interaction, making it ideal for demanding applications such as transportation, automation, kiosks, and field operations.
Engineered for Extreme Environments
The 709CNH is built with a durable aluminum housing and industrial-grade components to withstand harsh conditions. Its IP65-certified enclosure protects against dust ingress and water exposure, while the wide operating temperature and voltage range ensure stable performance in challenging environments. The integrated ambient light sensor automatically adjusts brightness for optimal viewing, enhancing usability in both bright and low-light conditions.
- IP65 / NEMA4 rated for full water and dust protection
- 1000 NIT sunlight readable display
- Automatic brightness adjustment via ambient light sensor
- Rugged aluminum casing for industrial durability
- Wide operating temperature: -20°C to 70°C
Advanced Touchscreen and Connectivity
Equipped with a projected capacitive multi-touch interface, the 709CNH provides smooth and accurate touch performance, even through protective glass. It supports multiple input options including HDMI, VGA, DVI (via adapter), and composite video, ensuring seamless integration with various systems. The monitor also features built-in waterproof speakers and multiple audio inputs for enhanced multimedia functionality.
- Capacitive multi-touch (USB interface)
- HDMI, VGA, DVI (via adapter), and AV inputs
- Built-in waterproof speaker with audio inputs
- Plug-and-play compatibility with Windows and Android
- Multi-monitor touchscreen support
Versatile Applications and Integration
Designed for system integrators, engineers, and OEM applications, the 709CNH excels in industries requiring reliable, compact displays. Its robust feature set supports use in transportation systems, factory automation, outdoor kiosks, and data monitoring environments. Additional features such as auto power-on, image flip, and backup camera auto-switching enhance operational flexibility.
- Transportation: fleet management, marine, heavy vehicles
- Industrial automation and machinery control
- Outdoor kiosks and digital signage
- IoT, logistics, and data monitoring systems
- Broadcast and mobile production environments
The 709CNH 7" Rugged Touchscreen Monitor from Alfa Iris delivers exceptional durability, visibility, and integration capabilities, making it a dependable solution for professionals requiring high-performance displays in demanding conditions.
Technical Specifications
- Model: 709CNH
- Screen Size: 7" (16:9)
- Resolution: 1024 x 600 (supports up to 1920 x 1080)
- Brightness: 1000 cd/m²
- Contrast Ratio: 700:1
- Viewing Angle: 150° (H) / 145° (V)
- Touch Interface: USB (Capacitive Multi-Touch)
- Inputs: HDMI, VGA, DVI (via adapter), AV x2
- Audio: 3 inputs with built-in waterproof speaker
- Power Input: DC 10V – 35V (12V typical)
- Power Consumption: ≤ 10W
- Operating Temperature: -4°F to 158°F (-20°C to 70°C)
- Mounting: VESA 50mm, 360° stand
- Housing: Rugged aluminum, IP65 rated
- Certifications: FCC, CE, E13, RoHS, REACH
- MTBF: > 55,000 hours
