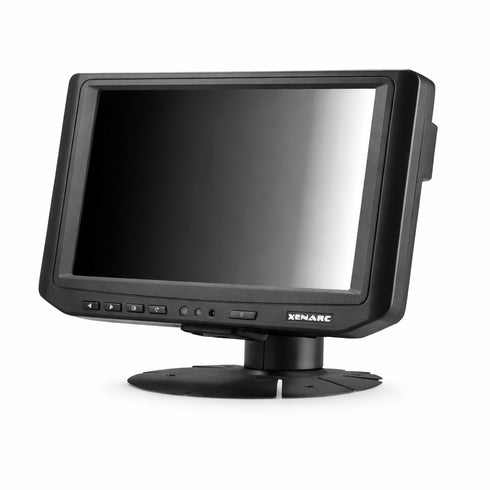

7-Inch 700TSH Touchscreen LCD Monitor HDMI VGA DVI AV Industrial Display

Model 700TSH 7" Touchscreen LCD Monitor from Alfa Iris is a rugged, high-performance display solution engineered for industrial, commercial, and mobile applications. Featuring a 5-wire resistive touchscreen and versatile video inputs including HDMI, DVI, VGA, and AV, this compact 7-inch monitor delivers reliable operation in demanding environments. With a bright 600 NIT LED backlight and ambient light sensor, it ensures optimal visibility in varying lighting conditions.

Engineered for Durability and Harsh Environments

The 700TSH is built with solid capacitors and advanced components for enhanced stability and longevity, even in extreme temperatures. Its rugged design makes it ideal for industrial automation, transportation systems, and outdoor installations. The integrated ambient light sensor automatically adjusts brightness, while the anti-glare coating improves visibility in bright environments.

• High brightness 600 NIT LED backlight
• Ambient light sensor for automatic brightness adjustment
• Durable solid capacitors for extended lifespan
• Wide operating temperature range: -20°C to 70°C
• Anti-glare screen for improved outdoor readability

Versatile Touchscreen and Connectivity

Equipped with a USB-powered 5-wire resistive touchscreen, the 700TSH allows precise input control, functioning as a mouse or on-screen keyboard interface. It supports multi-monitor touchscreen setups, enabling multiple units to operate simultaneously. With multiple input options including HDMI, VGA, DVI (via adapter), and composite video, it integrates seamlessly into various systems.

• 5-wire resistive touchscreen via USB
• Supports multi-monitor touchscreen functionality
• HDMI, VGA, DVI (adapter included), and AV inputs
• Built-in speaker with multiple audio inputs
• Auto power-on and signal detection

Flexible Integration Across Industries

This 7" touchscreen monitor is ideal for a wide range of applications including transportation systems, industrial automation, point-of-sale kiosks, and IoT data monitoring. Its compact size, VESA mounting support, and rugged construction make it a reliable solution for system integrators and OEM deployments.

• In-vehicle computing and fleet management
• Factory automation and machinery control
• Self-service kiosks and digital signage
• Medical, logistics, and industrial IoT monitoring

Technical Specifications

• Model: 700TSH
• Screen Size: 7" (16:9)
• Resolution: 1024 x 600 (WVGA)
• Brightness: 600 cd/m²
• Contrast Ratio: 700:1
• Viewing Angle: 150° (H) / 145° (V)
• Touchscreen: 5-wire resistive (USB interface)
• Video Inputs: HDMI, VGA, DVI (via adapter), Composite
• Supported Resolution: Up to 1920 x 1080
• Operating Voltage: 10V – 35V DC
• Power Consumption: < 10W
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Mounting: VESA 50mm, 360° adjustable stand
• Certifications: FCC, CE, E13, RoHS, REACH
• MTBF: > 55,000 hours

The 700TSH 7" Touchscreen Monitor from Alfa Iris delivers a powerful combination of durability, flexibility, and high-quality display performance. It is an excellent choice for professionals seeking a compact, rugged touchscreen solution for demanding environments and advanced system integration.
