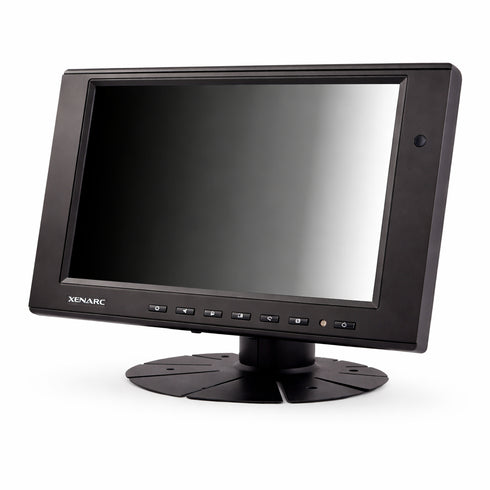

705TSV 7 Inch Touchscreen Monitor with VGA and AV Inputs

705TSV 7" Small Touchscreen Monitor from Alfa Iris delivers a compact, rugged, and energy-efficient display solution designed for demanding professional environments. Featuring a 4-wire resistive touchscreen and 500 NIT high-brightness LED backlight, this monitor ensures clear visibility and responsive input for applications such as transportation, industrial automation, POS systems, and data monitoring. :contentReference[oaicite:0]{index=0}

Compact, Durable, and High-Performance Design

The 705TSV is engineered with durability and versatility in mind. Its anti-glare coating and solid capacitor construction enhance reliability in harsh environments, while the advanced image-scaling (AISS) technology ensures optimal display performance. With support for multi-monitor touchscreen setups, this unit is ideal for integrated systems requiring multiple displays.

• 7" display with 800x480 WVGA resolution (16:9 aspect ratio)
• 500 NIT LED backlight with adjustable brightness
• 4-wire resistive touchscreen via USB interface
• Anti-glare coating for improved visibility
• Durable design with solid capacitors

Versatile Connectivity and Integration

Designed for seamless integration, the 705TSV includes VGA and dual composite video inputs, making it compatible with a wide range of systems. It also features audio inputs with built-in speakers, auto power-on, and AV auto-switching for backup cameras, making it particularly suitable for vehicle and surveillance applications.

• VGA (15-pin D-SUB) and 2x composite video inputs
• 3x audio inputs with integrated speaker
• Auto power-on and last input memory
• Mirror and vertical image flip functions
• IR remote control included

Built for Demanding Applications

With support for 9V–30V DC input and certifications for automotive and industrial use, this monitor is ideal for a wide range of professional applications including fleet management, factory automation, kiosks, broadcasting, and IoT monitoring. Its rugged build and flexible mounting options ensure reliable performance in both mobile and fixed installations.

• Transportation: fleet, marine, and in-vehicle computing
• Industrial automation and machinery control
• Point-of-sale and self-service kiosks
• Broadcast, production, and field operations

Professionals seeking a reliable and compact touchscreen display will benefit from the 705TSV from Alfa Iris, offering durability, flexibility, and high performance for mission-critical environments.

Technical Specifications

• Model: 705TSV
• Screen Size: 7" (16:9)
• Resolution: 800 x 480 (WVGA)
• Brightness: 500 cd/m²
• Contrast Ratio: 400:1
• Viewing Angle: 140° (H) / 120° (V)
• Touch Interface: USB (4-wire resistive)
• Inputs: VGA x1, Composite Video x2
• Audio: 3 inputs with built-in speaker
• Power Input: DC 9V–30V (12V typical)
• Power Consumption: <5W
• Operating Temperature: -20°C to 70°C
• Dimensions: 193.97W x 123.97H x 30.5D mm
• Weight: 1.12 lbs
• Certifications: FCC, CE, E13, ROHS, REACH, ECE R118-03
• MTBF: >55,000 hours
• Warranty: 3 Years
