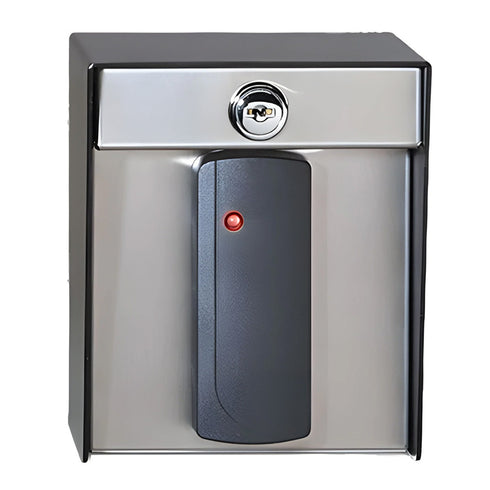

1815-330 Proximity Reader – Surface Mount Enclosure Access Reader
1815-330 Proximity Reader is a rugged and weather-resistant surface mount unit designed for secure outdoor access control. Built with sealed epoxy construction, it offers reliable performance in demanding environments such as gates, walls, and posts. The reader provides a read range of up to three inches and integrates seamlessly with 26-bit Wiegand controllers for flexible system compatibility. With LED and audible indicators, it ensures clear feedback during use. This maintenance-free reader is ideal for modern access control installations requiring durable, long-lasting, and easy-to-install technology for efficient entry management.
- Weather-resistant epoxy construction for outdoor environments
- Compatible with 26-bit Wiegand controllers
- Up to 3-inch read range for secure access
- LED and audible indicators for clear operation
- Maintenance-free, long-lasting surface mount design
Pre-mounted proximity reader in a rugged surface enclosure for quick and secure installation.
Weather-resistant, sealed epoxy design ensures reliable outdoor performance in harsh conditions.
Provides a read range of up to 3 inches (7.6 cm) for efficient access verification.
Ideal for access control on walls, posts, or gates in both residential and commercial environments.
Fully compatible with all 26-bit Wiegand controllers, including Active Pro Aero 1830 Series.
Supports DKProx passive credentials including cards, fobs, and keytags for flexible user access.
Equipped with red/green LED indicators and an audible beeper for clear status feedback.
Maintenance-free design with no moving parts or batteries reduces service requirements.
Operates on 12VDC ±10% with 200mA current draw for consistent performance.
Outdoor-rated construction makes it ideal for perimeter and gate access control systems.
| MODEL NAME | 1815-330 Proximity Reader |
| PRODUCT TYPE | Proximity Reader |
| VENDOR | Active Pro Aero |
| MOUNT | Surface enclosure (metal or plastic) |
| READ RANGE | Up to 3" (7.6 cm) |
| FREQUENCY | 125 kHz |
| OUTPUT | 26-bit Wiegand |
| VOLTAGE | 12VDC ±10%, 200mA |
| INDICATORS | Red/Green LED, Piezo Beeper |
| ENVIRONMENT | Outdoor-rated |
| CONSTRUCTION | Weather-resistant, sealed epoxy |
| APPLICATION | Secure access control on walls, posts, or gates |
| CONTROLLER COMPATIBILITY | All 26-bit Wiegand controllers including 1830 Series |
| CARD COMPATIBILITY | Supports DKProx passive cards, fobs, and keytags |
| INDICATOR TYPE | LED (Red/Green) and audible beep |
| MAINTENANCE | Maintenance-free with no moving parts or batteries |
1815-330 Proximity Reader from Active Pro Aero is a rugged, weather-resistant access control solution pre-mounted in a surface enclosure. Engineered for secure entry points like walls, posts, or gates, it delivers reliable proximity card reading with a read range of up to 3 inches (7.6 cm). This reader is compatible with all 26-bit Wiegand controllers, including Active Pro Aero's 1830 Series, and supports DKProx cards, fobs, and keytags.
Outdoor-Ready and Maintenance-Free
Designed for outdoor use, the 1815-330 features sealed epoxy construction that resists weather and moisture. Its maintenance-free design includes no moving parts or batteries, making it ideal for high-reliability applications. Integrated LED indicators (red/green) and an audible beeper offer user-friendly access feedback.
- Pre-mounted proximity reader in rugged surface enclosure
- Weather-resistant epoxy-sealed construction
- Up to 3″ (7.6 cm) read range
- Supports DKProx passive credentials (cards, fobs, keytags)
- Red/Green LED and audible beep for status indication
- Compatible with all 26-bit Wiegand controllers
- No moving parts or batteries – completely maintenance-free
Ideal for Secure Outdoor Access Points
The 1815-330 operates on 12VDC ±10% at 200mA and communicates via 26-bit Wiegand output. Whether installed on metal or plastic surfaces, it provides dependable performance in demanding outdoor environments. It’s perfect for integrating with commercial gates, intercoms, or pedestrian access systems requiring rugged, contactless identification.
- Gates and pedestrian entrances
- Wall or post-mounted access points
- Outdoor secure facility perimeters
Security professionals trust the 1815-330 Proximity Reader from Active Pro Aero for durable, seamless access control integration in outdoor environments. Available through leading access control system providers in the USA.
Technical Specifications
- Model: 1815-330
- Mount: Surface enclosure (metal or plastic)
- Read Range: Up to 3″ (7.6 cm)
- Frequency: 125 kHz
- Output: 26-bit Wiegand
- Voltage: 12VDC ±10%, 200mA
- Indicators: Red/Green LED, Piezo Beeper
- Environment: Outdoor-rated
