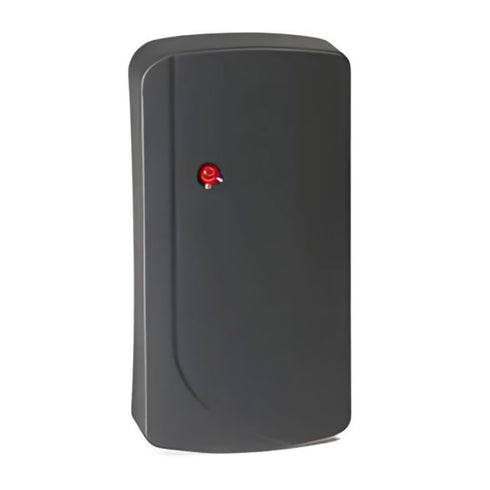

1815-302 Proximity Reader – Compact Reader for 1830-90 Series
1815-302 Proximity Reader is a compact and durable access control component designed for seamless integration with 1830-90 Series entry systems. It provides up to a 2-inch read range, ensuring fast and reliable card detection. The unit’s epoxy-sealed design offers superior vandal resistance and weatherproof performance for both indoor and outdoor installations. Featuring LED indicators and an audible beeper, this maintenance-free reader ensures easy operation and dependable performance in secure entry applications.
- Compact design fits 1830-90 Series entry systems
- Durable epoxy-sealed housing for outdoor use
- Up to 2-inch (5 cm) proximity read range
- LED and beeper indicators for user feedback
- Compatible with standard 26-bit Wiegand controllers
Compact proximity reader engineered specifically for seamless integration with 1830-90 Series entry systems.
Supports up to a 2-inch (5 cm) read range, offering efficient and quick access control.
Sealed in epoxy for exceptional vandal resistance and durability in harsh outdoor environments.
Ideal for flush-mount installations within telephone entry units for a streamlined appearance.
Fully compatible with all 1830 Series and standard 26-bit Wiegand controller systems.
Operates with passive DKProx cards and keytags—no batteries required for functionality.
Features integrated Red/Green LED indicators and an audible beeper for intuitive user feedback.
Maintenance-free design with no moving parts ensures high reliability and long service life.
125 kHz frequency operation, optimized for consistent and secure proximity reading.
Internal mounting within the 1830-90 Series system, enabling clean and concealed installation.
Low-power operation with 12VDC ±10% input and 200mA current draw for energy-efficient performance.
Suitable for both indoor and outdoor environments, ensuring versatile deployment options.
| MODEL NAME | 1815-302 Proximity Reader |
| PRODUCT TYPE | Proximity Reader |
| VENDOR | Active Pro Aero |
| APPLICATION | Designed for 1830-90 Series entry systems |
| READ RANGE | Up to 2" (5 cm) |
| MOUNT | Internal to 1830-90 Series systems |
| FREQUENCY | 125 kHz |
| OUTPUT | 26-bit Wiegand |
| VOLTAGE | 12VDC ±10%, 200mA |
| INDICATORS | Red/Green LED, Piezo Beeper |
| COMPATIBILITY | 1830 Series and all 26-bit Wiegand controllers |
| SUPPORTED CARDS | Passive DKProx cards and keytags |
| ENVIRONMENT | Indoor/Outdoor |
| VANDAL RESISTANCE | Sealed epoxy for durability |
| INSTALLATION TYPE | Flush-mount in telephone entry units |
| OPERATION | Maintenance-free, no moving parts |
1815-302 Proximity Reader from Active Pro Aero is a compact, durable reader designed to integrate seamlessly with the 1830-90 Series entry systems. With up to a 2-inch (5 cm) read range and sealed epoxy construction, it delivers reliable performance in both indoor and outdoor environments. Ideal for flush-mount applications, this reader supports 26-bit Wiegand controllers and passive DKProx cards and keytags without requiring batteries.
Compact and Durable for Seamless Integration
The 1815-302 is built for vandal resistance and outdoor durability, making it a dependable choice for access control in harsh conditions. Its internal mounting design allows for streamlined integration into 1830-90 Series telephone entry systems. Featuring LED indicators and an audible beeper, the unit ensures user feedback for every scan and operates maintenance-free with no moving parts.
- Up to 2-inch (5 cm) read range
- Sealed epoxy for vandal resistance
- Ideal for flush-mount applications
- Supports DKProx passive cards and keytags
- Compatible with all 26-bit Wiegand controllers
- Red/Green LED indicator and audible beeper
- Maintenance-free design with no moving parts
Technical Specifications
- Model: 1815-302
- Mount: Internal to 1830-90 Series systems
- Read Range: Up to 2″ (5 cm)
- Frequency: 125 kHz
- Output: 26-bit Wiegand
- Voltage: 12VDC ±10%, 200mA
- Indicators: Red/Green LED, Piezo Beeper
- Environment: Indoor/Outdoor
