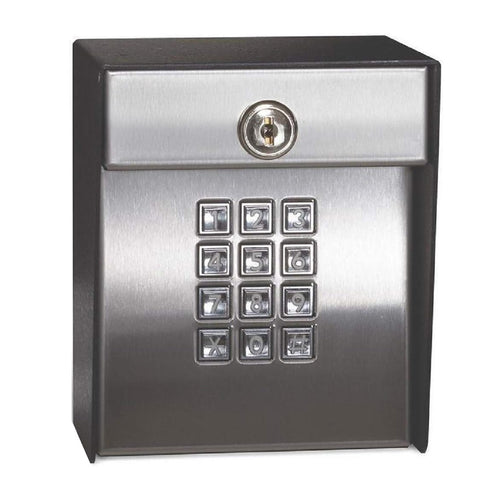

1506 Digital Keypad for High-Capacity Access Control
The 1506 Digital Keypad offers reliable and secure access control for large facilities requiring multiple user codes and high-capacity entry management. Designed for durability, it features a vandal-resistant stainless steel faceplate, LED backlit keypad, and dual relay outputs. The unit supports up to 1000 programmable codes with EEPROM memory to retain data during power loss. Compatible with time zone inputs and secondary keypads, this versatile keypad is ideal for apartment complexes, gated communities, industrial sites, and parking areas requiring advanced access control.
- Stores up to 1000 4-digit entry codes for multiple users
- Durable stainless steel vandal-resistant faceplate
- Dual Form C relay outputs with 30V 1A contacts
- LED backlit keypad ensures nighttime visibility
- Supports time zone inputs and secondary keypad integration
Stores up to 1000 individual 4-digit user entry codes, allowing extensive user access management.
Includes six programmable 5-digit master entry codes for enhanced control and administrator access.
Features programmable hold-open codes to keep doors unlocked during designated times.
Equipped with dual Form C relay outputs rated at 30V 1A for flexible device control integration.
Constructed with a vandal-resistant stainless steel faceplate to withstand harsh environments and tampering.
Supports a secondary keypad connection for dual-entry access points or expanded control setups.
LED backlit keypad ensures clear visibility for users in low-light or nighttime conditions.
EEPROM memory retains all programmed codes during power loss, ensuring uninterrupted security.
Supports time zone input configurations for scheduled access control based on specific time windows.
Available in both surface and flush mount models to suit various installation requirements.
Operates on 16 VAC power input, standard for access control systems.
Ideal for apartment complexes, gated communities, commercial sites, and high-security entry points.
Compatible with models 1506-086, 1506-096, 1504-086, and 1504-096 for versatile deployment.
| MODEL NAME | 1506 Digital Keypad |
| PRODUCT TYPE | Keypads |
| VENDOR | Active Pro Aero |
| CODE STORAGE | Stores up to 1000 4-digit entry codes |
| PROGRAMMABLE CODES | Six programmable 5-digit entry codes |
| HOLD-OPEN FEATURE | Programmable hold-open codes |
| RELAY OUTPUT | Dual Form C relay outputs (30V 1A) |
| CONSTRUCTION | Vandal-resistant stainless steel faceplate |
| SECONDARY KEYPAD | Secondary keypad capability |
| BACKLIGHT | LED backlit keypad for visibility |
| MEMORY | EEPROM memory retains codes during power loss |
| TIME ZONE SUPPORT | Time zone input support |
| MOUNTING OPTIONS | Surface or flush mount models available |
| APPLICATION | Apartment Complexes, Gated Communities, Commercial & Industrial Sites, Parking Facilities, High-Security Entry Points |
| POWER SUPPLY | 16 VAC |
| RELAY TYPE | 2x Form C, 30V 1A contacts |
| MODEL VARIANTS | 1506-086, 1506-096, 1504-086, 1504-096 |
1506 Digital Keypad for High-Capacity Access Control from Active Pro Aero is designed for secure and versatile entry management in residential and commercial settings. Capable of storing up to 1000 user codes and offering dual Form C relays, this keypad is ideal for high-security access points such as apartment complexes, gated communities, and industrial facilities.
Advanced Access Features and Durability
The 1506 keypad supports six programmable 5-digit codes and dedicated hold-open codes, enhancing control flexibility. Built with a vandal-resistant stainless steel faceplate and LED backlighting, it ensures reliability and visibility in all lighting conditions. Time zone inputs and compatibility with secondary keypads provide further customization for multi-zone access control.
- Stores up to 1000 4-digit entry codes
- Six programmable 5-digit codes and hold-open functionality
- Dual Form C relay outputs (30V 1A contacts)
- Vandal-resistant stainless steel construction
- LED backlit keypad for night-time visibility
- Secondary keypad compatibility
- EEPROM memory retains codes during power loss
Flexible Mounting and Application Versatility
Whether for surface or flush mounting, the 1506 series adapts to various installation requirements. It’s well-suited for integration with security gates, commercial entrances, and remote-controlled access systems. Security professionals will appreciate its dependability and ease of programming.
- Apartment complexes and gated communities
- Commercial and industrial entry points
- Parking structures and facility perimeters
- High-security access zones
The 1506 Digital Keypad from Active Pro Aero delivers robust, user-friendly access control with high storage capacity and resilient construction. A trusted choice for professionals looking to secure modern entry systems with precision and reliability.
Technical Specifications
- Models: 1506-086, 1506-096, 1504-086, 1504-096
- Power Input: 16 VAC
- Relays: 2x Form C, 30V 1A contacts
- Mounting Options: Surface or Flush
- Memory: EEPROM retains codes on power loss
- Input Support: Time zone input compatible
