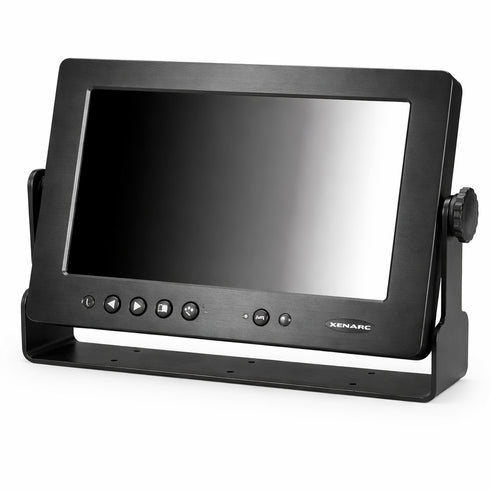

1022TSH 10.1 Inch Sunlight Readable Touchscreen Monitor HDMI VGA DVI AV
This 10.1 inch sunlight readable touchscreen monitor delivers exceptional brightness and durability for demanding environments. Featuring a 1200 nit display with anti reflective coating, it ensures clear visibility even in direct sunlight. The rugged aluminum housing and wide voltage support make it ideal for industrial, transportation, and outdoor applications. With multiple input options and reliable resistive touch technology, it provides flexible integration for control systems, kiosks, and mobile deployments requiring consistent performance.
- 1200 nit high brightness display for outdoor visibility
- Supports HDMI VGA DVI and AV inputs
- Durable aluminum housing for rugged environments
- Wide voltage range from 9V to 36V DC
- 5 wire resistive touchscreen with USB interface
Delivers exceptional 1,200 NIT brightness with long-life LED backlight, ensuring clear visibility even under direct sunlight for outdoor applications.
Features a wide viewing angle IPS panel (170° horizontal and vertical) for consistent image clarity from multiple perspectives.
Incorporates an advanced anti-reflective coating to reduce glare and enhance readability in bright environments.
Equipped with a 5-wire resistive touchscreen, providing accurate and reliable touch input for industrial and commercial use.
Supports multiple video inputs including HDMI, VGA, DVI (via adaptor), and dual AV inputs for versatile connectivity.
Includes automatic backlight adjustment using a built-in ambient light sensor to optimize brightness and power efficiency.
Offers multi-monitor touchscreen capability, allowing simultaneous operation of multiple displays through USB interface.
Built with a rugged aluminum housing and solid capacitors to ensure durability in harsh operating conditions.
Supports wide voltage input range (9V to 36V DC), making it ideal for automotive, marine, and industrial applications.
Provides high-performance image processing with AISS (Advanced Image Scaling and Shaping) for superior video quality.
Features auto power-on upon signal detection and last input memory for seamless operation and convenience.
Designed with VESA 75mm mounting and flexible stand options including 360° copper stand and U-shape mount.
Operates reliably in extreme temperatures ranging from -20°C to 70°C, suitable for demanding environments.
Includes built-in speakers, multiple audio inputs, IR remote control, and RS232 control via USB for enhanced functionality.
Certified for automotive and industrial use with FCC, CE, E13 compliance and backed by a 3-year warranty for long-term reliability.
| MODEL NAME | 1022TSH Sunlight Readable Touchscreen Monitor |
| SCREEN SIZE | 10.1" Diagonal (16:9) |
| TOUCHSCREEN TYPE | 5-Wire Resistive |
| PHYSICAL RESOLUTION | 1280 x 800 |
| SUPPORTED RESOLUTION | 640 x 480 ~ 1920 x 1080 |
| DOT RESOLUTION | 3,072,000 dots |
| BRIGHTNESS | 1200 cd/m² |
| CONTRAST RATIO | 800:1 |
| VIEWING ANGLE | 170° Horizontal / 170° Vertical |
| RESPONSE TIME | 10/15 ms |
| DISPLAY PANEL | IPS LCD |
| ASPECT RATIO | 16:9 |
| BACKLIGHT TYPE | LED |
| SUNLIGHT READABLE | Yes (1200 NIT) |
| ANTI-REFLECTIVE COATING | Yes |
| AMBIENT LIGHT SENSOR | Yes |
| AUTO BACKLIGHT ADJUSTMENT | Yes |
| VIDEO INPUTS | HDMI, VGA, AV x2 |
| DVI SUPPORT | Via HDMI Adapter |
| AUDIO INPUT | 3 Channels |
| BUILT-IN SPEAKERS | Yes |
| TOUCH INTERFACE | USB |
| MULTI-MONITOR SUPPORT | Yes |
| IMAGE PROCESSOR | High Performance |
| AISS TECHNOLOGY | Advanced Image Scaling & Shaping |
| CONTROL INTERFACE | USB (RS232 Commands) |
| IR REMOTE CONTROL | Included |
| POWER INPUT | DC 9V ~ 36V |
| POWER SUPPLY | DC 12V |
| POWER CONSUMPTION | ≤ 20W |
| AUTO POWER ON | Yes (Signal Detection) |
| LAST STATE MEMORY | Yes |
| VERTICAL FLIP | Supported |
| BUTTON LOCK FUNCTION | Yes |
| AV AUTO SWITCHING | Yes (Backup Camera) |
| MOUNTING OPTIONS | VESA 75mm / U-Shape / Copper Stand |
| CONNECTOR TYPE | 26-Pin Heavy-Duty Locking |
| ENCLOSURE MATERIAL | Aluminum |
| FRONT PANEL | Anodized Aluminum |
| BUILD TYPE | Ruggedized |
| OPERATING TEMPERATURE | -20°C ~ 70°C |
| STORAGE TEMPERATURE | -30°C ~ 80°C |
| VIBRATION RESISTANCE | 5-500Hz, 1.0Grms |
| SHOCK RESISTANCE | 10G Peak (11ms) |
| MTBF | > 55,000 Hours |
| DIMENSIONS | 265 x 186 x 33.2 mm |
| WEIGHT | 3.3 lb |
| CERTIFICATIONS | FCC, CE, E13 |
| AUTOMOTIVE CERTIFICATION | E-Mark |
| ENVIRONMENTAL COMPLIANCE | ROHS, REACH, ECE R118-03 |
| APPLICATION | Industrial, Automotive, Marine, POS, IoT |
| INSTALLATION TYPE | Desktop / Mountable |
| TOUCH FUNCTION | Mouse Control / On-screen Keyboard |
| OPERATING SYSTEM SUPPORT | Multi-OS Compatible |
| CABLE OPTIONS | Multiple Length Configurations |
| ACCESSORIES | Adapter, Cable, Mount, Stylus |
| WARRANTY | 3 Years |
| PIXEL GUARANTEE | 30-Day No Dead Pixel |
10.1" Sunlight Readable Touchscreen LCD Monitor (Model 1022TSH) from Alfa Iris is a high-performance display solution engineered for demanding industrial, commercial, and outdoor environments. Featuring an ultra-bright 1200 NIT LED backlight and advanced anti-reflective coating, this monitor ensures exceptional visibility even under direct sunlight. Its rugged aluminum construction and wide operating voltage range make it ideal for transportation, automation, and field applications.
Engineered for Extreme Visibility and Durability
This 10.1" touchscreen monitor utilizes proprietary brightness enhancement technology combined with an IPS panel to deliver wide viewing angles and consistent image clarity. The integrated ambient light sensor automatically adjusts brightness for optimal viewing in changing lighting conditions. Built with industrial-grade components, the enclosure is fully aluminum, ensuring long-term durability in harsh environments.
- 1200 NIT sunlight-readable LED display
- Anti-reflective coating for enhanced outdoor visibility
- Wide viewing angle IPS panel (170° H / 170° V)
- Rugged anodized aluminum housing
- Operating temperature range from -20°C to 70°C
Flexible Touchscreen Integration and Connectivity
The integrated 5-wire resistive touchscreen connects via USB and supports multi-monitor configurations, allowing simultaneous touchscreen operation across multiple displays. With versatile input options including HDMI, VGA, DVI (via adapter), and AV, this monitor easily integrates into a wide range of systems. Additional features such as RS232 control via USB and auto power-on enhance usability for system integrators.
- 5-wire resistive touchscreen with USB interface
- HDMI, VGA, DVI (adapter), and AV inputs
- Multi-monitor touchscreen support
- RS232 control via USB
- Auto power-on and signal detection
Designed for Versatile Industrial Applications
Built to meet the needs of integrators and engineers, this monitor is suitable for a wide range of applications including transportation systems, factory automation, kiosks, and broadcasting. Features like backup camera auto-switching, vertical image flip, and durable mounting options make it highly adaptable in dynamic environments.
- Transportation: fleet management, marine, mining, in-vehicle systems
- Industrial automation and machinery control
- Outdoor kiosks, POS systems, and digital signage
- Broadcasting and mobile production setups
- IoT, medical, and data monitoring systems
This rugged 10.1" touchscreen monitor delivers high brightness, reliability, and flexible integration, making it an ideal choice for professionals requiring dependable performance in challenging environments. Backed by a 3-year warranty and engineered for long operational life, it is a trusted solution for industrial display needs.
Technical Specifications
- Model: 1022TSH
- Screen Size: 10.1" (16:9)
- Resolution: 1280 x 800 (supports up to 1920 x 1080)
- Brightness: 1200 cd/m²
- Contrast Ratio: 800:1
- Touchscreen: 5-wire resistive (USB)
- Inputs: HDMI, VGA, DVI (via adapter), AV x2
- Power Input: DC 9V – 36V (12V typical)
- Power Consumption: ≤ 20W
- Operating Temperature: -4°F to 158°F (-20°C to 70°C)
- Storage Temperature: -22°F to 176°F (-30°C to 80°C)
- Mounting: VESA 75mm, U-shape or copper stand options
- Construction: Full aluminum enclosure
- MTBF: > 55,000 hours
- Certifications: FCC, CE, E13, ROHS, REACH, ECE R118-03
Related products
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare
The LT UVT 26A 3001 UHF tamper paper label is designed for reliable long range vehicle identification and secure access management applications. Mounted on the inner side of a vehicle windshield, the label works with compatible readers to verify authorized...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

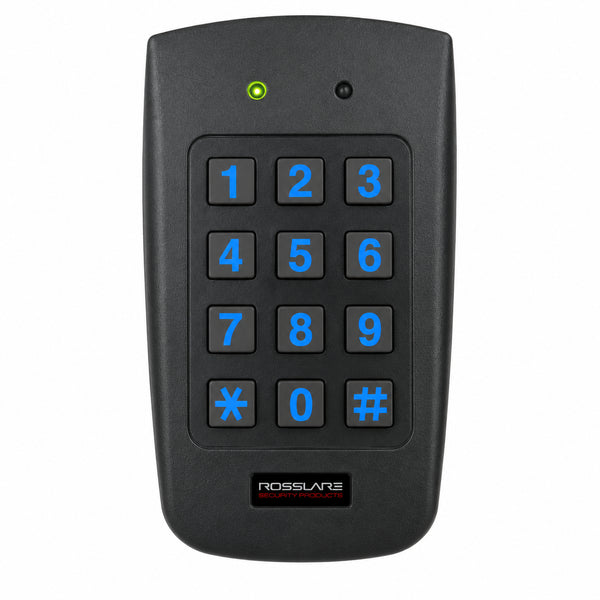

Professional standalone access control reader designed for secure indoor and outdoor entry management applications. Supports 125kHz proximity credentials with keypad authentication for enhanced security control. Built with weather resistant IP65 protection, illuminated piezoelectric keypad, and multi format compatibility for commercial...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

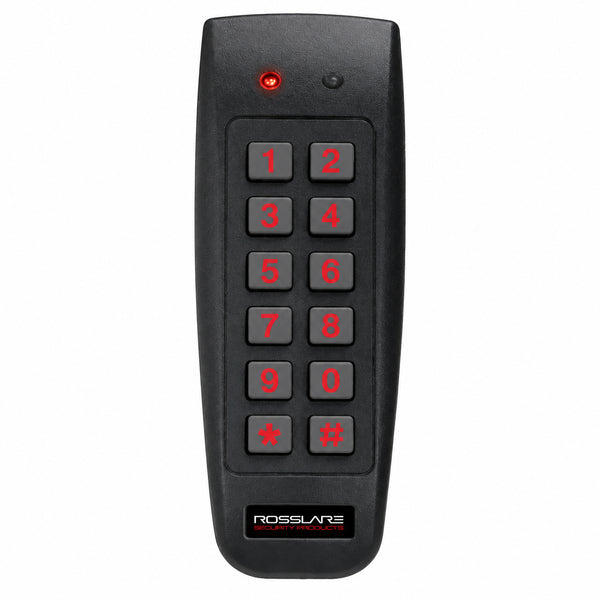

This outdoor standalone access controller delivers reliable entry management for commercial and industrial applications. Designed for harsh environments, it supports up to 500 users with programmable PIN authentication and proximity credential support. The rugged sealed enclosure with illuminated keypad enhances...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

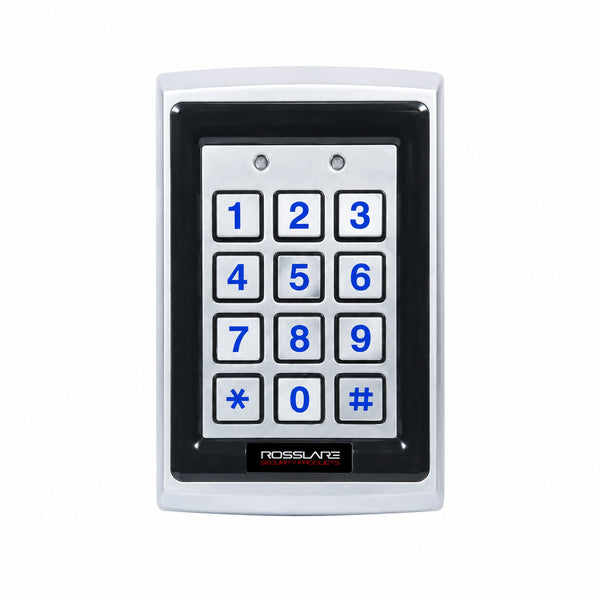

The AYCQ60 Convertible Anti Vandal Backlit Prox and PIN Reader delivers secure access control for commercial and industrial environments. Designed for indoor and outdoor operation, this reader supports multiple proximity card formats and PIN authentication options for enhanced security. The...
SKU:
AVAILABILITY: Out of Stock
PRODUCT TYPE: Access Control
VENDOR: Rosslare

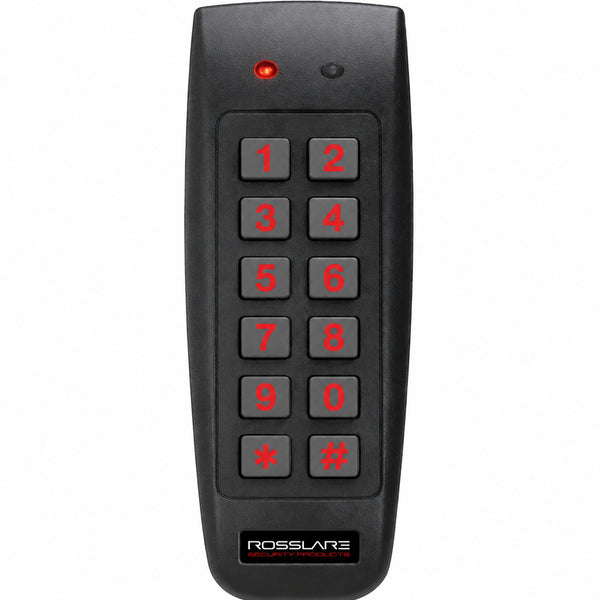

The AC G44 outdoor standalone access controller delivers reliable entry management for commercial and industrial security applications. Designed for harsh environments, this weather resistant unit supports PIN and proximity authentication with storage for up to 500 users. The illuminated keypad...
