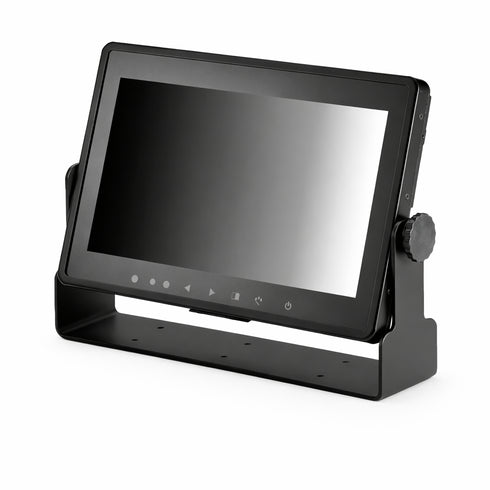

1029GNH 10.1" IP67 Waterproof Sunlight Readable Touchscreen Monitor

1029GNH 10.1" IP67 Waterproof Sunlight Readable Touchscreen Monitor from Alfa Iris is engineered for high-performance operation in rugged and demanding environments. Featuring an ultra-bright 1200 NIT display and IP67 / NEMA6P waterproof rating, this industrial-grade monitor delivers exceptional visibility and durability in outdoor, marine, and mobile applications. With optical bonding technology, it enhances clarity, reduces glare, and prevents fogging or condensation in humid conditions. :contentReference[oaicite:0]{index=0}

Rugged Design with Superior Visibility

The 1029GNH is built with a rugged aluminum housing and fully sealed connectors, ensuring protection against water, dust, and harsh environmental conditions. Its optically bonded capacitive touchscreen improves contrast and durability while enabling precise, responsive multi-touch interaction—even through protective layers. The integrated ambient light sensor automatically adjusts brightness for optimal viewing in any lighting condition.

• IP67 / NEMA6P rated for full waterproof and dustproof protection
• 1200 NIT sunlight readable display with LED backlight
• Optically bonded screen for enhanced clarity and anti-fog performance
• Projected capacitive multi-touch interface (USB)
• Wide viewing angle IPS panel (170° H/V)

Versatile Connectivity and Integration

Designed for flexibility, the 1029GNH supports multiple input options including HDMI, VGA, DVI (via adapter), and AV, making it compatible with a wide range of systems. It supports resolutions up to 1920x1080 and integrates easily into industrial, automotive, marine, and kiosk environments. With features like auto power-on, input memory, and RS232 control via USB, it provides seamless system integration.

• HDMI, VGA, DVI (adapter), and dual AV inputs
• Supports up to 1080P resolution (native 1280x800)
• Auto power-on and last input memory
• RS232 control via USB for advanced integration
• Multi-monitor touchscreen support

Built for Extreme Applications

With an extended operating temperature range and wide voltage input (9V–36V DC), this monitor is ideal for harsh and mobile environments. It meets automotive and industrial standards including FCC, CE, E13 certification, and features shock and vibration resistance. From fleet management and marine systems to factory automation and outdoor kiosks, the 1029GNH delivers reliable performance.

• Operating temperature: -20°C to 70°C (-4°F to 158°F)
• Shock and vibration resistant (IEC standards compliant)
• Wide voltage input (9V–36V DC)
• IK08 impact resistant rugged aluminum housing
• Ideal for transportation, industrial, POS, and IoT applications

For professionals seeking a rugged, sunlight-readable waterproof touchscreen monitor, the 1029GNH from Alfa Iris offers unmatched durability, clarity, and integration flexibility for mission-critical environments.

Technical Specifications

• Model: 1029GNH
• Screen Size: 10.1" (16:9)
• Resolution: 1280 x 800 (supports up to 1920 x 1080)
• Brightness: 1200 cd/m²
• Contrast Ratio: 800:1
• Viewing Angle: 170° Horizontal / Vertical
• Touch Interface: USB (Capacitive Multi-Touch)
• Inputs: HDMI, VGA, DVI (via adapter), AV x2
• Power Input: DC 9V–36V (12V typical)
• Power Consumption: ≤ 20W
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -30°C to 80°C
• Mounting: VESA 75mm, U-bracket, optional panel mount
• Construction: Rugged aluminum, IP67 waterproof
• Certifications: FCC, CE, E13, ROHS, REACH
• MTBF: > 55,000 hours
• Dimensions: 265.7 x 178.2 x 32.2 mm
• Weight: 3.64 lbs
