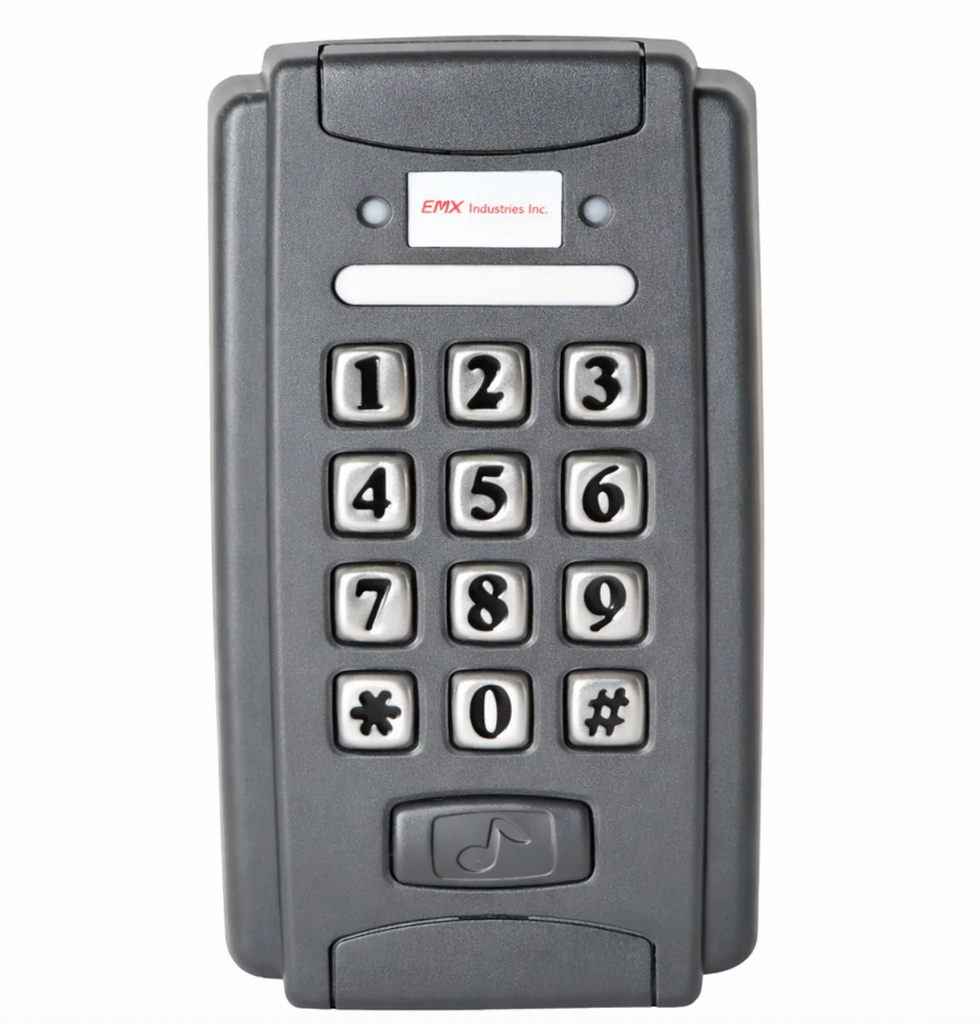

PRX 320 Waterproof RFID Keypad Reader USA

RFID keypad reader technology plays an important role in modern access control systems, especially for outdoor gates and building entry points. The PRX 320 Waterproof RFID Keypad Reader is designed to provide secure credential authentication for gates, doors, and controlled access areas. With its durable weather-resistant housing and flexible access modes, this unit delivers reliable security performance for residential, commercial, and light industrial environments.

Flexible Access Control for Gates and Entry Points

This device combines a proximity card reader with a keypad interface, giving property owners multiple authentication options. Users can access secured areas with proximity cards, PIN codes, or a combination of both depending on system configuration. Security installers deploying gate access control systems or door entry systems benefit from the flexibility this reader provides when managing different user types and security requirements.

Designed for reliable outdoor operation, the PRX 320 includes waterproof construction and low power consumption, making it suitable for both traditional electrical installations and solar-powered gate systems. Businesses and property managers looking for dependable RFID gate access control solutions can integrate this device into automatic gate operators and entry management systems with ease.

Waterproof RFID Keypad Reader for Outdoor Access Control

The PRX 320 RFID keypad reader is engineered specifically for outdoor access control environments where durability and flexibility are essential. Its waterproof housing protects internal electronics from rain, dust, and environmental exposure, ensuring stable operation at gates, exterior doors, and perimeter access points.

One of the key advantages of this unit is its ability to support multiple authentication methods. The reader can be programmed to operate in four different access modes depending on the security requirements of the installation. These options allow property managers and installers to customize the level of authentication needed for specific entry points.

Flexible Access Control with Multiple Entry Modes

Access control systems often require different authentication methods depending on the level of security needed. The PRX 320 supports four programmable entry modes that allow administrators to configure access control according to site requirements.

These modes allow users to authenticate using proximity cards, keypad PIN codes, or a combination of both. This flexibility makes the reader suitable for residential communities, office buildings, warehouses, and automated gate installations.

Access Mode Highlights

• Card only access using proximity credentials
• Keypad only entry using a four-digit PIN
• Card plus PIN for two-factor authentication
• Card or PIN for flexible user access

The device supports up to 2000 proximity cards and 8 keypad user codes, allowing administrators to manage multiple users across residential or commercial sites.

Designed for Solar and Low Power Installations

Low power consumption is essential for many gate automation systems, particularly those powered by solar energy. The PRX 320 operates with efficient power usage, making it suitable for installations where minimizing energy consumption is important.

With standby power consumption around 90 mA and activated consumption around 110 mA, the device provides reliable performance without excessive power requirements. This makes it a strong option for solar gate access control systems and remote installations where energy resources are limited.

Reliable Integration with Gate and Door Automation

The PRX 320 is designed for straightforward integration with automatic gate operators and door strike systems. Its built-in relay contact allows the reader to trigger entry mechanisms when authorized credentials are detected. This functionality makes it compatible with a wide range of automatic gate control systems used in residential communities, commercial facilities, and industrial sites.

Clear LED status indicators provide visual feedback for system activity. The red indicator shows power status, green confirms successful credential authentication, yellow flashing signals denied access, and solid yellow indicates alarm conditions. These indicators help installers and users quickly understand system status during daily operation.

The unit also includes a doorbell annunciator contact, adding another layer of functionality for visitor notifications or integration with building communication systems.

Common Installation Applications

• Automatic driveway and security gates
• Residential community access control
• Commercial parking gate entry systems
• Industrial facility perimeter access points
• Warehouse and logistics facility gates

Technical Reliability for Professional Installers

Professional installers require hardware that is both reliable and easy to integrate with existing security infrastructure. The PRX 320 operates on a standard 12 VDC power supply and includes a 3A relay contact rating for dependable connection with gate operators or electric strikes.

Advanced design features also protect system programming through secure passcode configuration. This helps prevent unauthorized changes to system settings and maintains access control integrity across installations.

Technical Specifications

• Model: PRX 320 (EMX-5402-1)
• Technology: Proximity RFID reader with keypad
• Read range: up to 5 inches
• User capacity: 2000 proximity cards
• Keypad capacity: 8 PIN codes
• Operating voltage: 12 VDC
• Power consumption: 90 mA standby, 110 mA activated
• Relay contact rating: 3A / 12VDC
• Housing: waterproof outdoor design
• Certification: CE and ROHS compliant
• Warranty: 2-year limited manufacturer warranty

Why Security Installers Choose Alfa Iris

Alfa Iris supplies professional security hardware including access control systems, gate automation equipment, and surveillance solutions. By offering reliable devices designed for real-world installations, the company supports contractors and system integrators building secure entry systems for residential and commercial properties.

Products like the PRX 320 waterproof RFID keypad reader help installers deploy dependable gate access control systems that combine flexibility, durability, and ease of integration.

Summary

The PRX 320 RFID keypad reader provides secure and flexible access control for gates and doors in outdoor environments. Supporting up to 2000 proximity cards, multiple authentication modes, and low power consumption, the device is well suited for residential communities, commercial facilities, and automated gate installations. Its waterproof construction and relay integration make it a reliable solution for modern gate and door entry systems.
