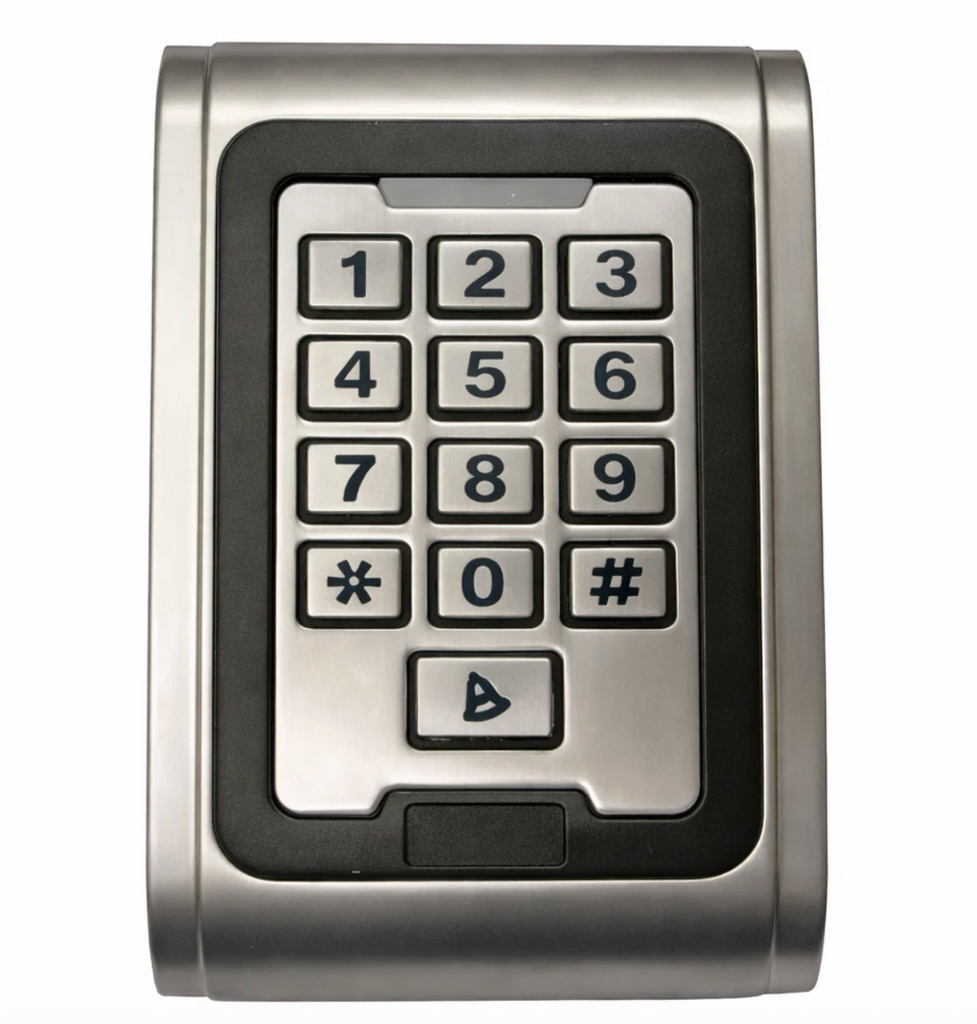

CR 2000 RFID Keypad Access Control Reader USA

RFID keypad access control reader systems are widely used to secure entry points for buildings, gates, and controlled areas. The CR 2000 RFID Proximity Reader with Keypad provides a reliable and flexible solution for managing authorized access. Designed for both indoor and outdoor environments, this reader combines RFID smart card technology with PIN authentication to create a secure and convenient entry system.

Flexible Access Control for Doors and Gates

Security installers and facility managers often require access control devices that support multiple authentication methods and integrate easily with existing systems. The CR 2000 offers both card and keypad access options, allowing administrators to configure entry based on security needs. Whether used for office doors, warehouse entrances, or automated gates, this reader provides dependable credential verification and user management.

With support for up to 2000 users, the CR 2000 is suitable for residential communities, commercial buildings, and industrial facilities. Its rugged waterproof metal housing ensures durability in challenging environments, while low power consumption helps maintain efficient operation for long-term installations.

RFID Keypad Reader for Secure Door and Gate Access

The CR 2000 RFID keypad access control reader uses RFID induction technology to read contactless Mifare smart cards. Users can present a compatible card or enter a personal PIN code to gain access, depending on system configuration. This dual authentication capability makes the reader suitable for sites that require flexible security levels.

For higher security environments, administrators can require both card and PIN verification before granting access. Alternatively, facilities can allow either credential type depending on user roles or operational requirements. This flexibility allows organizations to create customized door access control systems that match their security policies.

Flexible User Management and Authentication

Access control systems must manage multiple users efficiently while maintaining security standards. The CR 2000 supports up to 2000 users, allowing organizations to manage employee access, contractor entry, and visitor credentials. Each user can be assigned a smart card, a personal PIN code, or both.

Administrators can also delete lost or compromised cards directly through the keypad without disrupting system operation. This feature simplifies user management and helps maintain strong security across large installations.

Access Control Highlights

• Supports up to 2000 authorized users
• Card access using Mifare smart cards
• PIN entry via backlit keypad
• Card and PIN authentication options
• User credential removal via keypad programming

Durable Waterproof Design for Outdoor Environments

Entry systems installed outdoors must withstand weather exposure and potential tampering. The CR 2000 features a waterproof metal housing designed to resist rain, dust, and environmental wear. This rugged construction makes it suitable for exterior doorways, parking gates, and perimeter security installations.

The built-in tamper alarm adds another layer of protection. If the device is interfered with or removed from its mounting surface, the system can trigger an alert to help prevent unauthorized access attempts.

Integration with Professional Access Control Systems

The CR 2000 reader includes both Wiegand output and relay output, allowing integration with a wide range of access control controllers and monitoring systems. This flexibility enables the device to function either as a stand-alone access control unit or as part of a larger integrated security infrastructure.

Facilities that use access control and CCTV integration can combine credential authentication with video surveillance to improve monitoring and incident investigation. When a user presents a card or enters a PIN, administrators can review camera footage associated with the entry event for additional security verification.

Businesses deploying RFID door access control systems benefit from this type of integration because it strengthens overall security visibility while maintaining efficient entry management.

Common Installation Applications

• Commercial office building access control
• Automatic gates and barrier arm entry systems
• Residential community security gates
• Warehouse and industrial facility entry doors
• Parking garage access management

Technical Performance for Installers

Professional installers often look for access control hardware that provides reliable performance and straightforward integration. The CR 2000 operates on a flexible 9–28 VDC power input and consumes less than 30 mA in standby mode, making it energy efficient and compatible with many existing power supplies.

The adjustable activation time allows installers to configure relay response durations from 0 to 99 seconds, ensuring compatibility with various door locks, electric strikes, and gate operators. This flexibility allows the reader to support different types of entry systems.

Technical Specifications

• Model: EMX-5401-1 CR 2000
• Technology: RFID smart card reader with keypad
• User capacity: up to 2000 users
• Card type: Mifare contactless smart cards
• Read range: 1.1″ to 3.1″
• Operating voltage: 9–28 VDC
• Standby current: under 30 mA
• Output: Wiegand and relay
• Housing: waterproof metal enclosure
• Operating temperature: −13°F to 140°F
• Additional features: tamper alarm and short circuit protection

Why Security Professionals Choose Alfa Iris

Alfa Iris provides professional security hardware for installers, integrators, and contractors building reliable access control systems. By offering credential readers, gate automation devices, and surveillance solutions, the company supports modern security deployments across residential and commercial environments.

Devices such as the CR 2000 RFID keypad access control reader provide dependable credential authentication and flexible installation options, helping organizations implement secure entry systems that can scale with their operational needs.

Summary

The CR 2000 RFID keypad access control reader offers a reliable solution for managing secure entry at doors, gates, and barrier systems. With support for up to 2000 users, smart card and PIN authentication, waterproof metal construction, and Wiegand integration, it provides both flexibility and durability for modern access control installations. Businesses seeking efficient and secure credential management can rely on the CR 2000 to support their access control infrastructure.
