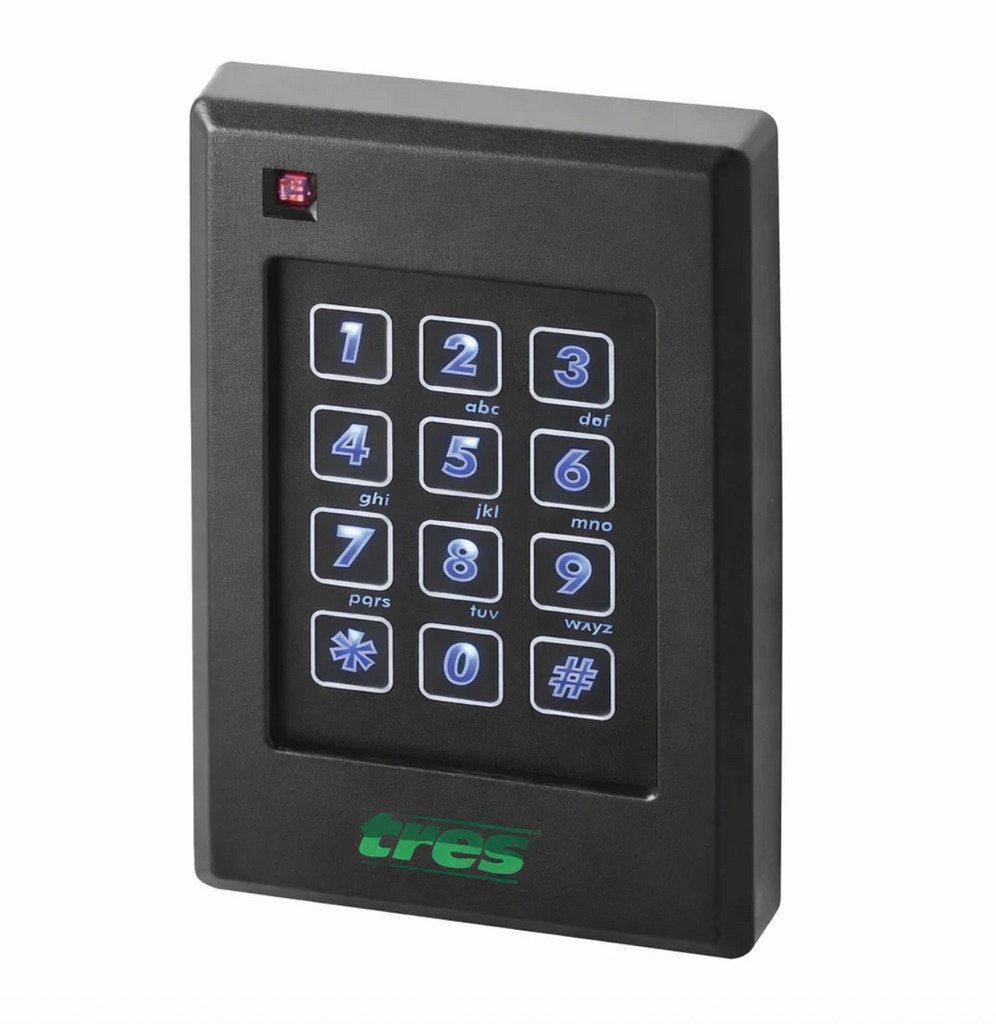

Proximity Reader and Keypad for Secure Access Control

Proximity reader and keypad devices play a critical role in modern access control systems by combining contactless credential verification with PIN-based authentication. The TRES-100-P-640-HA from EMX, available through Active-Pro Aero, is designed to deliver dependable RFID access control with keypad functionality for enhanced security and user flexibility.

Why Choose a Proximity Reader and Keypad

Traditional card-only access control systems provide reliable security, but combining a proximity reader and keypad adds an additional layer of authentication. By requiring both a credential and a PIN code, organizations can significantly increase protection against unauthorized access.

This approach is often used in areas where higher security is required, such as server rooms, laboratories, restricted office areas, and industrial control zones. With the integrated keypad on the TRES-100-P-640-HA, administrators can implement multi-factor authentication without installing additional hardware.

Designed for Commercial Access Control Systems

The TRES-100-P-640-HA proximity reader and keypad integrates seamlessly with access control systems using the widely adopted Wiegand communication protocol. This makes it compatible with a large variety of controllers and door management platforms used in commercial and industrial environments.

Its support for multiple proximity card technologies, including Pyramid Series and selected HID and AWID 125 kHz credentials, provides flexibility for system upgrades and expansions. Businesses that already operate legacy RFID card systems can integrate this device without replacing their entire infrastructure.

For contractors and system integrators, the reader's compatibility with standard controllers simplifies installation and helps maintain consistency across multi-site security projects.

Reliable Indoor and Outdoor Performance

Security hardware installed at building entrances must perform reliably in challenging conditions. The TRES-100-P-640-HA is engineered with sealed electronics and an IP67-rated enclosure to protect against dust, moisture, and harsh weather environments.

This durable construction allows the device to operate in outdoor access points, industrial environments, and exposed entryways where environmental protection is critical. Its compact form factor also allows mounting on mullions, door frames, and other narrow surfaces.

Benefits of keypad-enabled access readers

• Improved security through PIN + card authentication
• Flexible user credential management
• Reduced risk of lost or stolen card misuse
• Convenient operation for employees and contractors

Integration with Video Surveillance Systems

Modern security systems often combine access control with surveillance technology. Integrating a proximity reader and keypad with IP camera systems allows organizations to verify access events visually and maintain detailed security records.

For example, when a user presents a card and enters a PIN, the access control system can trigger a camera recording at the same time. This integration improves accountability and provides valuable evidence during incident investigations.

When deployed with modern video management platforms, businesses can monitor entry points in real time while maintaining centralized control over door permissions and credential activity.

Technical Specifications Overview

Understanding the technical capabilities of a proximity reader and keypad helps installers design systems that perform consistently in real-world environments. The TRES-100-P-640-HA offers reliable electrical performance and environmental durability for professional deployments.

• Technology: 125 kHz proximity RFID
• Read range: Up to 7 inches (176 mm)
• Communication: Wiegand interface
• Power input: +5 to 16 VDC
• Current draw: 70 mA typical, 110 mA peak
• Dimensions: 3″W x 4.6″H x 0.75″D
• Environmental rating: IP67
• Certifications: FCC, ICC, CE, C-Tick, UL Standard 294

Ideal Applications for the TRES-100-P-640-HA

Organizations that require a combination of convenience, security, and durability often choose a proximity reader and keypad solution like the TRES-100-P-640-HA.

• Commercial office buildings
• Industrial manufacturing facilities
• Warehouses and logistics centers
• Educational campuses
• Government and municipal buildings

For businesses deploying access control systems across multiple facilities, standardized devices like this reader simplify installation, training, and long-term maintenance.

Summary

The TRES-100-P-640-HA proximity reader and keypad provides reliable RFID access control with enhanced security through PIN authentication. Its Wiegand compatibility, support for multiple credential technologies, and IP67 environmental protection make it well suited for commercial and industrial access control deployments.

For system integrators and security professionals, this device offers a practical balance of durability, flexibility, and advanced access management capabilities.
